15,000 lb Trailer Axle Hub & Drum Assembly – 8-Lug, 275 mm Bolt Pattern

Description

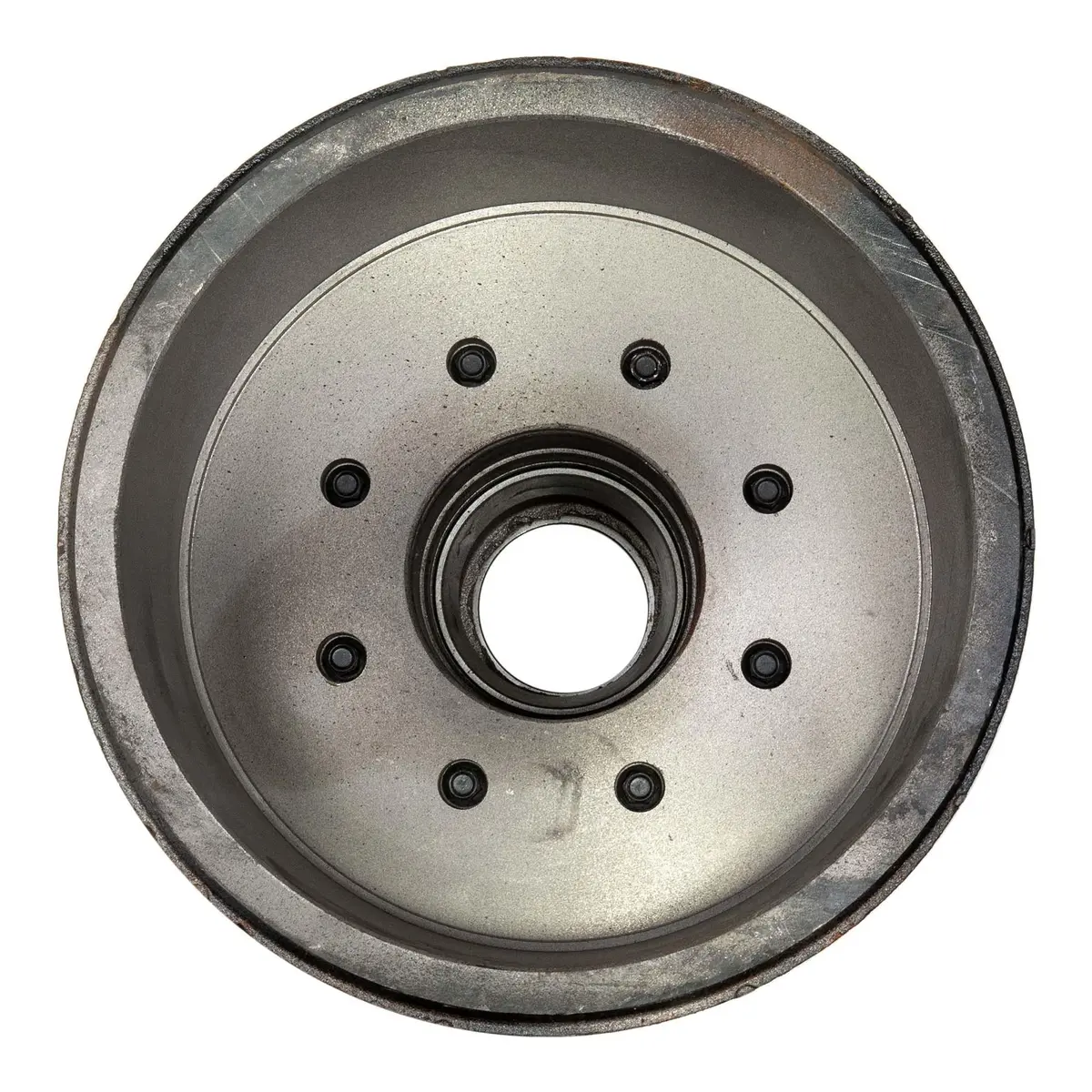

Hub/Drum Only Specs:

• Hub/Drum Only

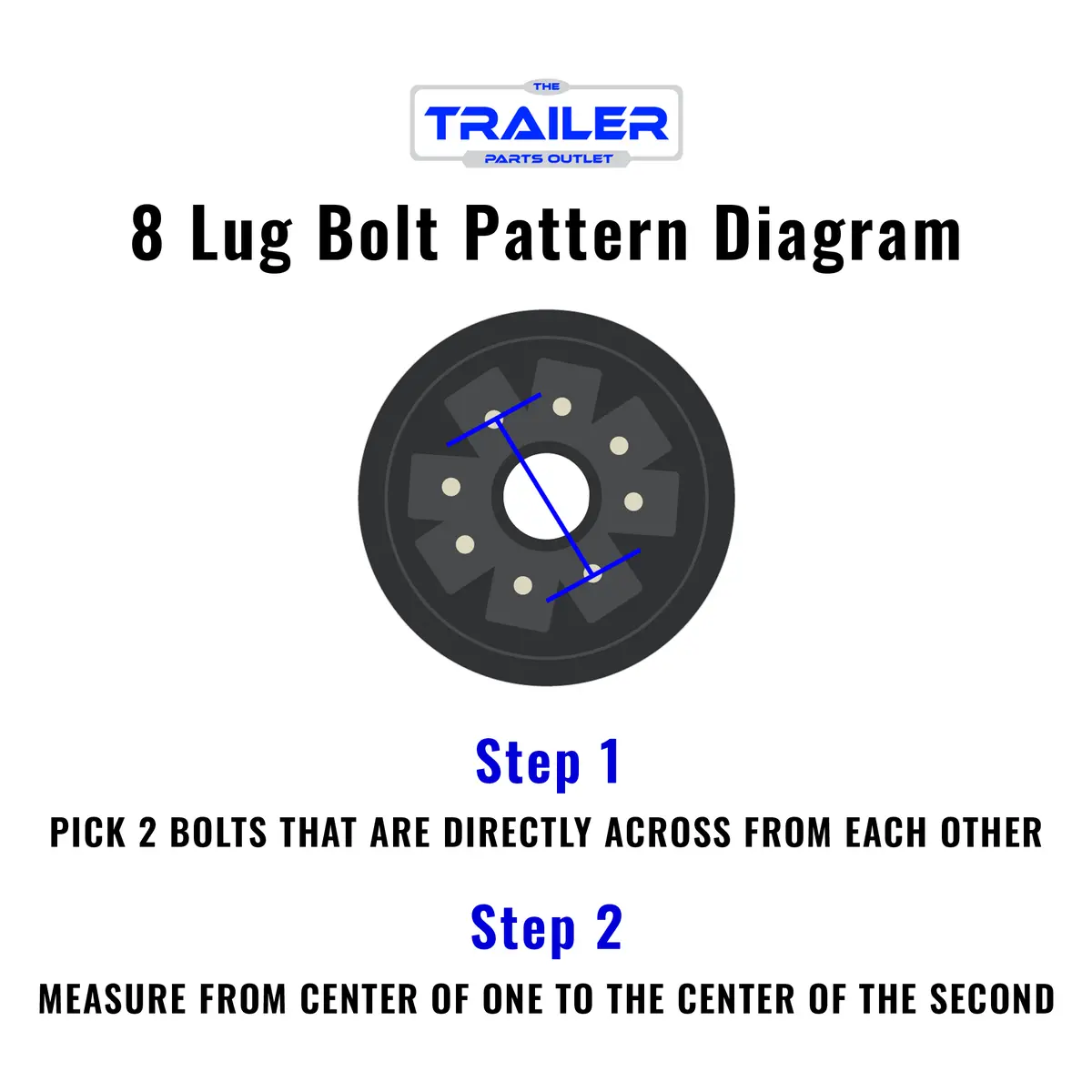

• 8 on 275mm Bolt Pattern
• 1 – 28622 Outer Race (Pre-Pressed In Hub)
• 1 – 3920 Inner Race (Pre-Pressed In Hub)
• Uses 3984 (2.625″ ID) and 28682 (2.25″ OD) bearings (sold separately)
• Drum uses a brake assembly that measures 12 1/4″ X 5″ (sold separately)
• 22mm Wheel Studs
• This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles

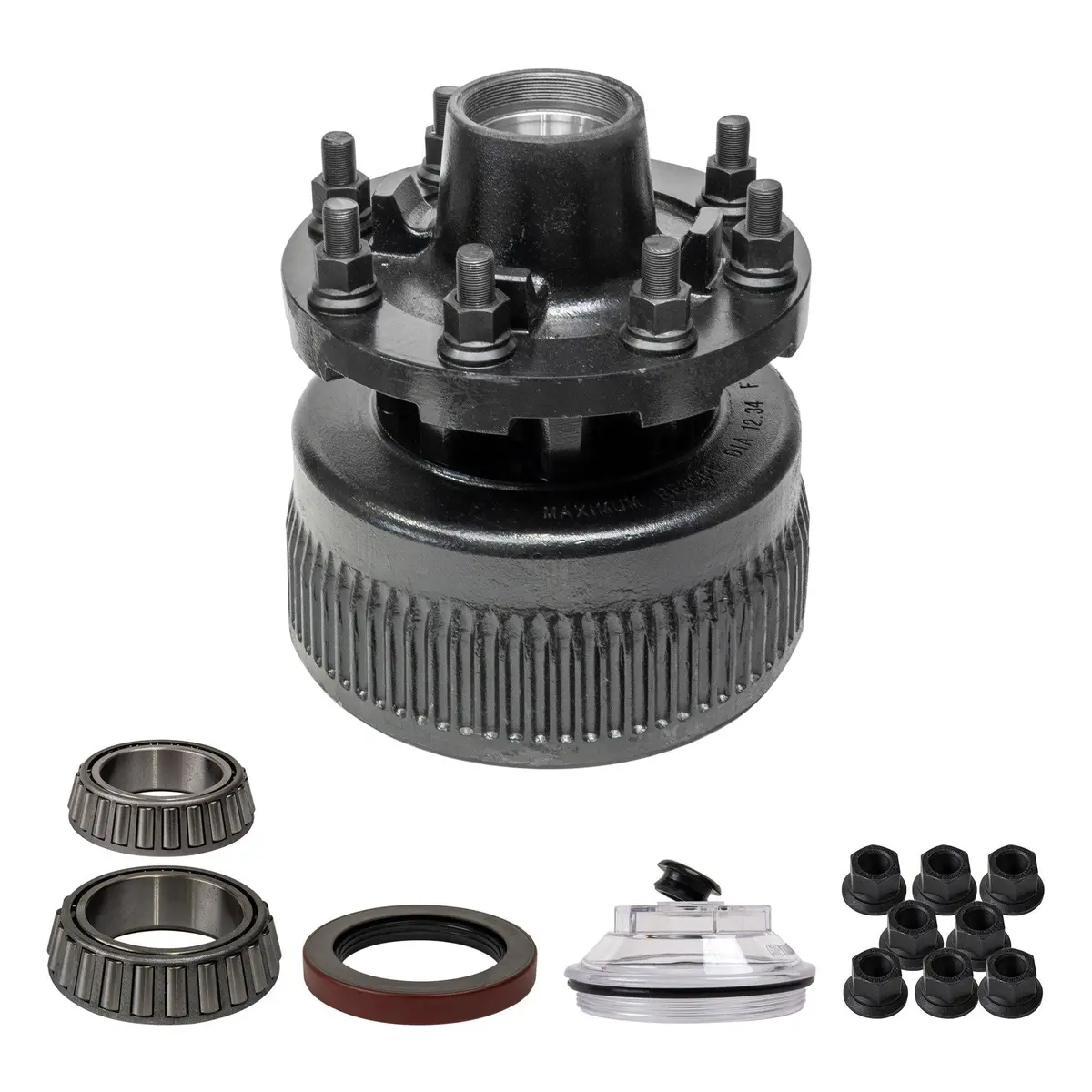

Hub/Drum Assembly Specs:

• Hub/Drum
• 8 on 275mm Bolt Pattern
• 1 – 28622 Outer Race (Pre-Pressed In Hub)
• 1 – 3920 Inner Race (Pre-Pressed In Hub)
• 1 – 3984 Inner Bearing 2.625″ ID
• 1 – 28682 Outer Bearing 2.25″ ID
• 1 – 10-56 Oil Seal 3.125″ ID/4.5″ OD
• 1 – Oil Bath Cap and Plug 21-36
• 8 – Swivel Flange Wheel Lug Nuts
• 22mm Wheel Studs
• This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
• This hub/drum is NOT COMPATIBLE with Rockwell Axles

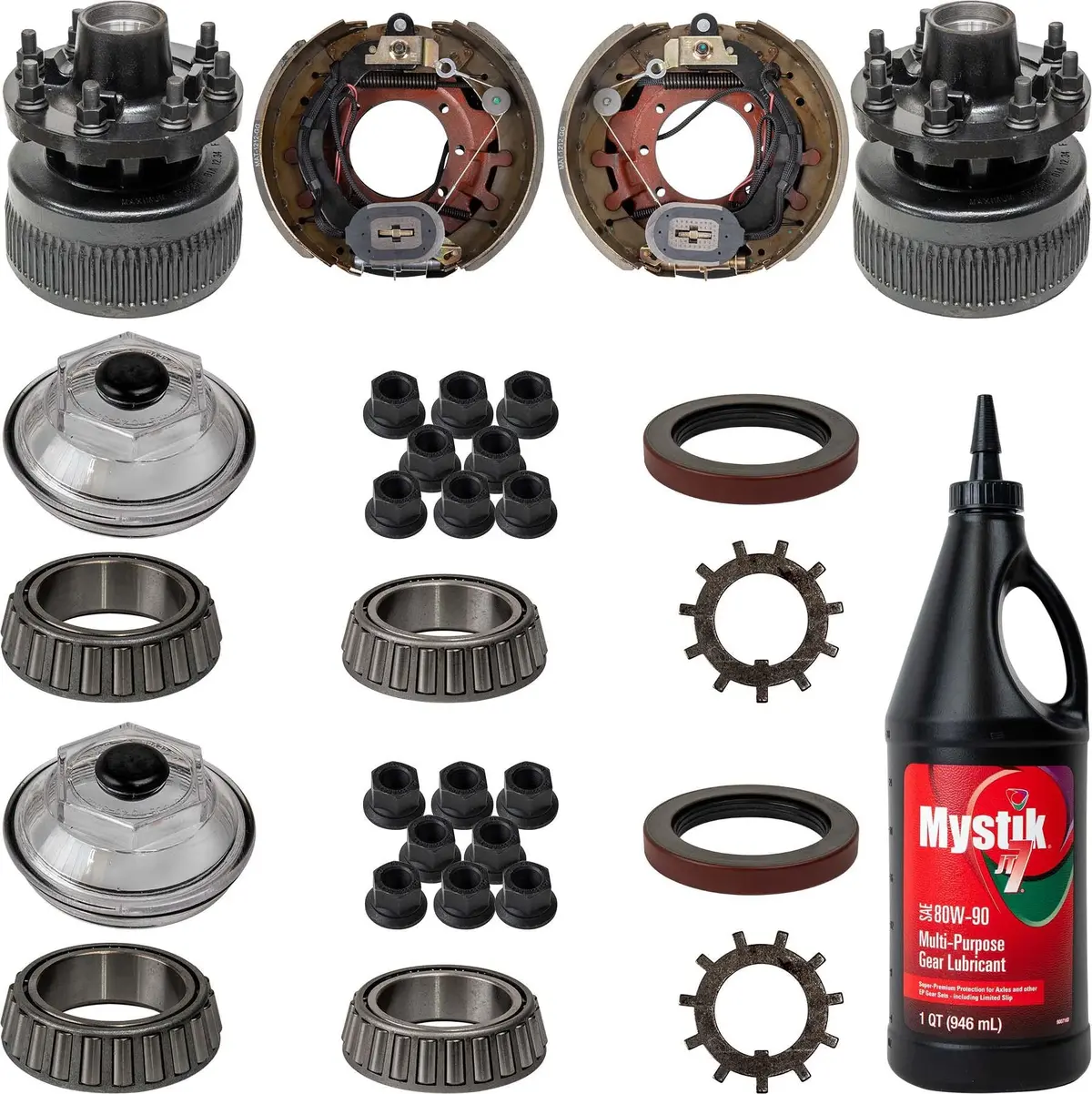

TK Service Kit Specs:

• 2 – 15K Trailer Axle Hub and Drum 8x275mm
• 2 – 15k (15,000 lb Capacity) Bearing Kit
  • 2 – 3984 Inner Bearing 2.625″ I.D
  • 2 – 28682 Outer Bearing 2.250″ I.D
  • 2 – 3920 Inner Race 4.438″ O.D (Pre-Pressed In Hub)
  • 2 – 28622 Outer Race 3.844″ O.D (Pre-Pressed In Hub)
  • 2 – Unitized Oil Seal 010-056-00 4.506″ O.D 3.125″ I.D
• 16 – Swivel Flange Wheel Lug Nuts
• 2 – 12-15K Tang Washer – 1.75″ I.D. x 0.60″
• 2 – Oil Bath Cap and Plug 21-36
• 1 – 1 Quart Jug of Axle Oil (Oil Brand May Vary)
• 1 – 15k Trailer Brake Assembly – 12.25″x5″ (Driver Side)
• 1 – 15k Trailer Brake Assembly – 12.25″x5″ (Passenger Side)

If you’re replacing the hubs and drums on your trailer axles and you need a heavy-duty option, then this 15K assembly is a great choice. It features an 8-lug hub face, and you can pair it with the tire and wheel assemblies of your choice. It works well on flatbeds, lowboys, and other large trailers, and we know you’ll love how easy it is to install. Instead of your trailer being out of commission, you can get it back on the road and working for your business. Order your new 15K trailer axle hub and drum assembly from our online catalog today!

Features:

• Grease Bath Lubrication
• Our Hub/Drum has 8 on 275mm Bolt Pattern for 15K lb Axles
• Races are pre-pressed into the hub for your convenience
• Each hub has a capacity of 7,500 lbs
• Drum uses a brake assembly that measures 12 1/4″ X 5″
• 22mm Wheel Studs
• This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
• This hub/drum is NOT COMPATIBLE with Rockwell Axles
