15,000 lb Trailer Axle Hub Assembly – 8-Lug, 275 mm Bolt Circle, Heavy-Duty

Description

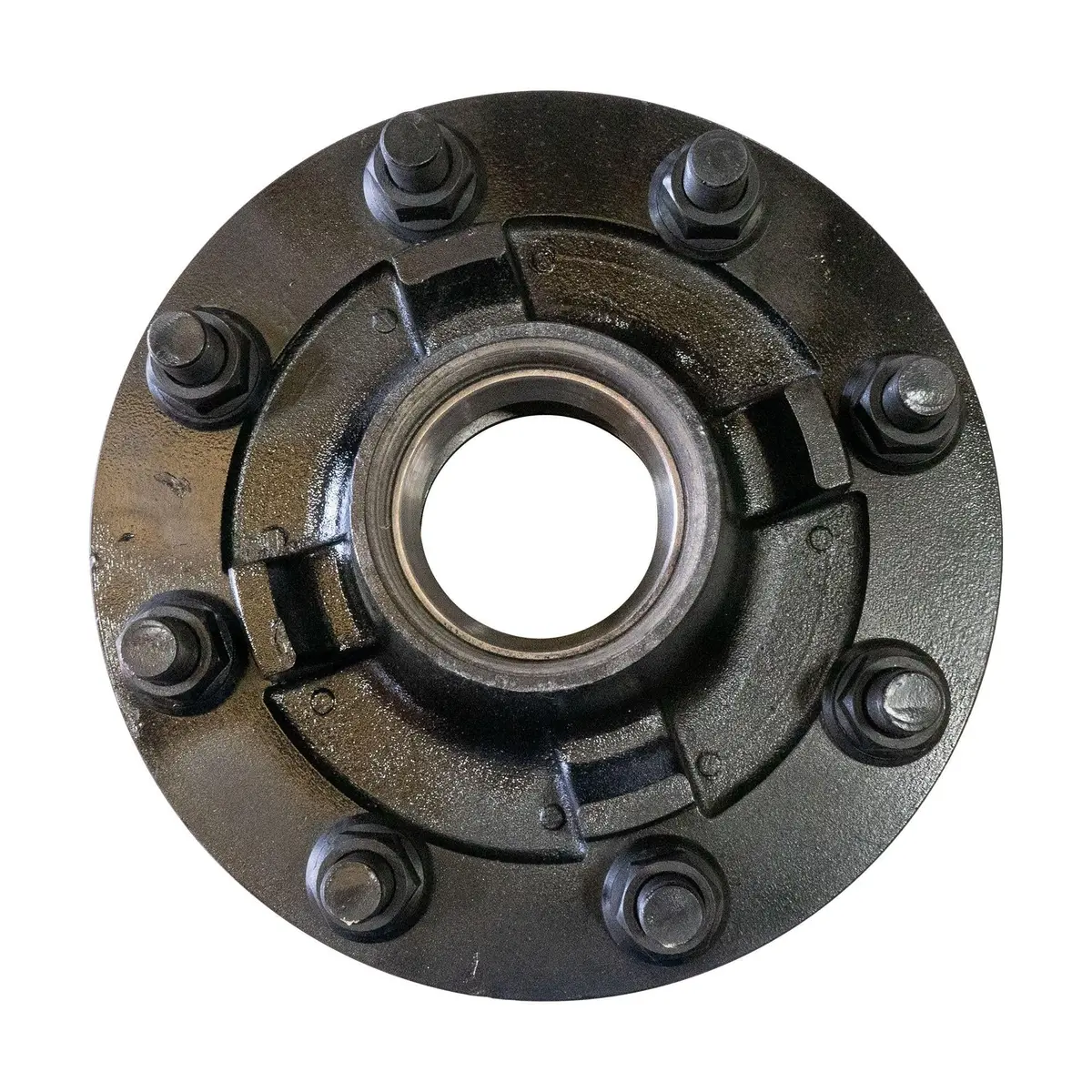

Hub Only Specs:

• Hub Only
• 8 on 275mm Bolt Pattern
• 1 – 28622 Outer Race (Pre-Pressed In Hub)
• 1 – 3920 Inner Race (Pre-Pressed In Hub)
• Uses 3984 (2.625″ ID) and 28682 (2.25″ OD) bearings (sold separately)
• Drum (sold separately) uses a brake assembly that measures 12 1/4″ X 5″
• 22mm Wheel Studs
• This hub can be used with 15,000 lb Dexter, TK, & Texas Pride Axles

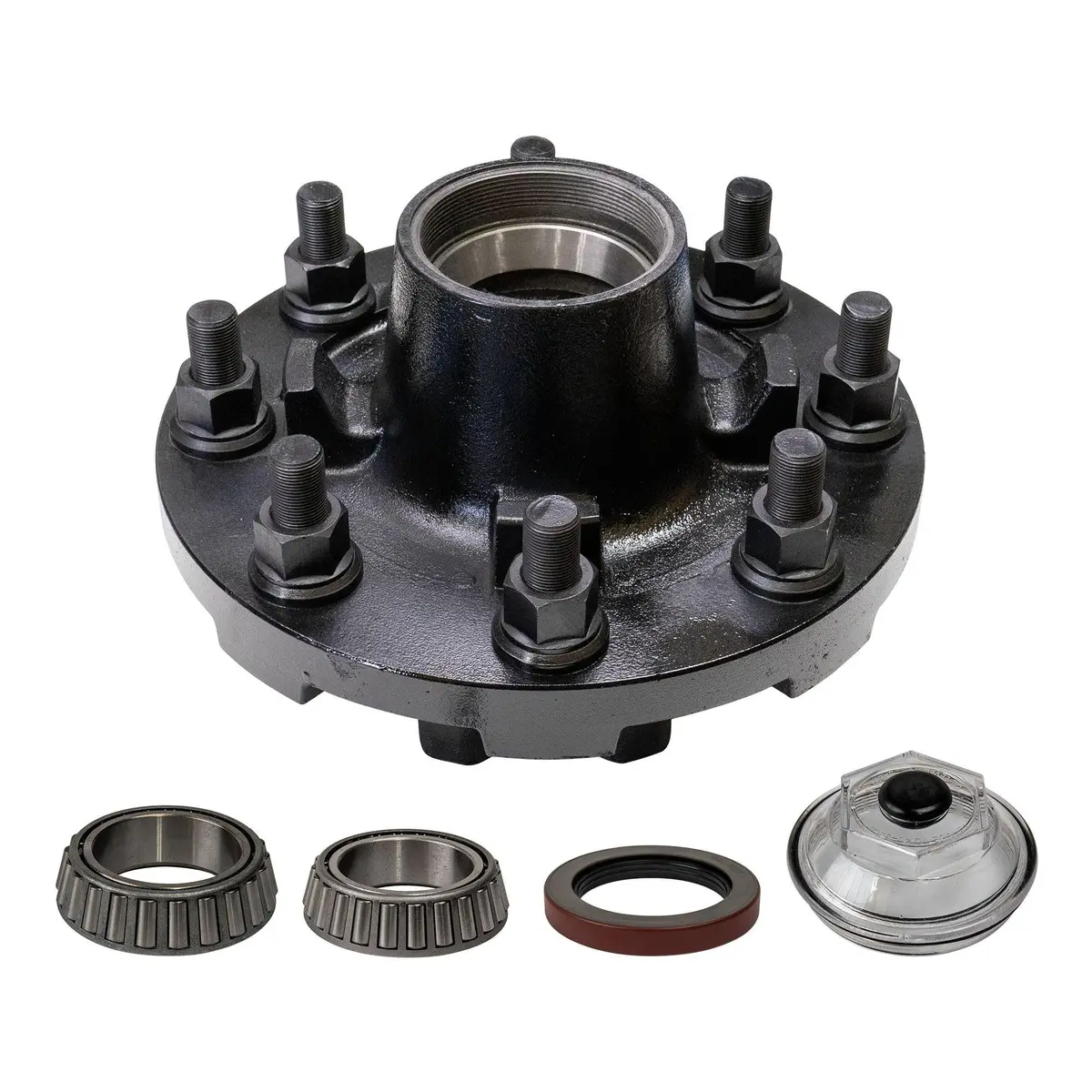

Hub Assembly Specs:

• Hub
• 8 on 275mm Bolt Pattern
• 1 – 28622 Outer Race (Pre-Pressed In Hub)
• 1 – 3920 Inner Race (Pre-Pressed In Hub)
• 1 – 10-56 Oil Seal 3.125″ ID/4.5″ OD
• 1 – 3984 Inner Bearing 2.625″ ID
• 1 – 28682 Outer Bearing 2.25″ ID
• 1 – 21-36 Grease Cap
• 8 – Swivel Flange Wheel Lug Nuts
• 22mm Wheel Studs
• This hub can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
• This hub is NOT COMPATIBLE with Rockwell Axles

Features:

• Grease Bath Lubrication
• Our Hub has 8 on 275mm Bolt Pattern for 15K lb Axles
• Races are pre-pressed into the hub for your convenience
• Each hub has a capacity of 7,500 lbs
• Drum (sold separately) uses a brake assembly that measures 12 1/4″ X 5″
• 22mm Wheel Studs
• This hub can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
• This hub is NOT COMPATIBLE with Rockwell Axles
