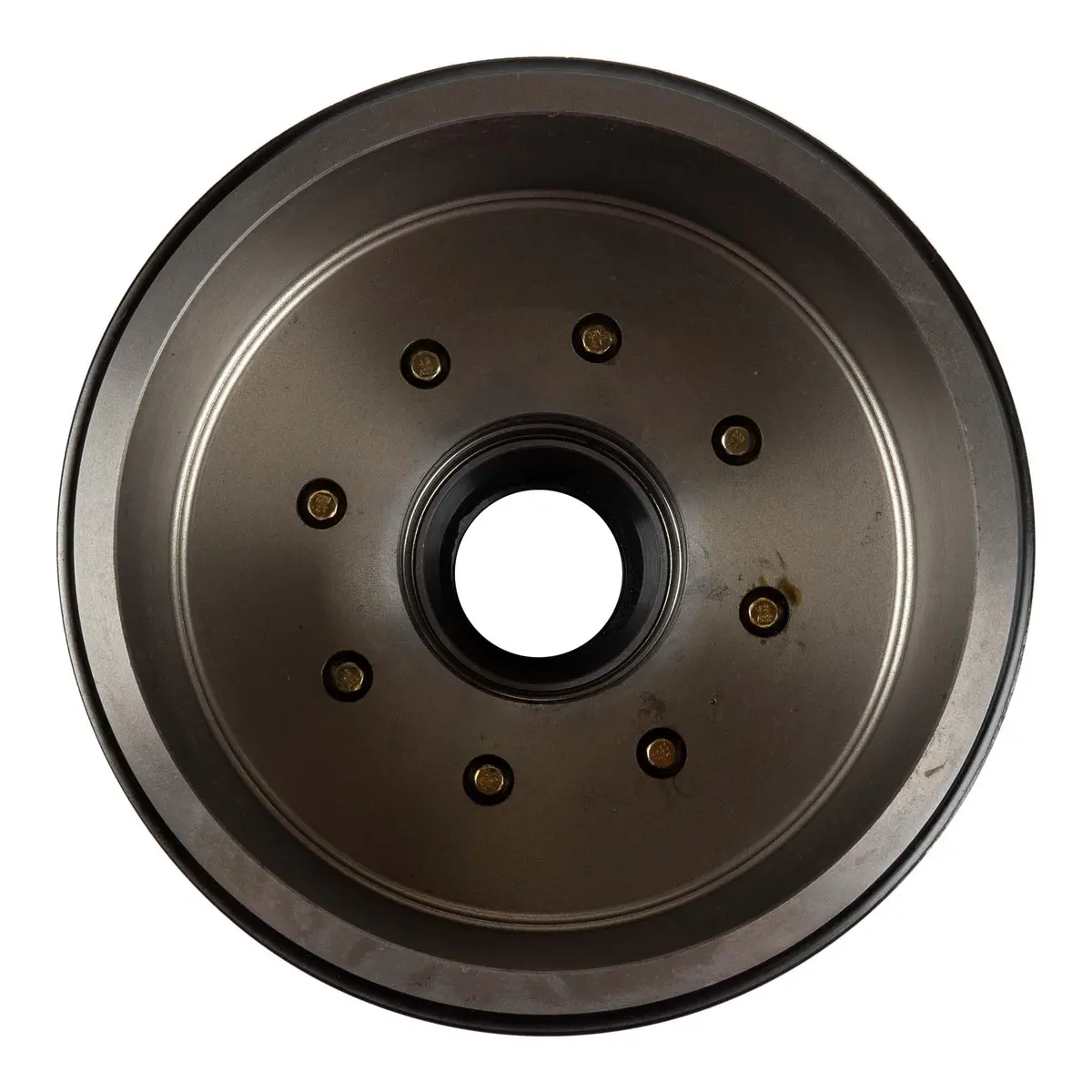

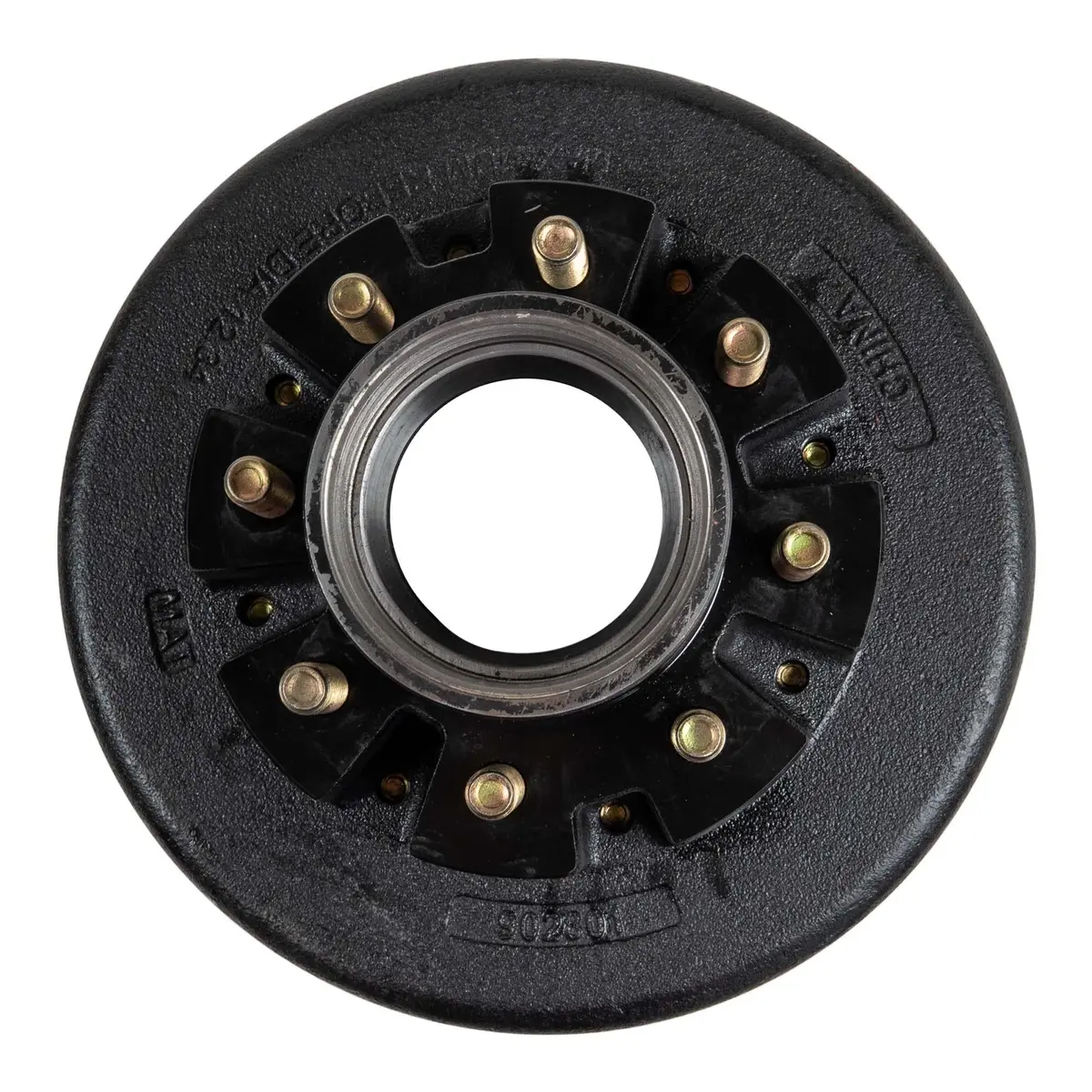

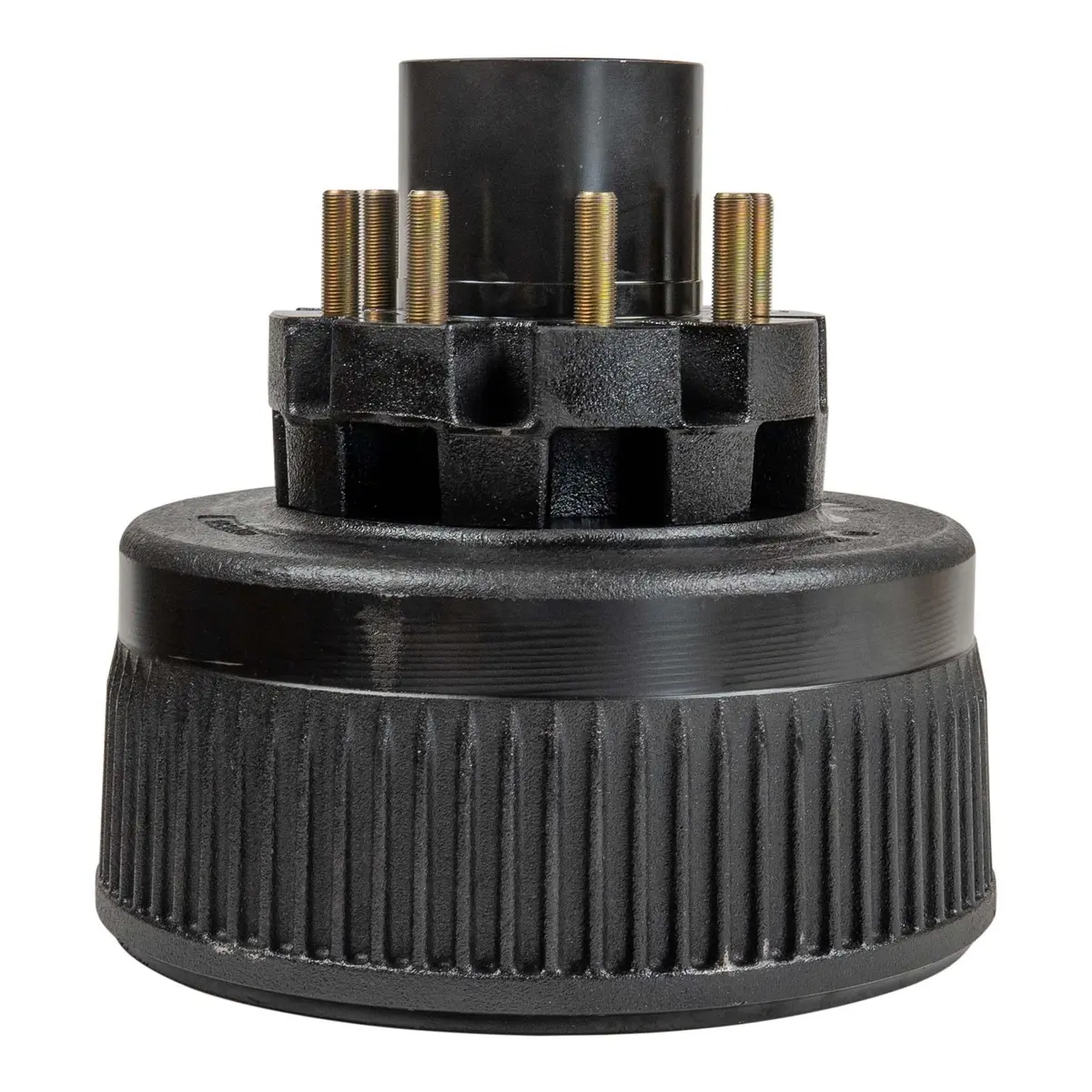

12,000-Lb Trailer Axle Hub & Drum Assembly – 8×6.5″ Bolt Pattern

Description

Hub/Drum Only Specs:

• Hub/Drum Only

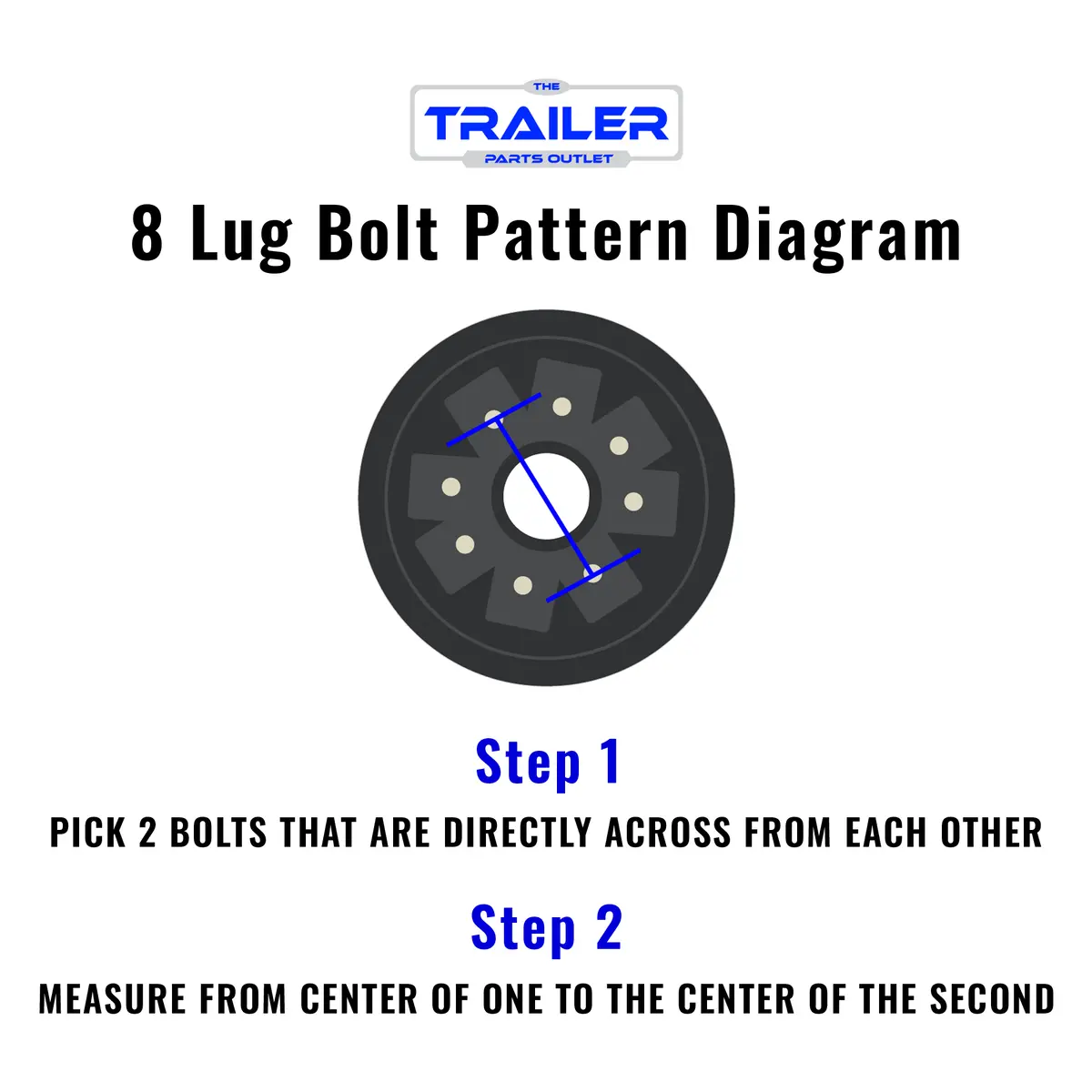

• 8 on 6.5″ Bolt Pattern
• 1 – 28622 Outer Race (Pre-Pressed In Hub)
• 1 – 3920 Inner Race (Pre-Pressed In Hub)
• Uses 3984 (2.625″ ID) and 28682 (2.25″ OD) bearings (sold separately)
• Fits Most 12K Axles (Dexter, TK, Texas Pride, etc)
• This hub & drum can be used with 12,000 lb axles
• Drum uses a brake assembly that measures 12 1/4″ X 5″
• 5/8″ Wheel Studs
• This hub/drum is NOT COMPATIBLE with Rockwell Axles

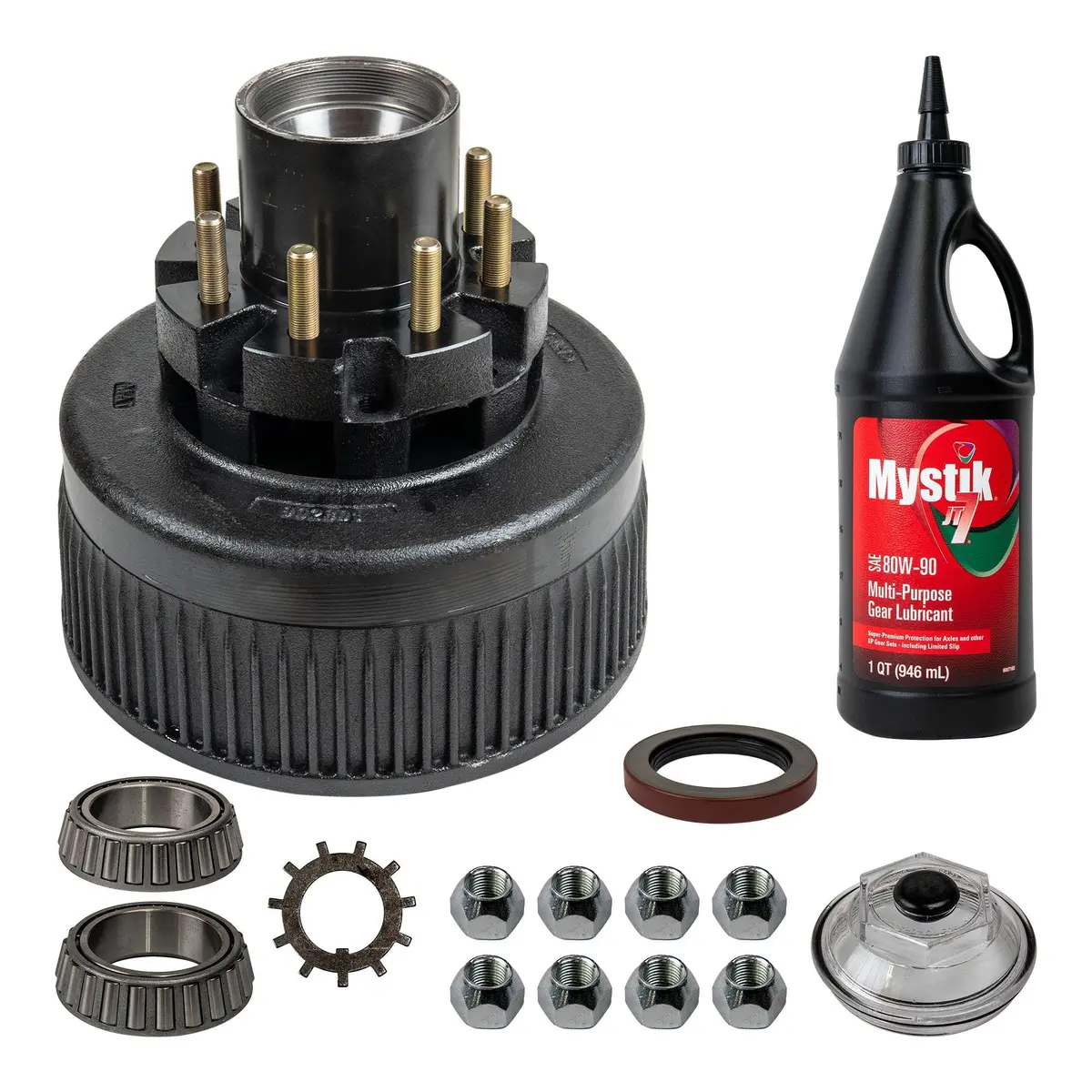

Hub/Drum Assembly Specs:

• Hub/Drum
• 8 on 6.5″ Bolt Pattern
• 1 – 28622 Outer Race (Pre-Pressed In Hub)
• 1 – 3920 Inner Race (Pre-Pressed In Hub)
• 1 – 3984 Inner Bearing 2.625″ ID
• 1 – 28682 Outer Bearing 2.25″ ID
• 1 – 10-56 Oil Seal 3.125″ ID/4.5″ OD
• 1 – 21-36 Oil Cap
• 1 – 12-15K Tang Washer
• 1 – Multi-Purpose Gear Lubricant (1 Quart)
• 8 – Coned Wheel Nuts
• 5/8″ Wheel Studs

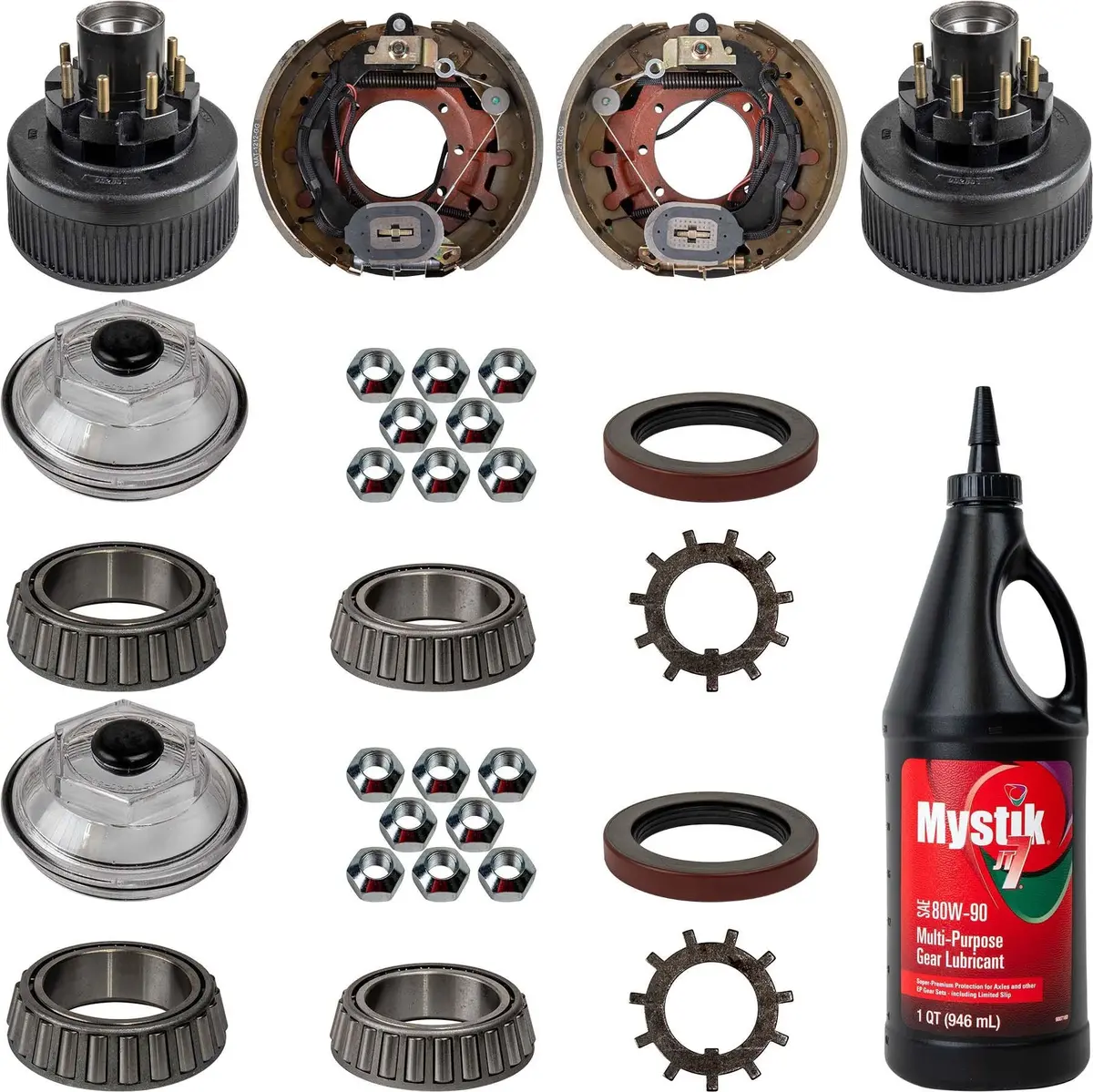

TK Service Kit Specs:

• 2 – 12K Trailer Axle Hub and Drum 8×6.5
• 2 – 12k (12,000 lb Capacity) Bearing Kit
  • 2 – 3984 Inner Bearing 2.625″ I.D
  • 2 – 28682 Outer Bearing 2.250″ I.D
  • 2 – 3920 Inner Race 4.438″ O.D (Pre-Pressed In Hub)
  • 2 – 28622 Outer Race 3.844″ O.D (Pre-Pressed In Hub)
  • Unitized Oil Seal 010-056-00 4.506″ O.D 3.125″ I.D
• 2 – Oil Bath Cap and Plug 21-36
• 16 – Coned Wheel Nuts
• 2 – 12-15K Tang Washer – 1.75 I.D” x 0.60″
• 1 – 12k Trailer Brake Assembly – 12.25″x5″ (Driver Side)
• 1 – 12k Trailer Brake Assembly – 12.25″x5″ (Passenger Side)
• 1 – 1 Quart Jug of Axle Oil (Oil Brand May Vary)

This 12K trailer axle hub & drum is a great choice for heavy-duty axles, and it will fit axles from most of the major manufacturers, including Dexter, TK, and Texas Pride. If you have questions about this product, or you want to be sure that it will fit your trailer axle, then please don’t hesitate to contact us. At The Trailer Parts Outlet, we’re always happy to help. Order your new 12K trailer axle hub & drum online today!

Features:

• Our Hub/Drum has 8 on 6.5″ Bolt Pattern for 12k lb Axles
• Races are pre-pressed into the hub for your convenience
• Each hub has a capacity of 6,000lbs
• Drum uses a brake assembly that measures 12 1/4″ X 5″
• 5/8″ Wheel Studs
• This hub/drum is NOT COMPATIBLE with Rockwell Axles
