10,000 lb Trailer Axle Drum Assembly – 8-Lug, Designed for Post-May 2013 Axles

Description

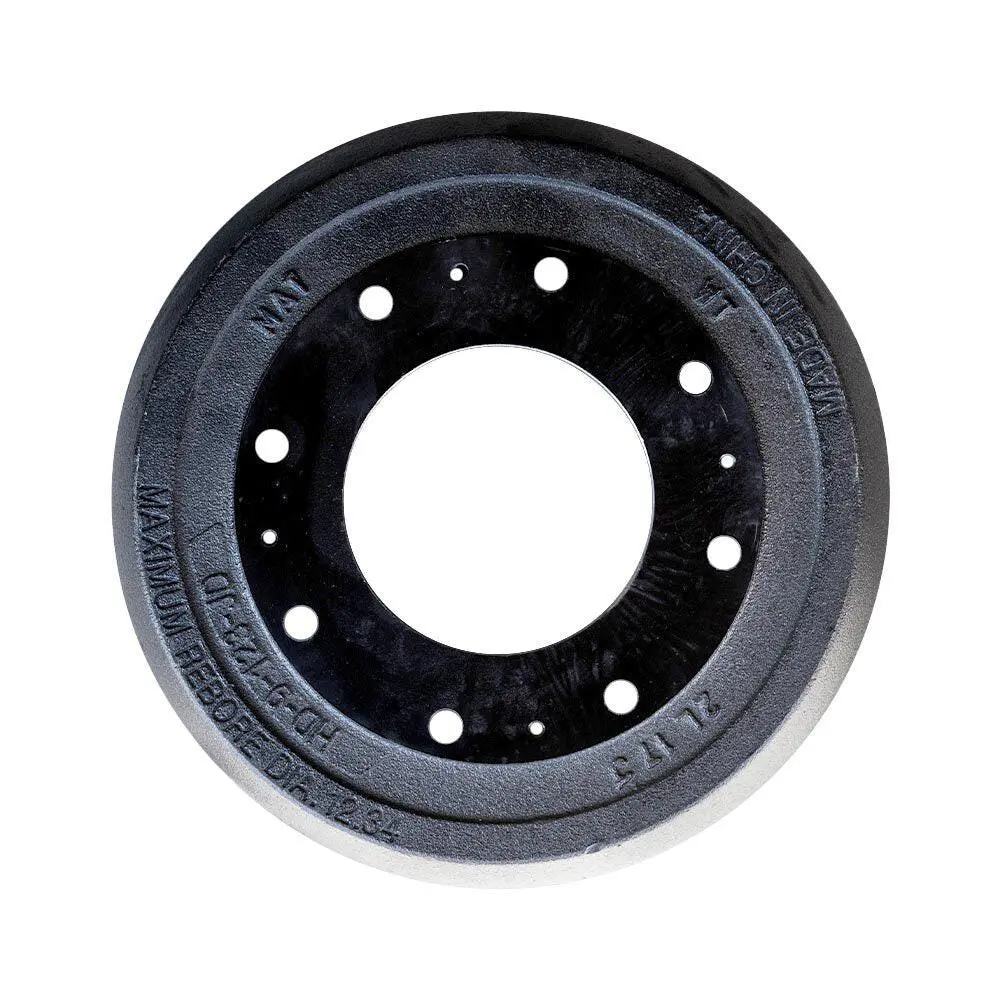

General Duty Drum Only Specs:

• General Duty Drum Only (New Style)
• 10k General Duty Axles (After 5/2013)
• For use with 8-288-3 hubs
• 12-1/4″ x 3-3/8″
• This drum is NOT COMPATIBLE with Texas Pride or Rockwell Axles

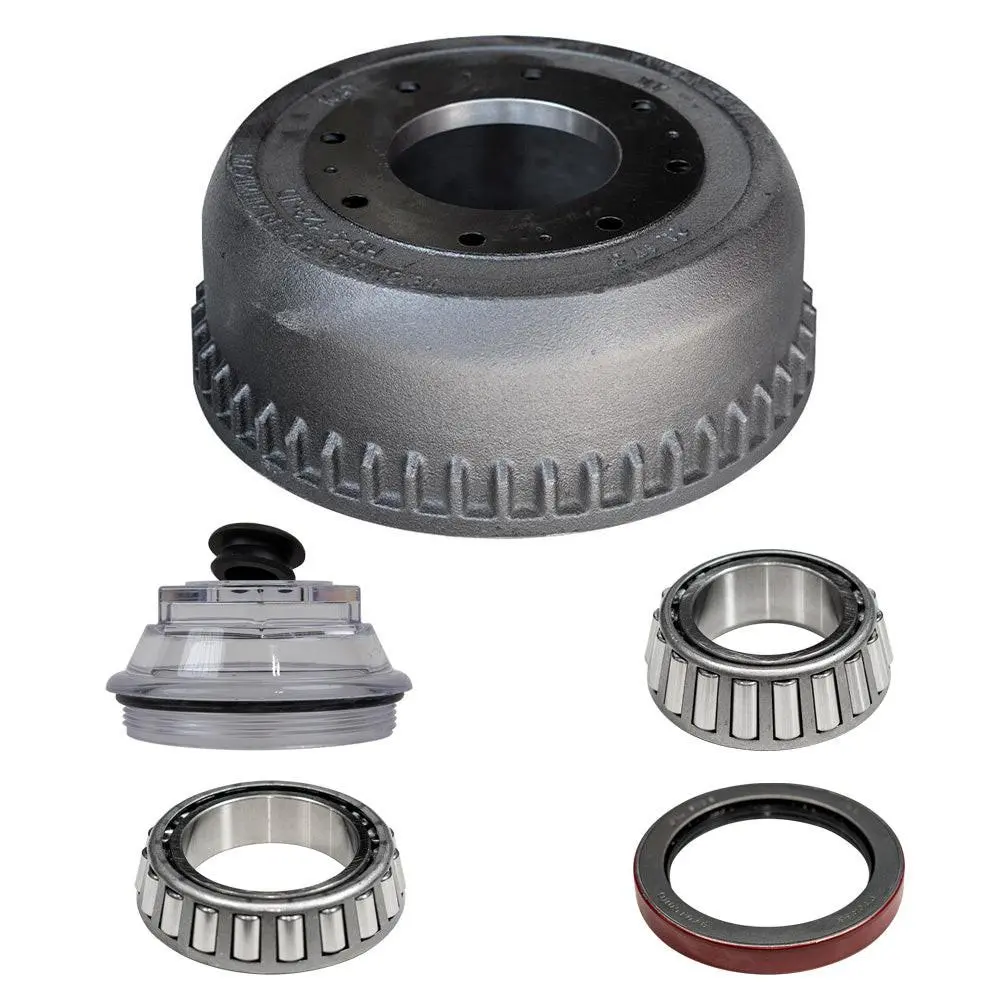

General Duty Drum Assembly Specs:

• General Duty Drum
• 1 – 25580 Outer Bearing 1.75″ ID
• 1 – 387A Inner Bearing 2.250 OD
• 1 – 10-51 Oil Seal 2.875″ ID/3.880″ OD
• 1 – 21-88 Oil Cap

This 10K general duty trailer axle drum features an 8-lug configuration, and it will fit axles manufactured after May 2013. It’s a great choice for a number of trailer types, and we can provide the tire and wheel assemblies (TWAs) to fit it. If you’re trying to get your trailer back in working order, then let The Trailer Parts Outlet supply you with great products at affordable prices. You’ll get your order quickly, which means you can get to work on your trailer and have it on the road in no time. Order your 10K general duty trailer axle drum online today!

Features:

• The drum is used on 10K General Duty axles made after May of 2013
• The drum uses a brake assembly that measures 12 1/4″ x 3 3/8″
• To mount the drum to the hub you will need 8 mounting bolts
• The mounting bolts are sold separately
• This drum is NOT COMPATIBLE with Texas Pride or Rockwell Axles
