7,000-Lb Trailer Axle Hub and Drum Kit – 8-Lug Configuration

Description

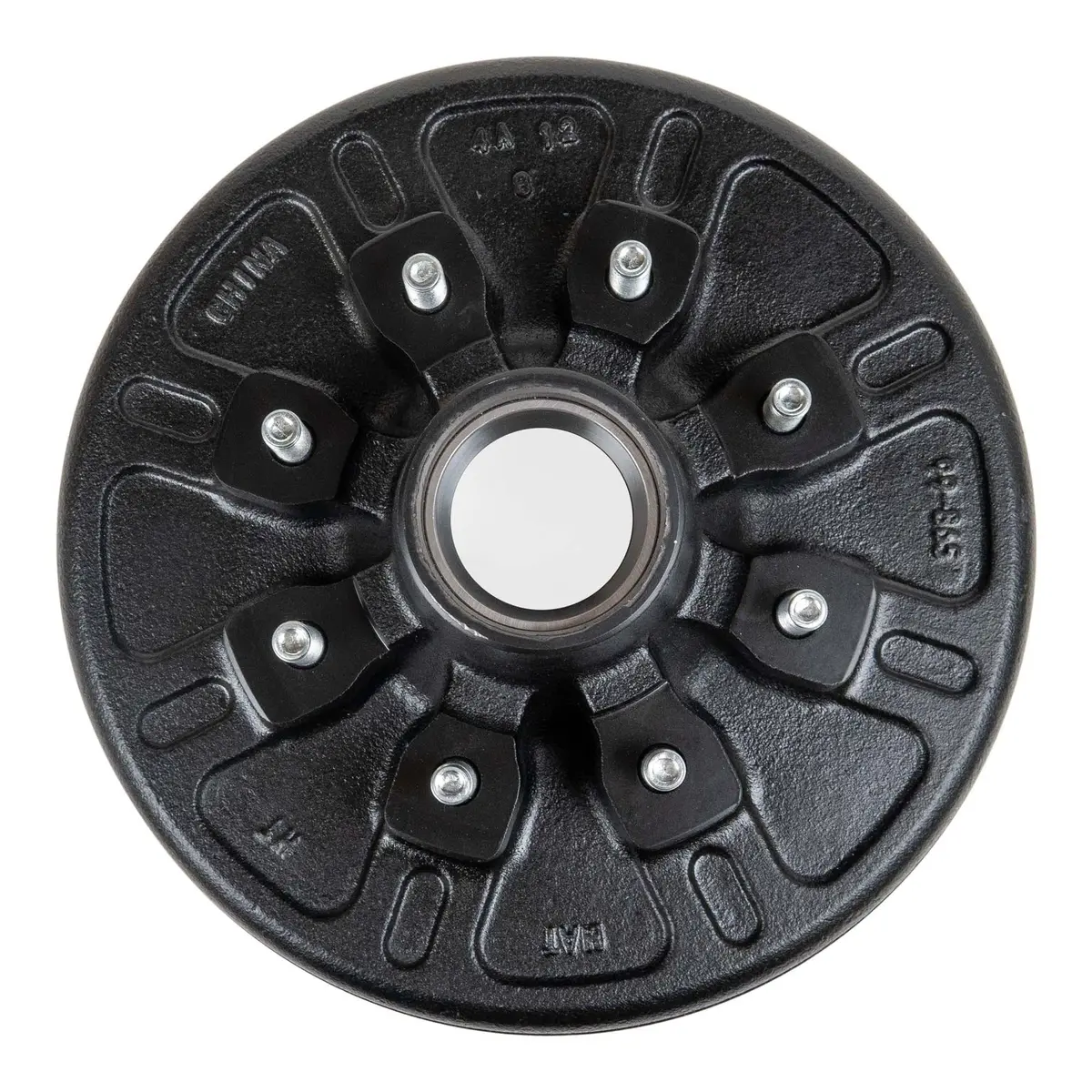

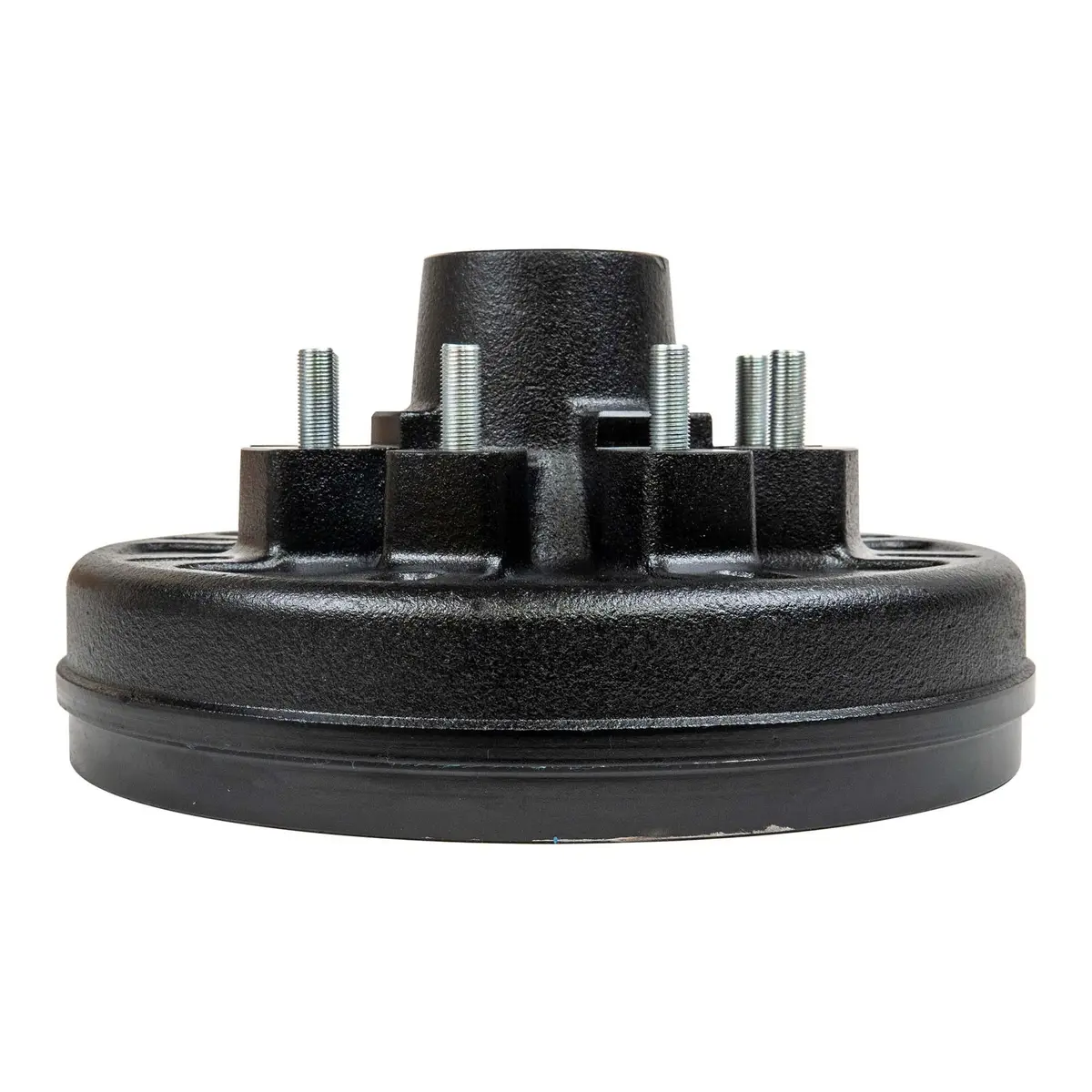

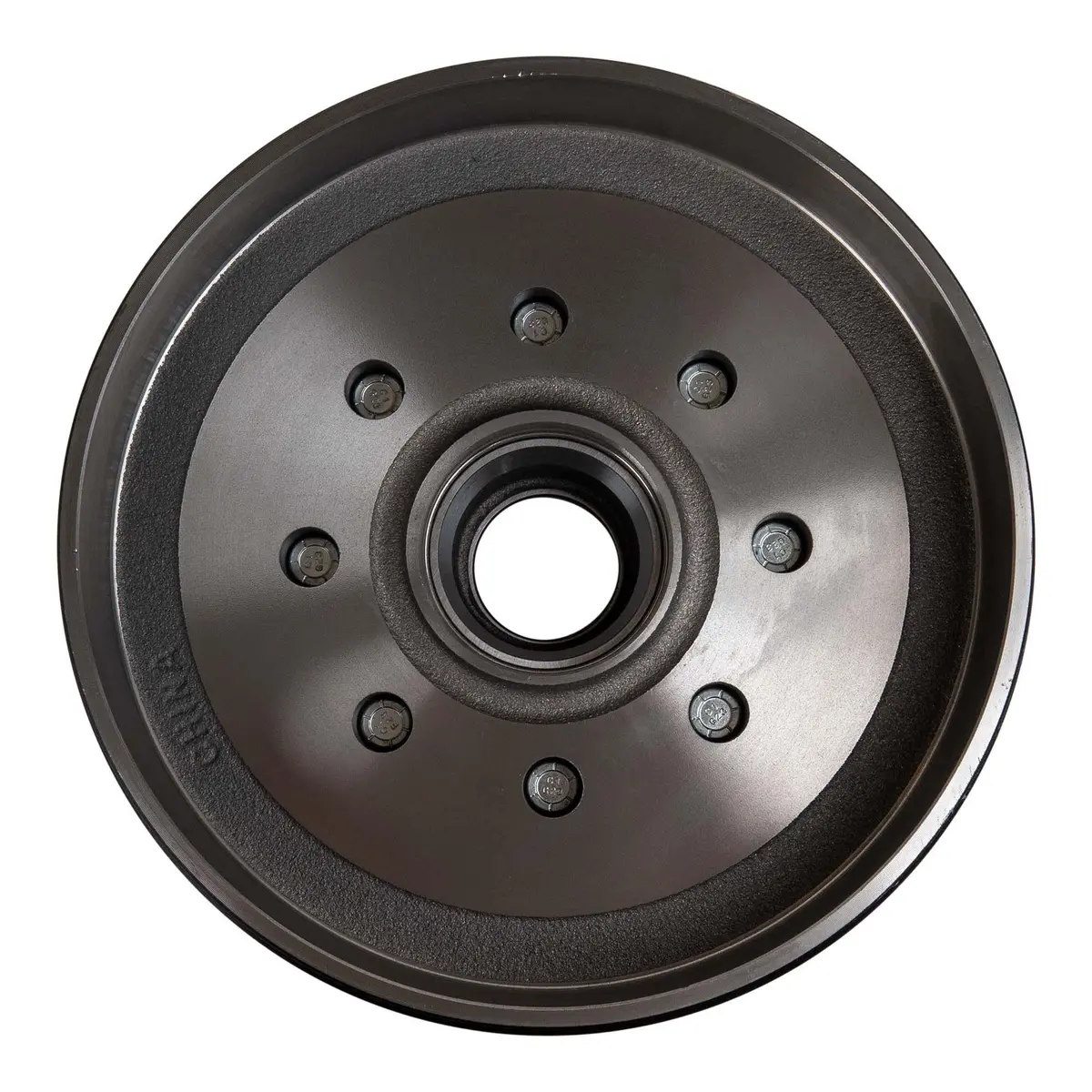

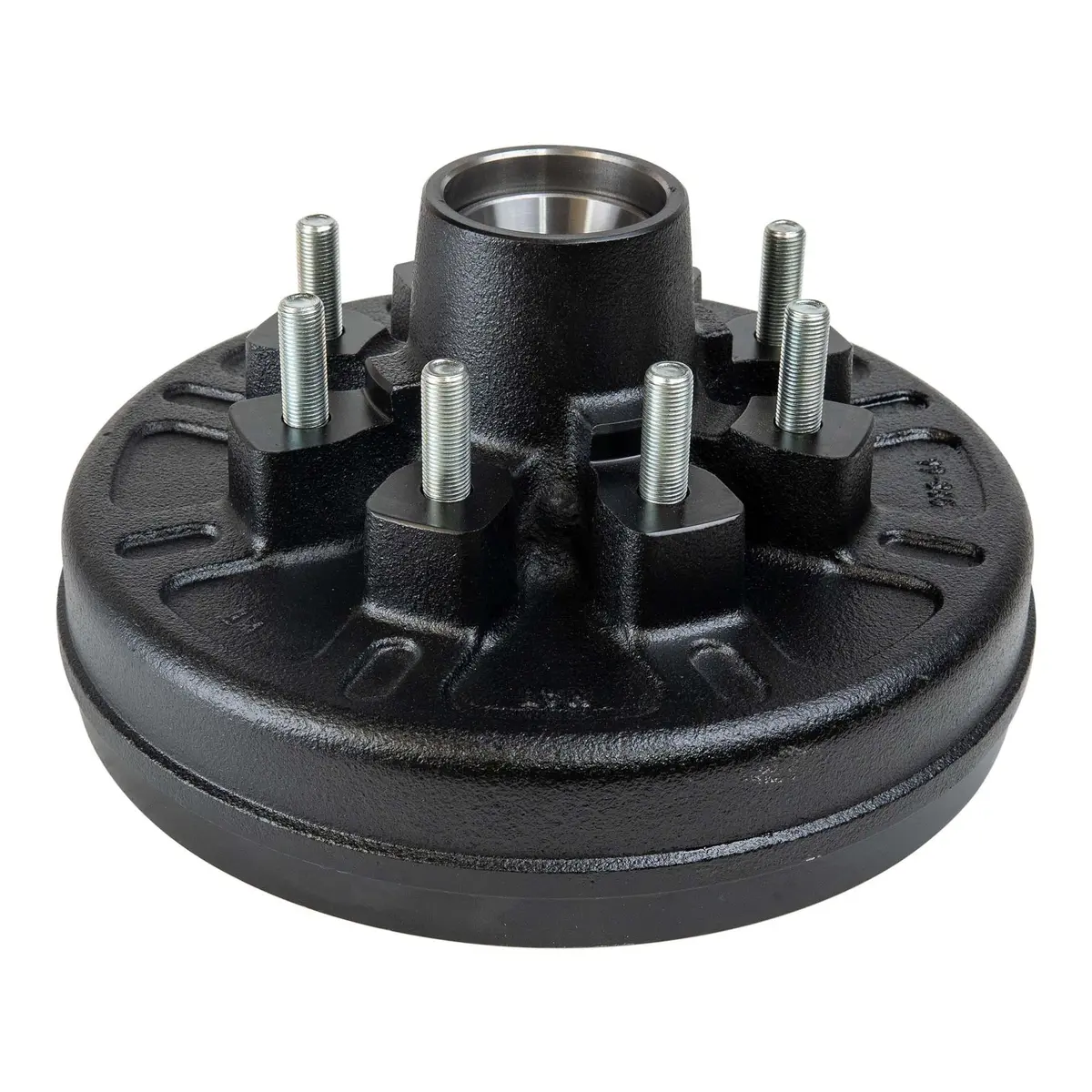

7000 lb Trailer Axle Hub Drum – 8 Lug (8 on 6.5″)

Replace or upgrade your trailer drum with this 7000 lb trailer axle drum, designed for dependable performance on utility, cargo, and equipment trailers. Available in 8 on 6.5″ bolt pattern, this hub drum fits most standard 7K trailer axles.

This hub drum includes pre-installed races only. Bearings, grease seal, dust cap, and hardware are NOT included.

Specs:

• Axle Rating: 7000 lb (7K)

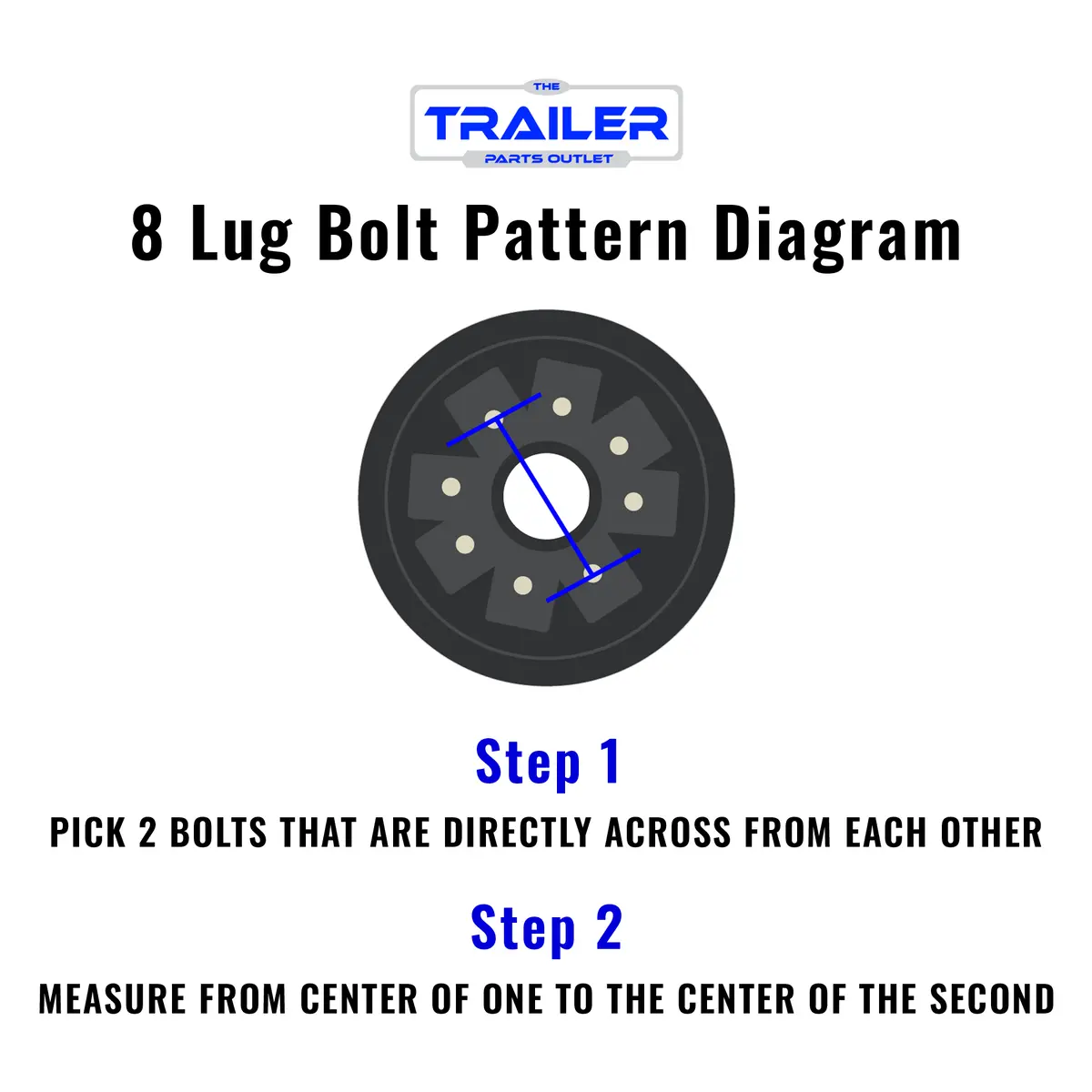

• Bolt Pattern: 8 on 6.5″
• Hub Type: Hub & Drum
• Hub Capacity: 3500 lbs each
• Finish: Black Painted
• Stud Size: 1/2″ or 9/16″ (choose above)
• Designed for: #42 Spindle
• Compatible Brake: 12″ x 2″ Brake Assembly
• Compatible Axle: 7k TK Trailer Axle – 7000 lb Electric Brake 8 lug

What’s Included:

• (1) 7000 lb Black Painted Hub Drum
• (8) 1/2″ Wheel Studs (Pre-pressed)
• (1) 14276 Outer Race – 2.717″ OD (Pre-pressed)
• (1) 25520 Inner Race – 3.265″ OD (Pre-pressed)
• Ready to Ship Package: (1) 13″x13″x8″ Box @ 26 lbs

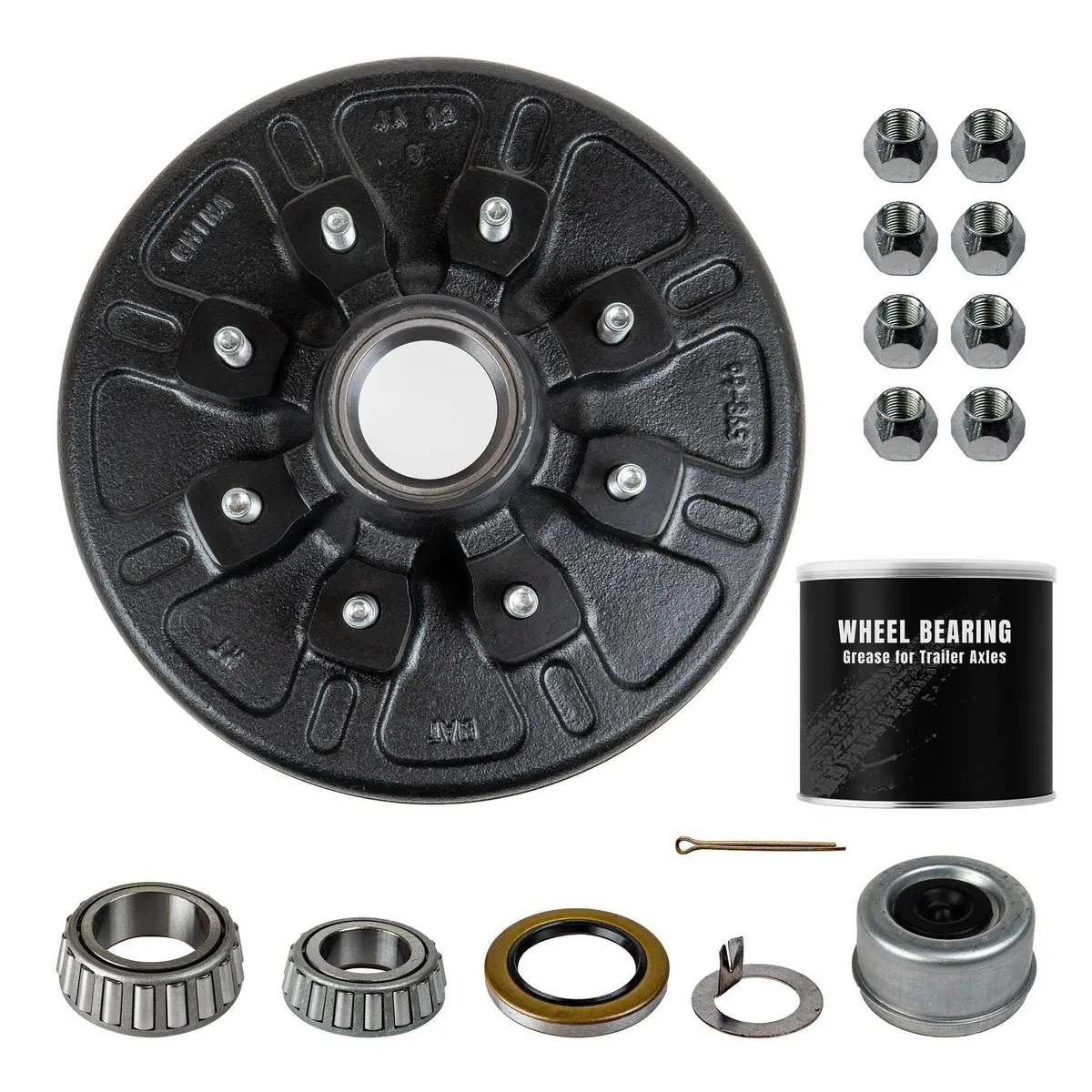

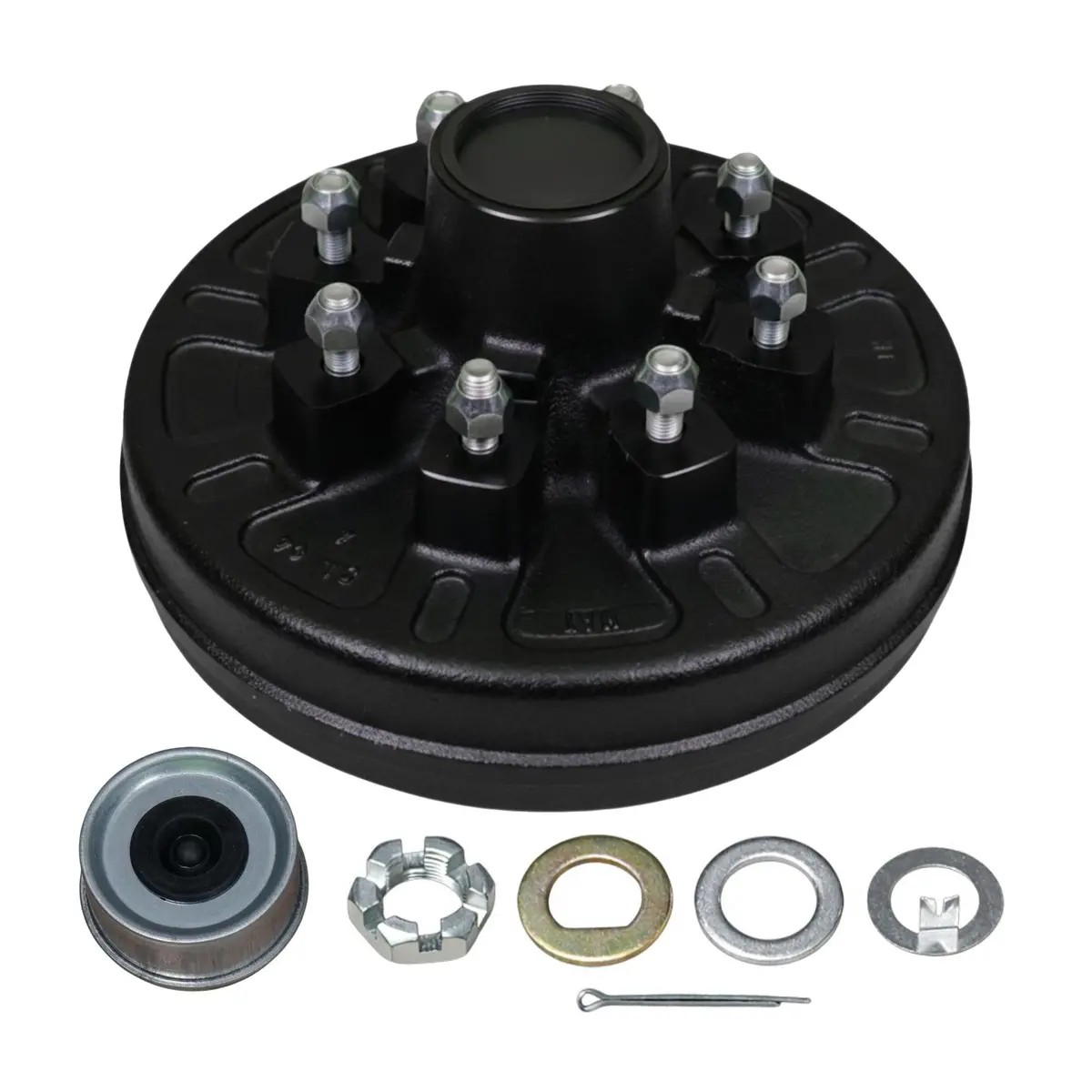

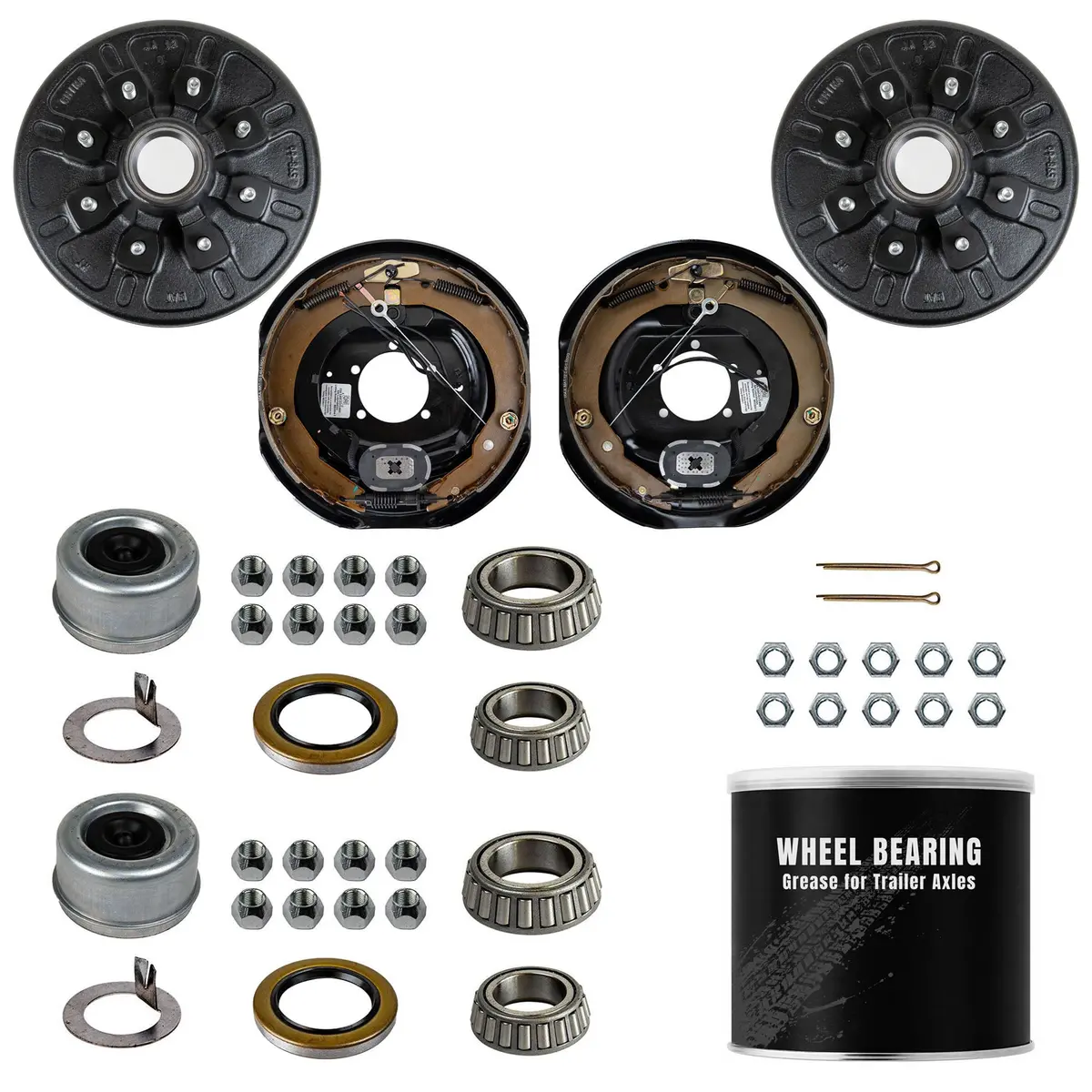

Bearings, grease seal, grease cap, wheel nuts, and spindle retainer are sold separately. To simplify your installation, you can add the complete hardware kit upgrade available above.

Compatibility:

Fits most 7000 lb trailer axles using:

• 25580 Inner Bearing
• 14125A Outer Bearing
• 10-36 Grease Seal
• 8-Lug Wheels (8 on 6.5″)

Always confirm your axle spindle and bearing numbers before ordering.

Ideal For:

• Utility trailers
• Cargo trailers
• Landscape trailers
• Equipment trailers
• Custom trailer builds

Built for Reliable Trailer Performance

This 7K hub drum is designed for standard trailer applications. The durable black painted finish provides basic corrosion protection for everyday use.

Perfect for customers who already have bearings and seals on hand or prefer to source components separately.

Strong. Simple. Ready to Build.

Order today and get a dependable 7000 lb trailer hub & drum built for long-lasting performance.
