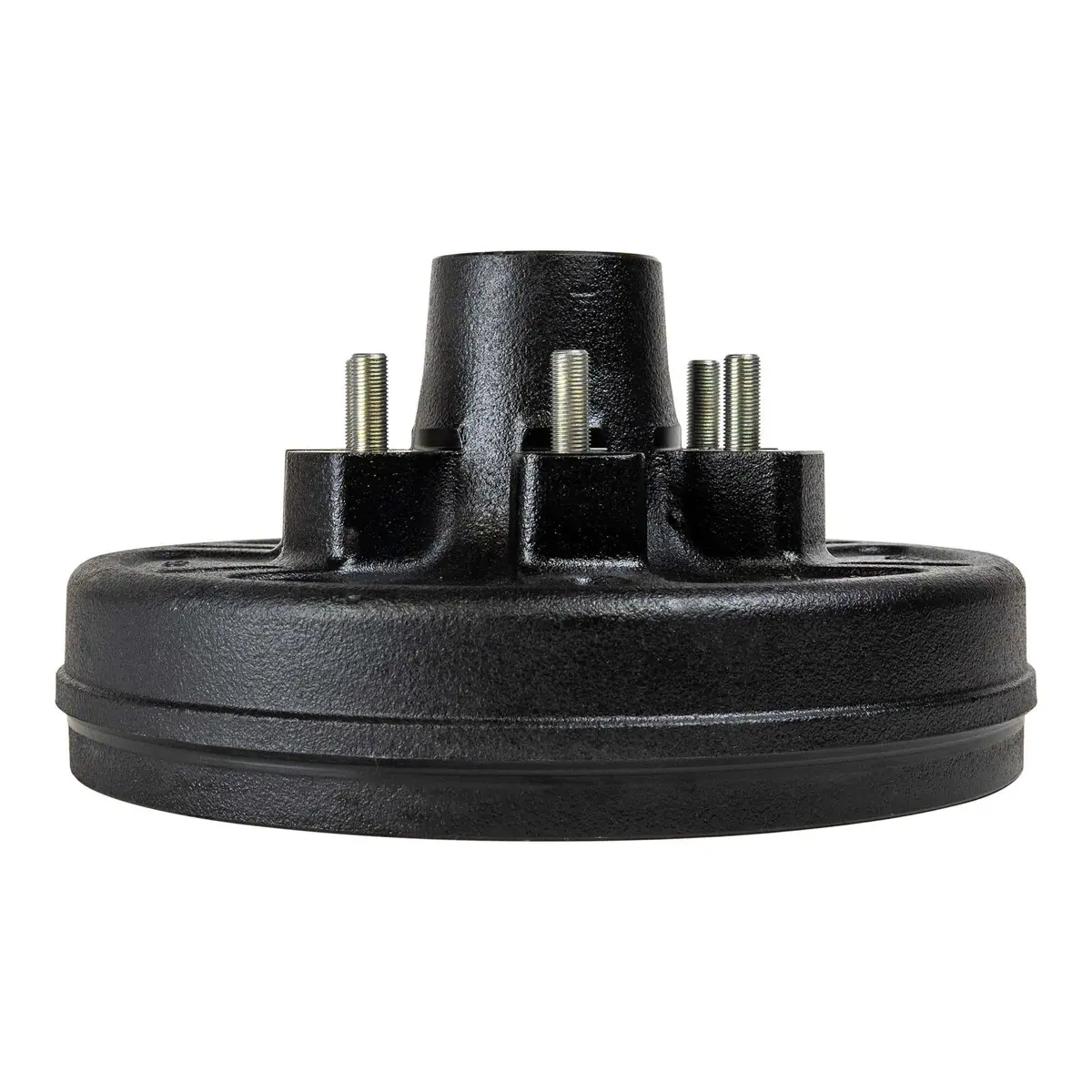

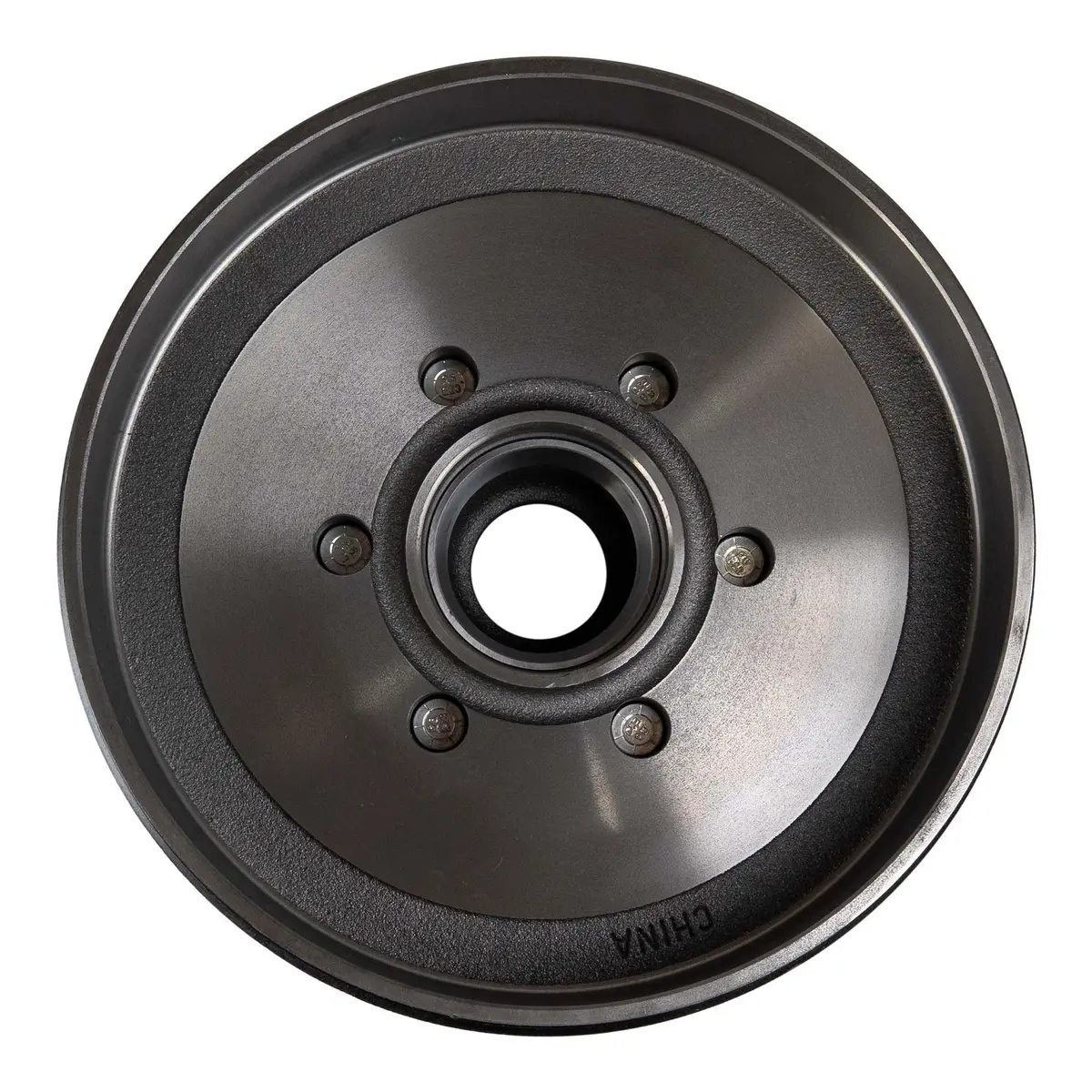

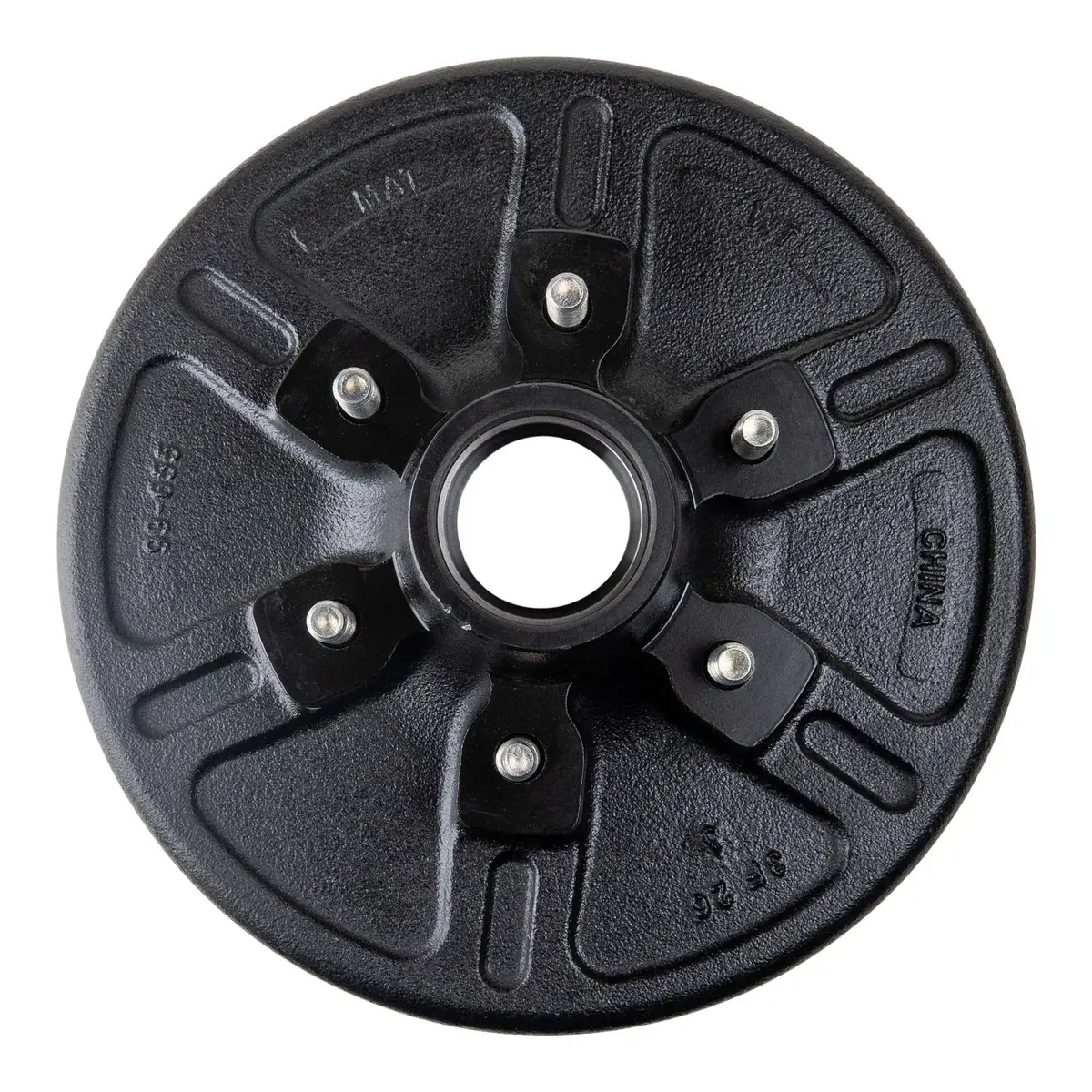

6,000-Lb Trailer Axle Hub and Drum – 6-Lug Mounting Pattern

Description

6000 lb Trailer Axle Hub Drum – 6 Lug (6 on 5.5″)

Replace or upgrade your trailer drum with this 6000 lb trailer axle drum, designed for dependable performance on utility, cargo, and equipment trailers. Available in 6 on 5.5″ bolt pattern, this hub drum fits most standard 6K trailer axles.

This hub drum includes pre-installed races only. Bearings, grease seal, dust cap, and hardware are NOT included.

Specs:

• Axle Rating: 6000 lb (6K)

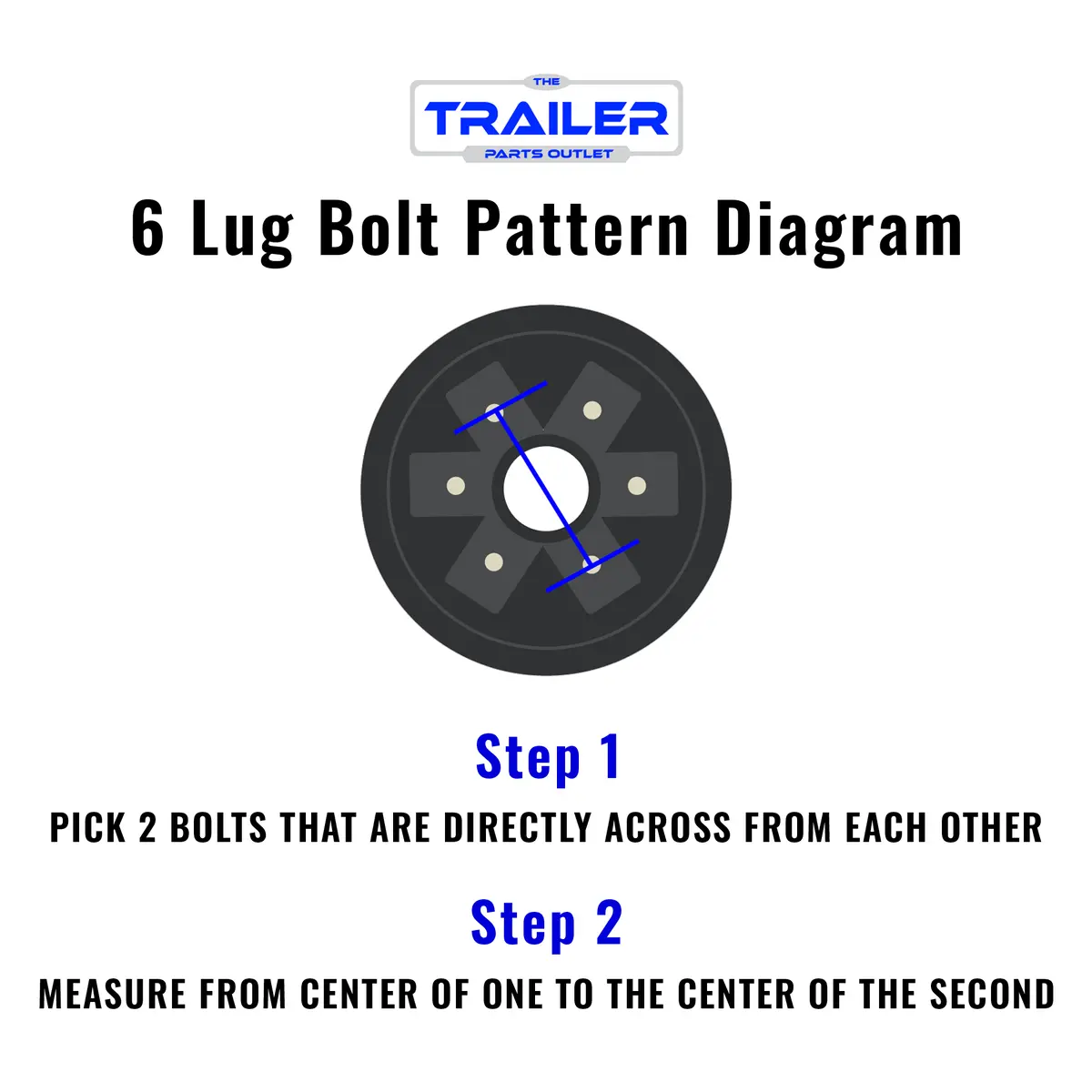

• Bolt Pattern: 6 on 5.5″
• Hub Type: Hub & Drum
• Hub Capacity: 3000 lbs each
• Finish: Black Painted
• Stud Size: 1/2″-20
• Designed for: #42 Spindle
• Compatible Brake: 12″ x 2″ Brake Assembly
• Compatible Axle: 6k TK Trailer Axle – 6000 lb Electric Brake 6 lug


What’s Included:

• (1) 6000 lb Black Painted Hub Drum
• (6) 1/2″-20 Wheel Studs (Pre-pressed)

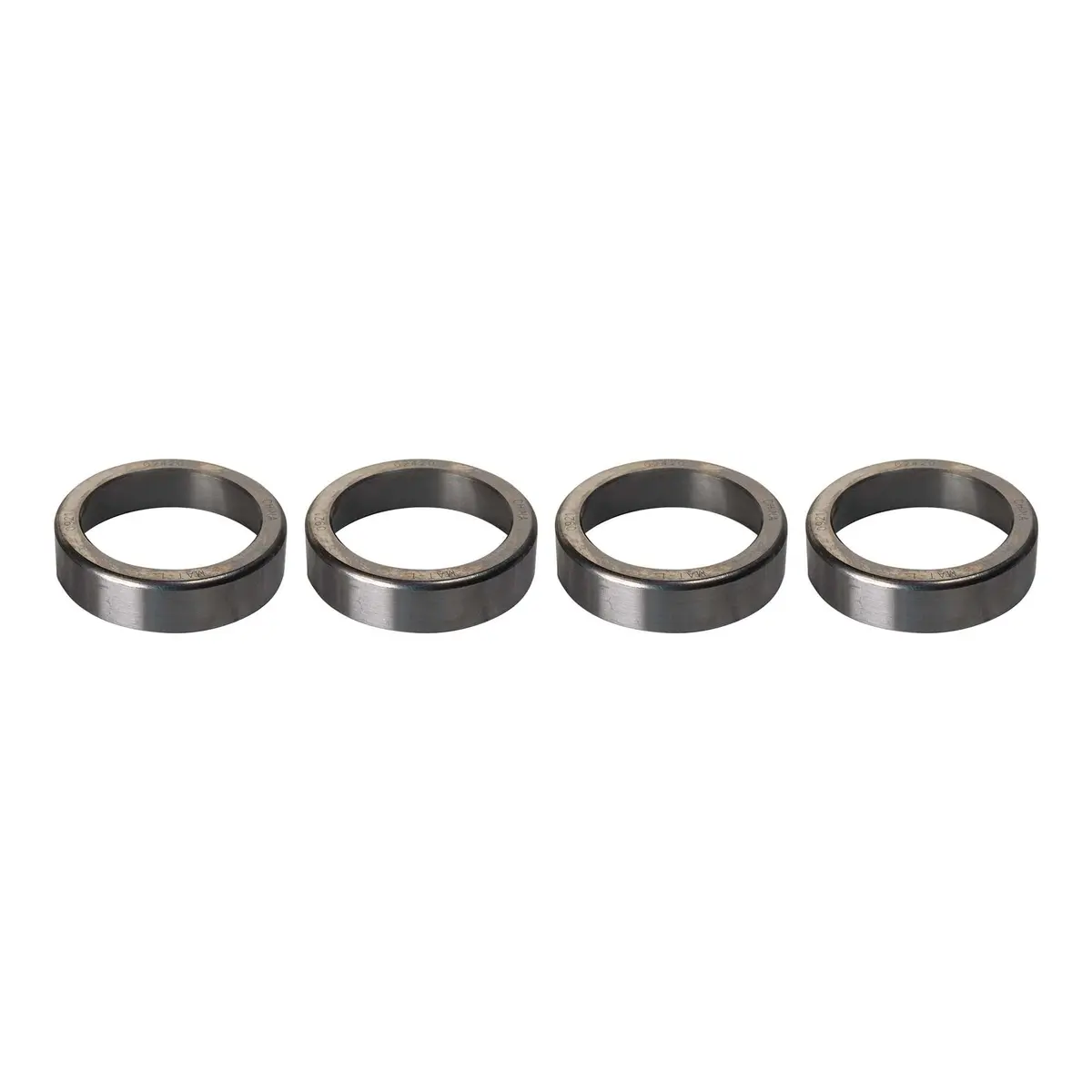

• (1) 15245 Outer Race – 2.441″ OD (Pre-pressed)
• (1) 25520 Inner Race – 3.265″ OD (Pre-pressed)
• Ready to Ship-Package: (1) 13″x13″x8″ Box @ 24 lbs

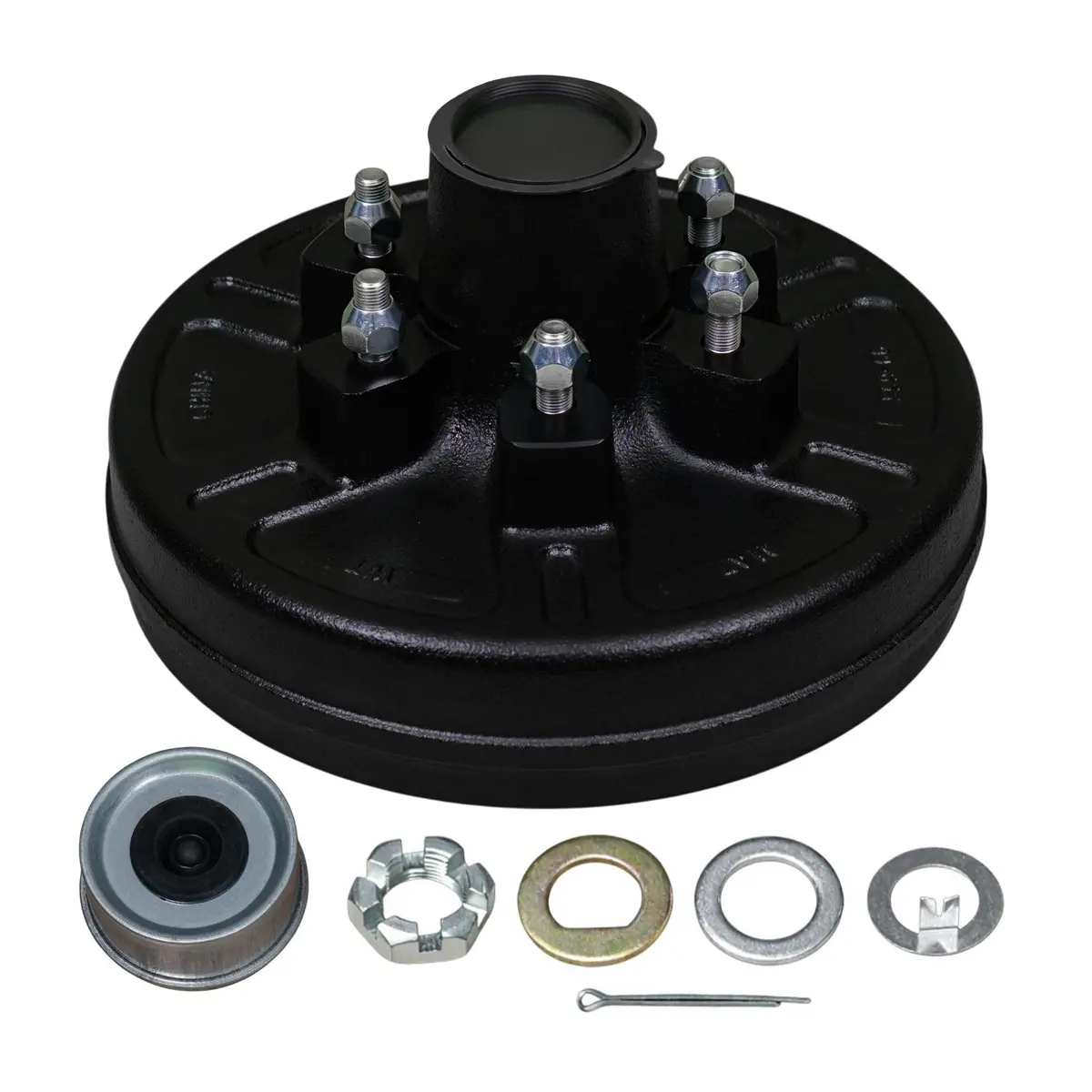

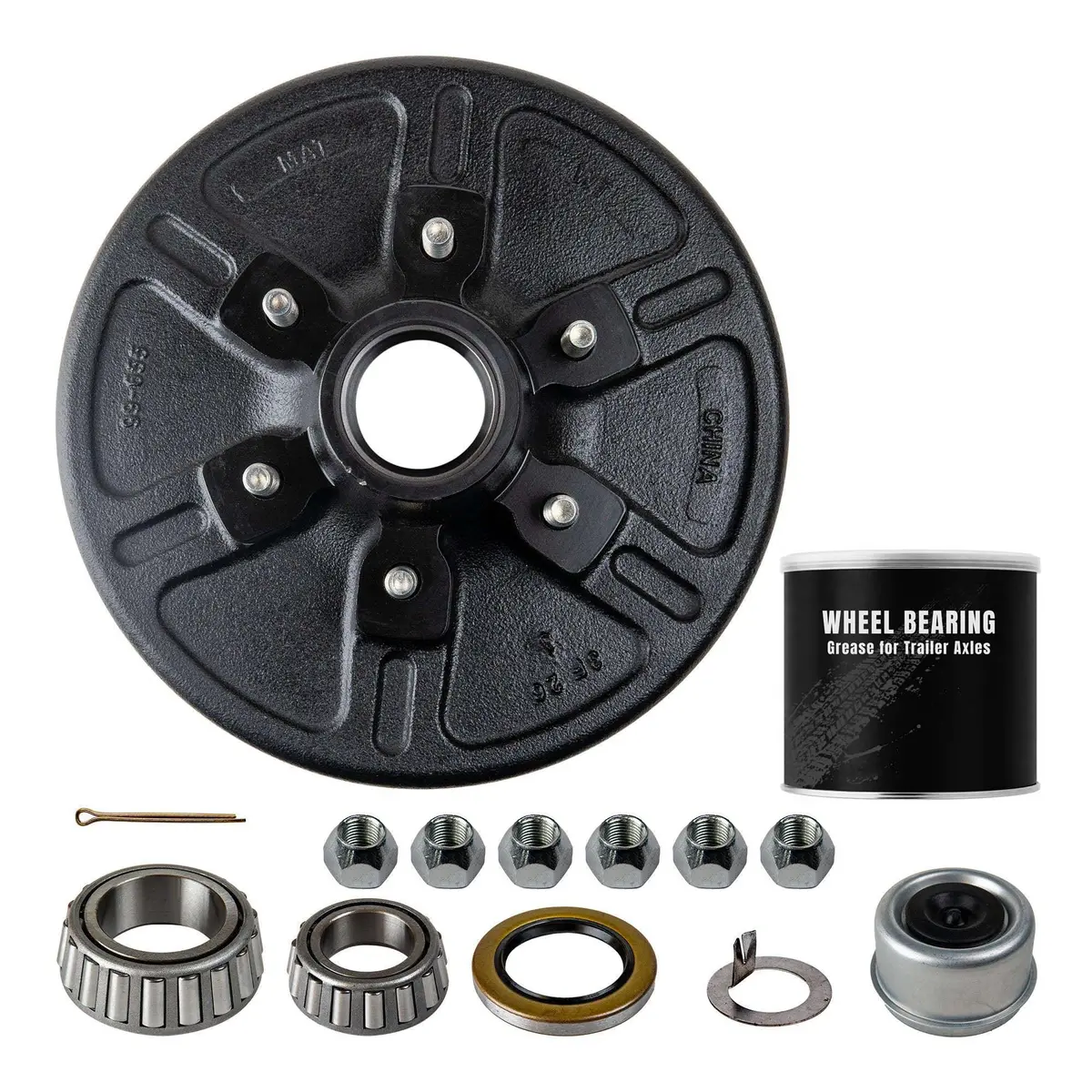

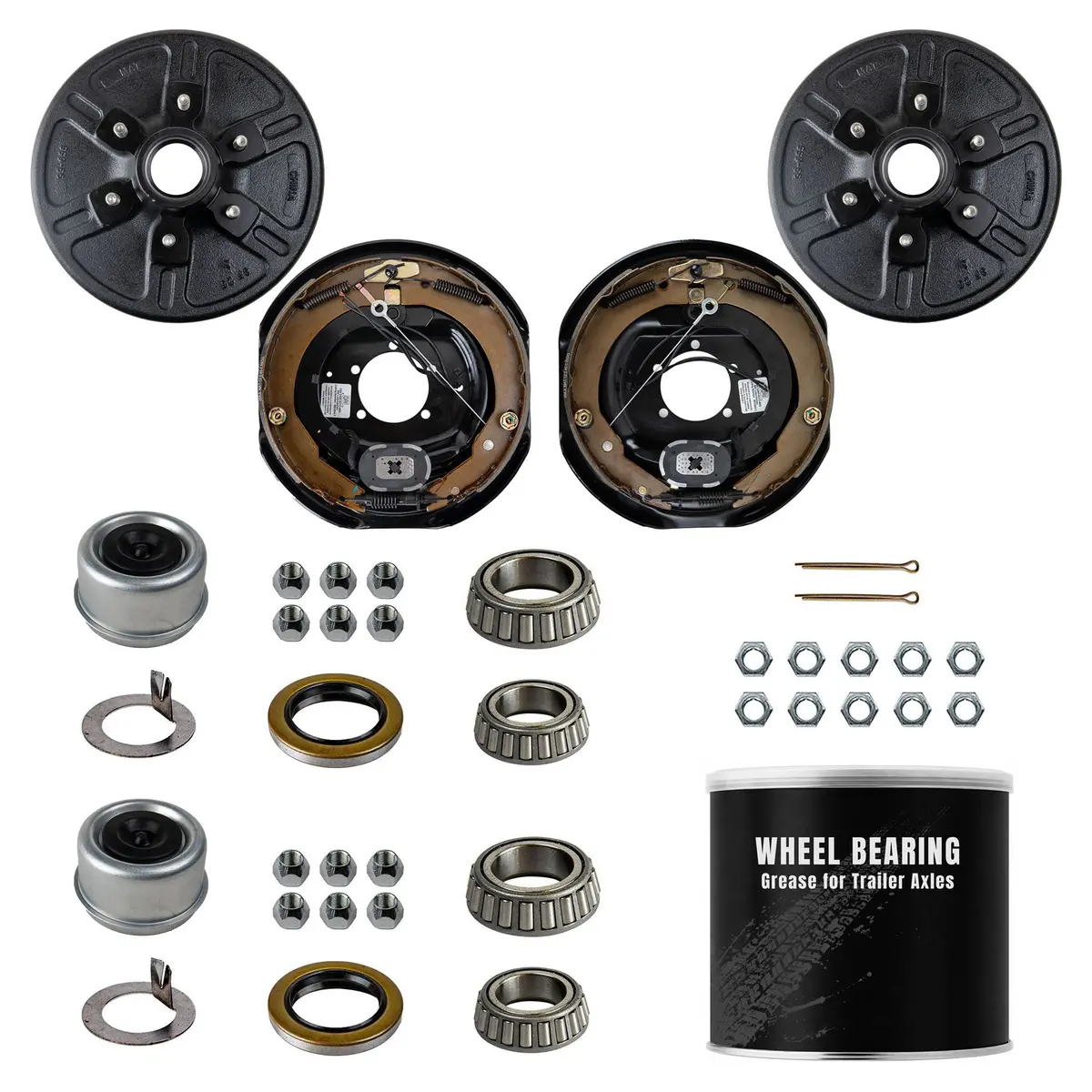

Bearings, grease seal, grease cap, wheel nuts, and spindle retainer are sold separately. To simplify your installation, you can add the complete hardware kit upgrade available above.

Compatibility:

Fits most 6000 lb trailer axles using:

• 25580 Inner Bearing

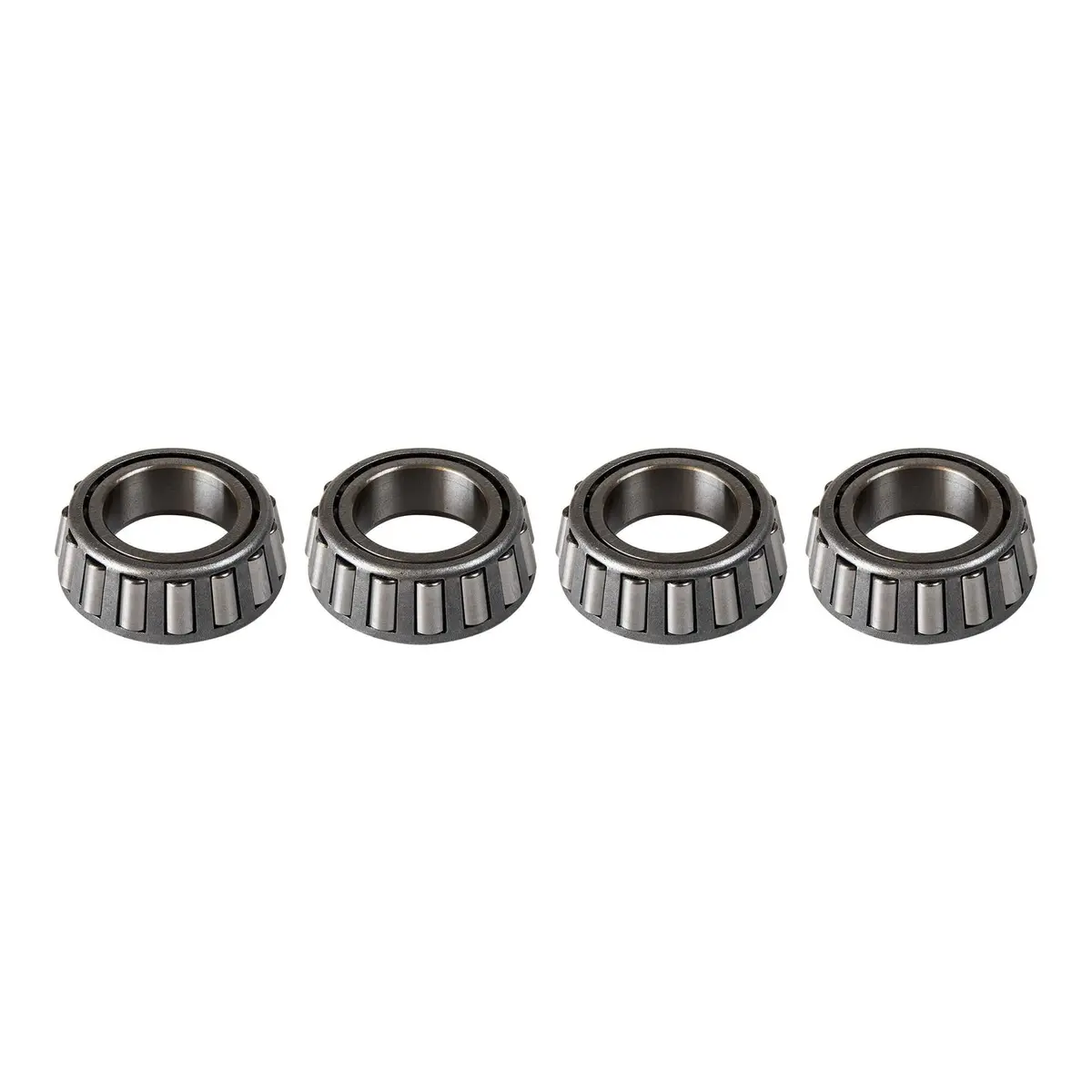

• 15123 Outer Bearing
• 10-36 Grease Seal
• 6-Lug Wheels (6 on 5.5″)

Always confirm your axle spindle and bearing numbers before ordering.

Ideal For:

• Utility trailers
• Cargo trailers
• Landscape trailers
• Equipment trailers
• Custom trailer builds

Built for Reliable Trailer Performance

This 6K hub drum is designed for standard trailer applications. The durable black painted finish provides basic corrosion protection for everyday use.

Perfect for customers who already have bearings and seals on hand or prefer to source components separately.

Strong. Simple. Ready to Build.

Order today and get a dependable 6000 lb trailer hub & drum built for long-lasting performance.
