Description
When ordering raw materials, you can expect minor rust and oils that will need to be cleaned upon arrival to you.
Contents:
- (4) 6 Leaf 25 1/4″ x 1 3/4″ Trailer Double Eye Spring for 7000 lb Axles
- (8) 7″ Long U-bolts
- (4) U-bolt Tie Plates for 1-3/4″ or 2″ Spring
- (16) 1/2″-20 Hex Nuts
- L=7″ A=3″ D=1/2″
- 6) 4″ tall front and rear hangers
- 2) 7-3/4″ long triangle equalizers
- 8) 2-5/8″ long shackle straps
- 14) 3″ long x 9/16″ diameter shackle bolts
- 14) 9/16″ diameter lock nuts
Features:
- Spring Specs: Number of leaves: 6, 1.75″ Wide, 25.25″ Long (from center to center of the eyes), 9/16″ Eye Diameter, Nylon Bushing, 3500 lb capacity each, Axle capacity: 7000 lbs.

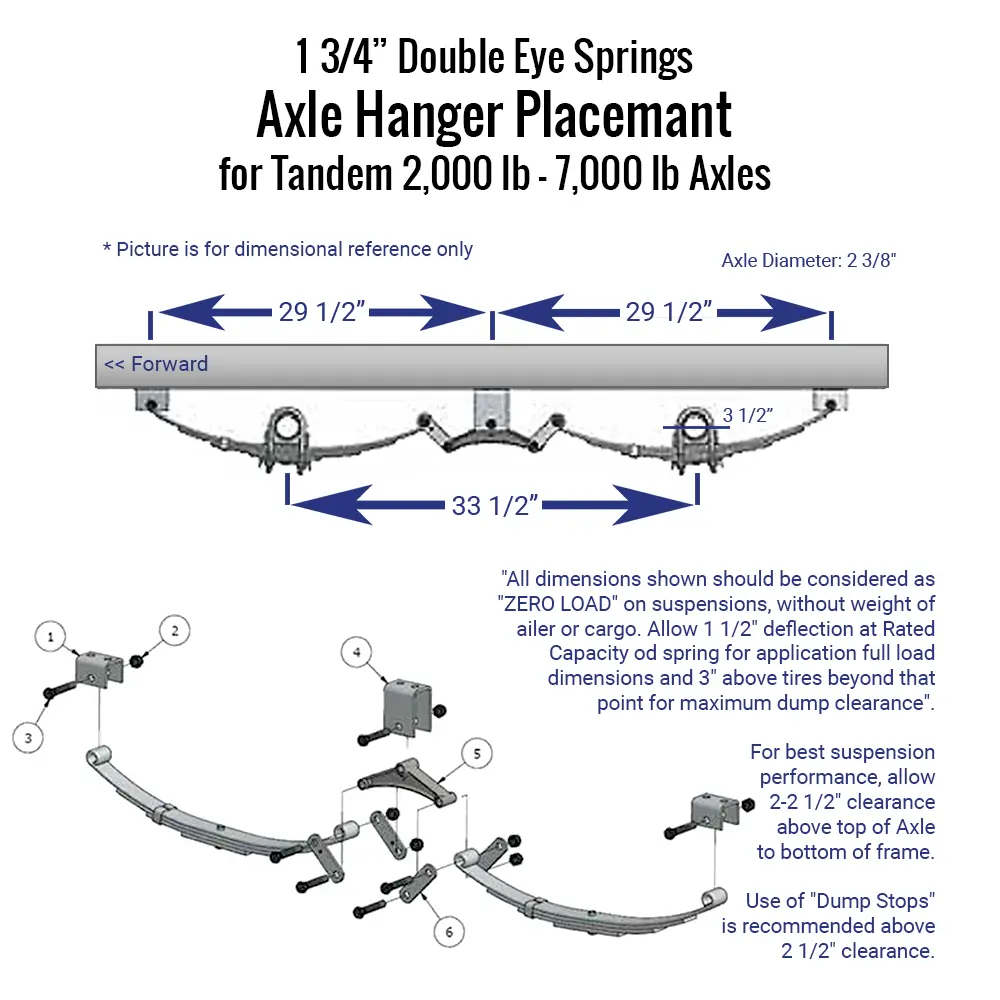

- This kit has everything you need to mount your trailer’s 3″ round axle.
- Spring seats required for mounting axle to leaf spring sold separately.
- Will replace Suspension on Axle Brands: Dexter, AlKO, Hayes, Rockwell American, Quality Axles.
- This kit is for a Tandem axle 7K (14K total) setup
