26-Foot Gooseneck Trailer Plan #26Xt – 20-Step Tandem-Axle DIY Guide

Description

TK Trailer Kit – Master Plan 26XT – 102″ x 26″ Tandem Axle 14K Gooseneck Trailer (Original Series)

If you are building a 14K gooseneck trailer from scratch, this 26XT Master Plan gives you everything you need to do it the right way. You get engineer stamped blueprints, a complete bill of materials, welding guidance, and a full TK trailer parts kit designed specifically for this plan. This saves you time and keeps your build accurate.

Copyright Disclaimer

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means without prior written permission from the publisher except for brief quotations in reviews or other non commercial uses allowed by copyright law. Purchase of this product confirms agreement with this disclaimer.

Trailer Specifications

• Bed size: 26 feet by 102 inches
• Gross capacity: 14,000 lbs
• Empty weight: 4,150 lbs
• Empty tongue weight: 1,730 lbs
• Frame: rectangular tube and channel
• Deck: diamond plate or wood
• Adjustable coupler
• Dual side wind jacks
• Ramps with rear storage pockets
• Chain pockets with heavy rails on both sides
  **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

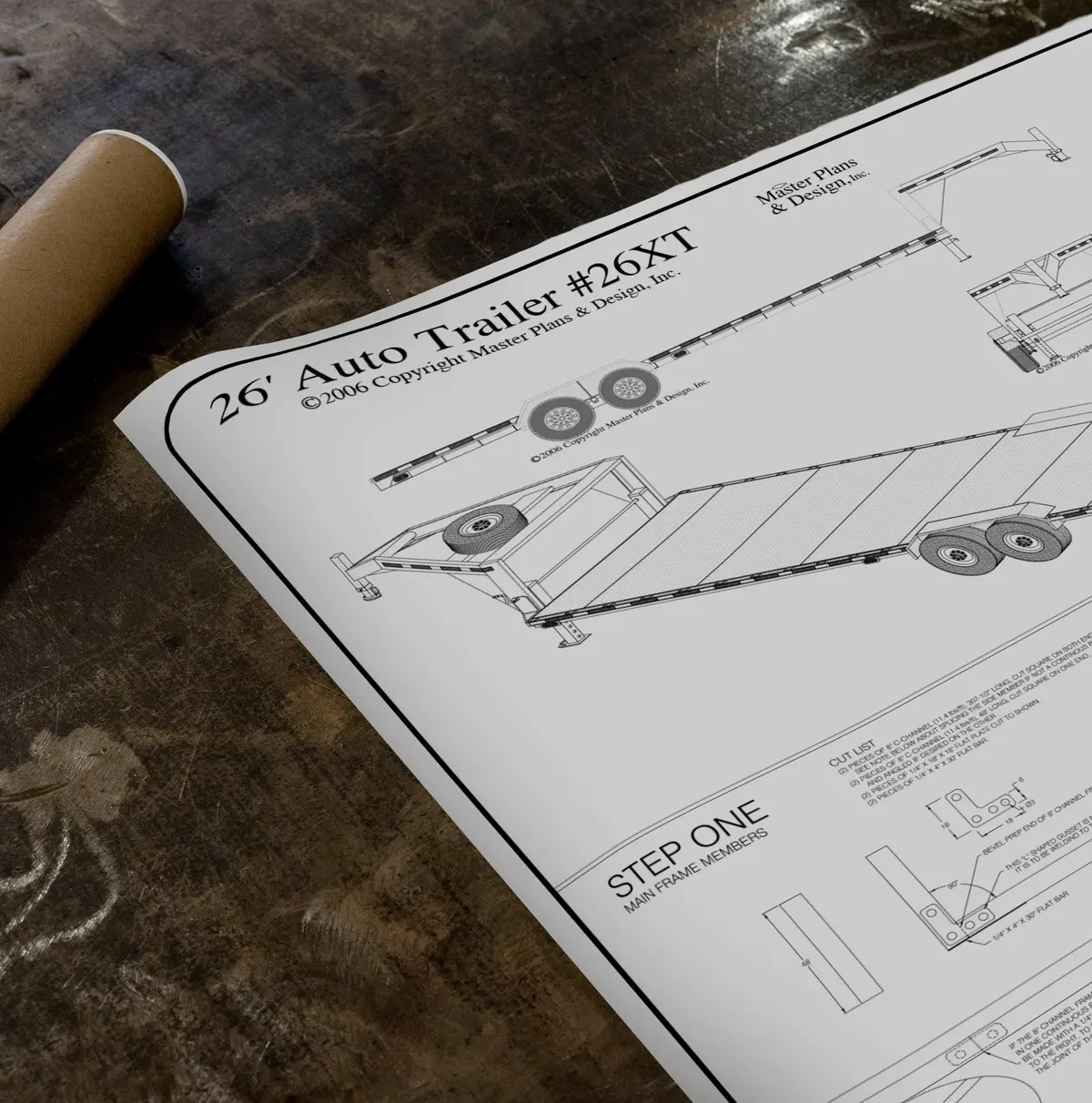

Blueprint and Plan Features

• Engineer approved and stamped 24 by 36 inch full size blueprints
• Suitable for school shop classes, agriculture programs, fabrication shops, and DIY builders
• Detailed cut list with full bill of materials
• Welding tips included
• TK trailer kit tailored to match the exact plan so all parts fit correctly
• Matching complete trailer kit available as listed below

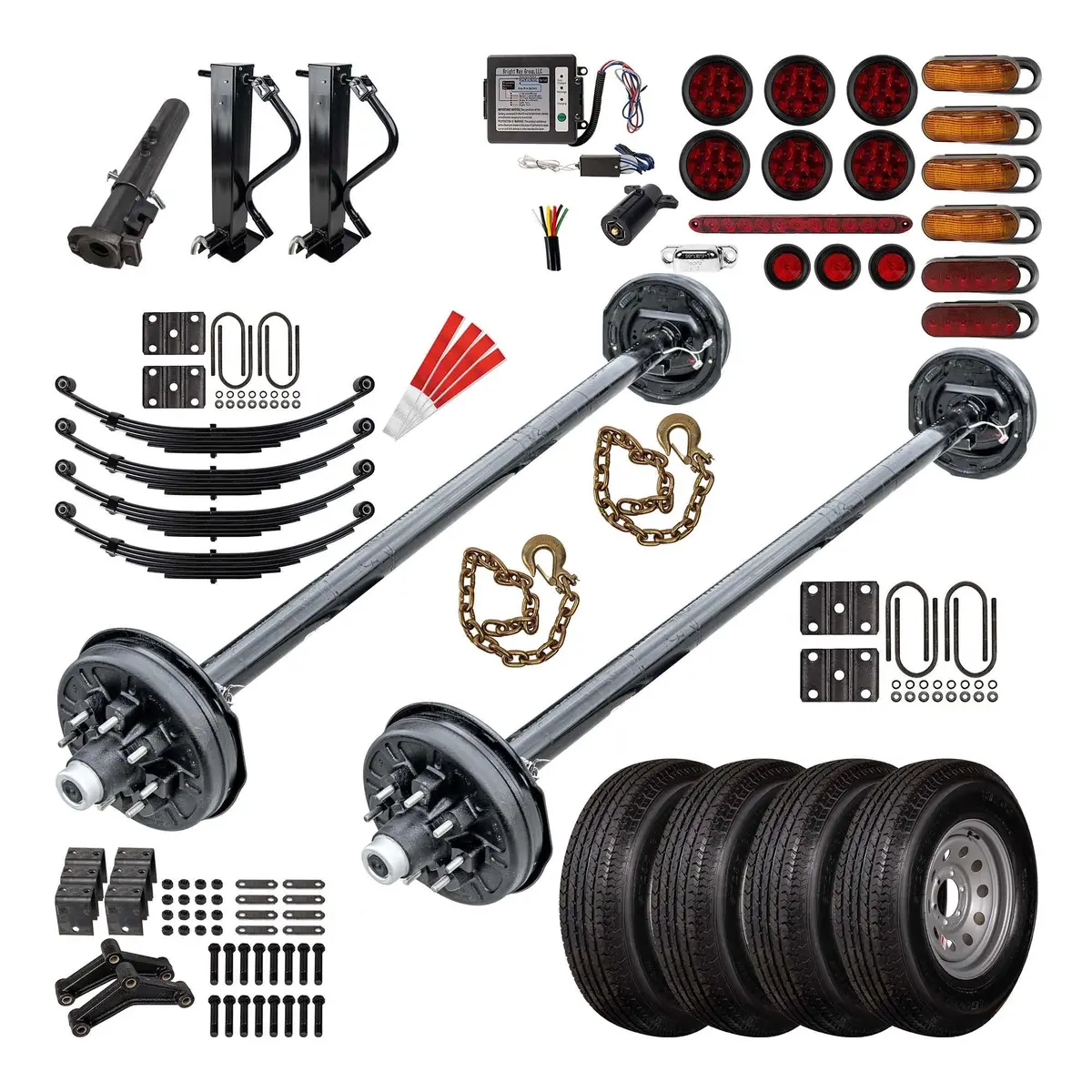

What’s Included in the 14K Gooseneck Trailer Kit

Axle and Suspension

• 2 – 7K electric brake axles, 8 on 6.5 bolt pattern, 95/80
• 2 – U bolt kits for 5200 to 7000 lb axles, half inch diameter
• 1 – Double eye tandem hanger kit for 3500 to 7000 lb axles
• 4 – Six leaf double eye springs for 7000 lb axles

Wheels and Tires

• 4 – 16 inch 10 ply radial tire wheel assemblies, ST 235/80R16, 8 lug, silver or gray finish

Coupler and Jacks

• 1 – 25K gooseneck coupler, adjustable round, 2 and 5/16 inch
• 2 – 12K drop leg jacks, side pin, spring loaded, with handles

Lights and Wiring

• 6 – Four inch round sealed red LED stop turn tail lights
• 6 – Four inch flush mount grommets
• 2 – Red six inch oval LED stop turn tail lights
• 4 – Amber six inch oval LED lights
• 6 – Six inch flush mount grommets
• 6 – Three prong pigtails for LED lights
• 1 – Rectangular license plate light
• 3 – Two inch round sealed red LED marker lights
• 3 – Two inch flush mount grommets
• 3 – Two pin pigtails for two inch lights
• 1 – Seven way plug
• 40 feet of six way 14 gauge cable

Safety Components

• 2 – Safety chains, three eighths by thirty nine inches, clevis hook, 27.4K capacity
• 16 – DOT reflective tape strips, 18 inches each
• 1 – 12V trailer breakaway kit

Blueprint Package

• 1 – 26XT Gooseneck Trailer Master Plan blueprint set

Fast Shipping and Custom Axle Options

Orders ship quickly so you can get your trailer back on the road without delays. If you need a custom axle built to your exact measurements, call our team at (936) 289 3191 for help.
