Specs:
- Box Size: 10’x8’2″
- Gross Capacity: 2000 lbs
- Empty Weight: 937 lbs
- Empty Tongue Weight: 115 lbs
- Frame: Angle Steel
- Deck: Wood or Steel
- Supports 12″ Wheels
- Single Axle
- **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**
Features:
- Engineer Approved & Stamped Full Sized 24″ x 36″ Blueprints
- Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
- Detailed Cut List w/ Full Bill of Materials & Welding Tips
- Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.
Trailer parts kit specifically made for this plan is available in the option above.

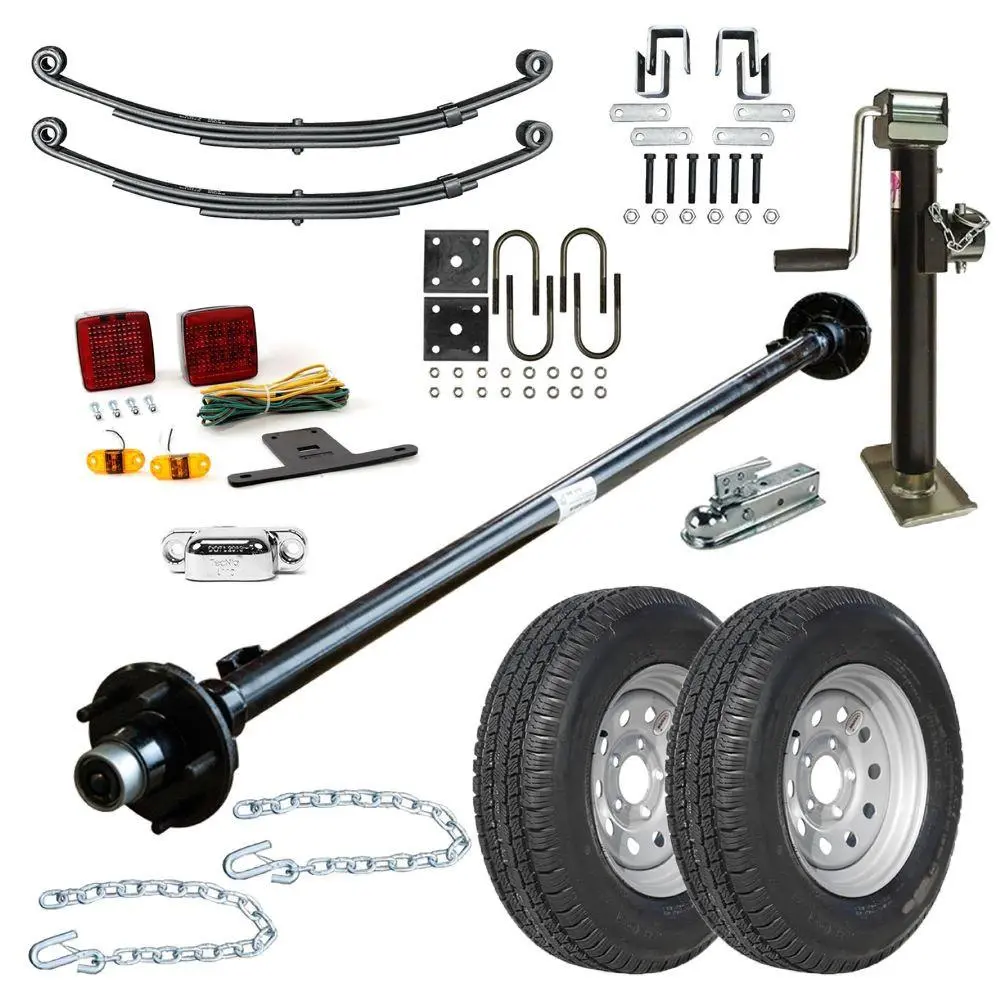

What’s Included with Trailer Kit:
- 1 – 2k Trailer Axle – 2000 lb Idler 5 lug(71/58)
- 1 – 2K U-bolt Kit
- 2 – 3 Leaf Double Eye Springs for 2000 lb Axle
- 1 – Single Axle Hanger Kit
- 1 – 2K Straight Tongue Trailer Coupler 2000lb 2″x3″x1 7/8″
- 2 – Silver Trailer Safety Chain – 1/4×31″ (5k Capacity)
- 1 – Pipe Mount Jack – 5k Trailer Jack 5000 lb Side Wind
- 1 – Trailer Jack Footplate
- 2 – 13″ 6 ply Radial TWA – ST 175/80R13 – 5×4.5 TWA (Tire Wheel Assemblies) – Wheel Color: Silver/Gray Finish
- 1 – LED Light Kit
- 1 – License Plate Light-Rectangular
- 1 – License Plate Bracket

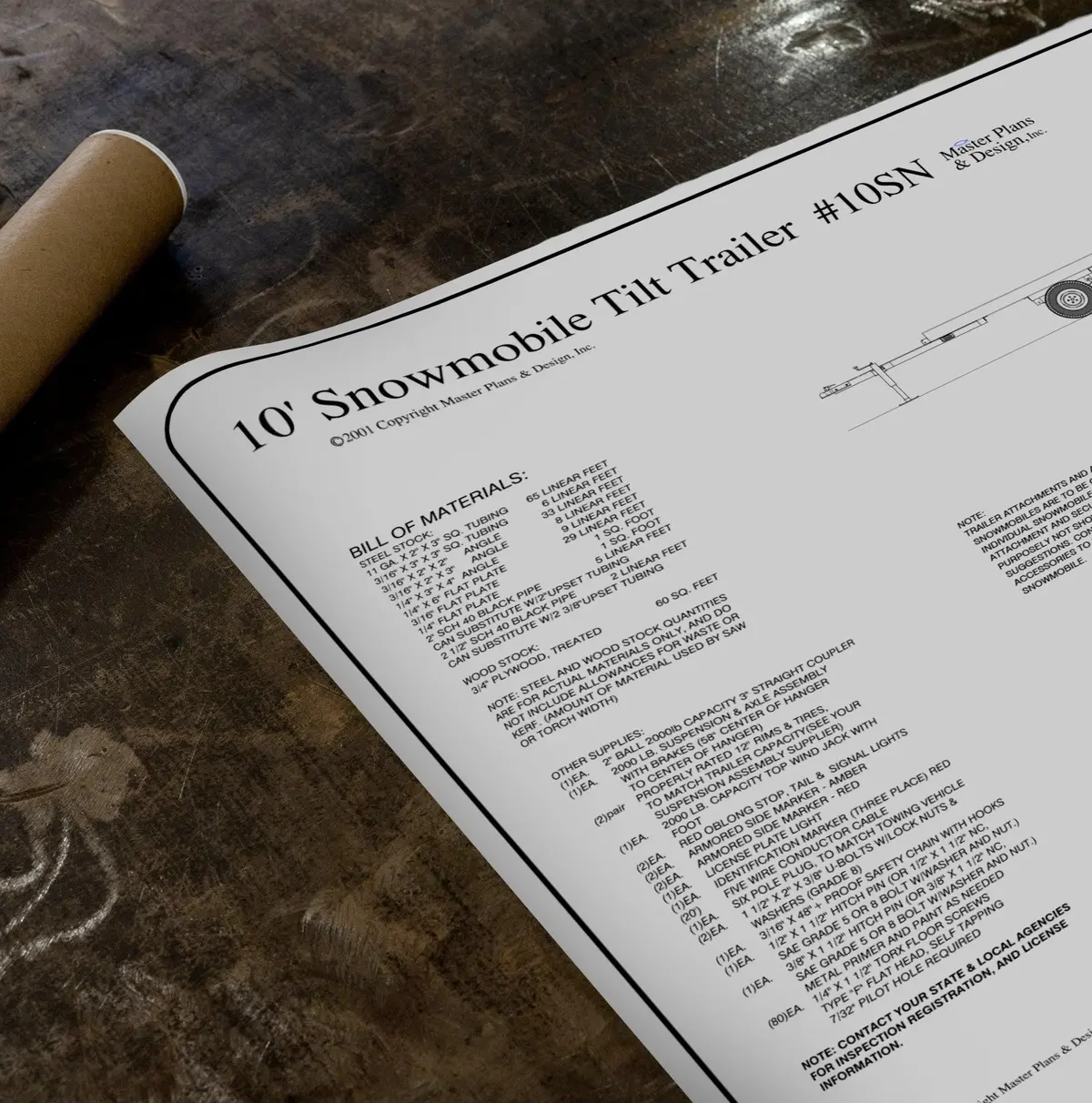

- 1 – 10SN Snowmobile Tilt Deck Master Plan Blueprint
TK Trailer Kit – Master Plan 10SN – Snowmobile Tilt Deck Trailer (Original Series)
