Weld-On #42 Spindle with Flange – Engineered for 7000 Lb Trailer Axles

Description

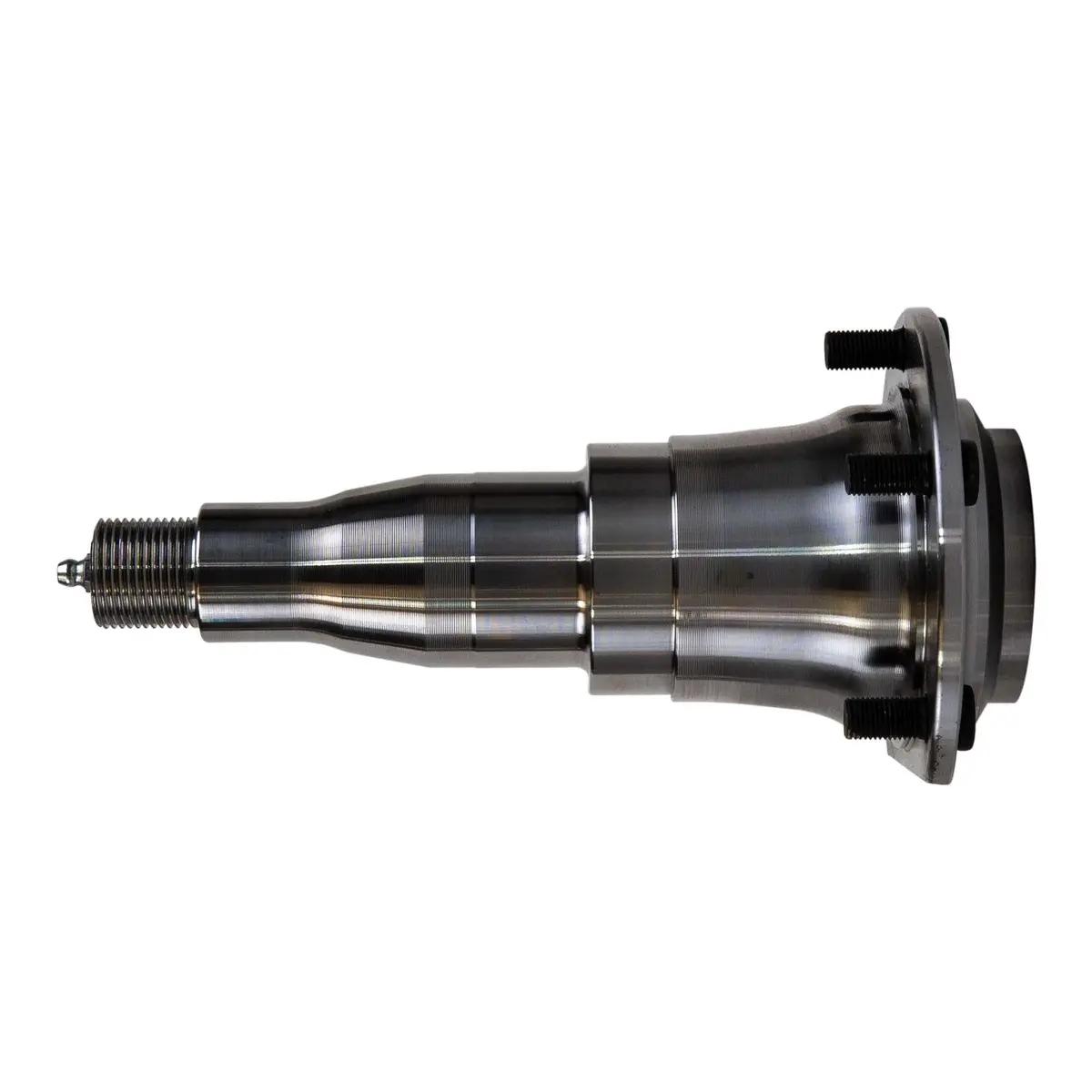

Spindle Only Specs:

• 1 – 7,000 lb Weld-On Spindle
• Application: 7k trailer axles
• Spindle capacity: 3,500 lb
• Overall spindle length: 8.5″

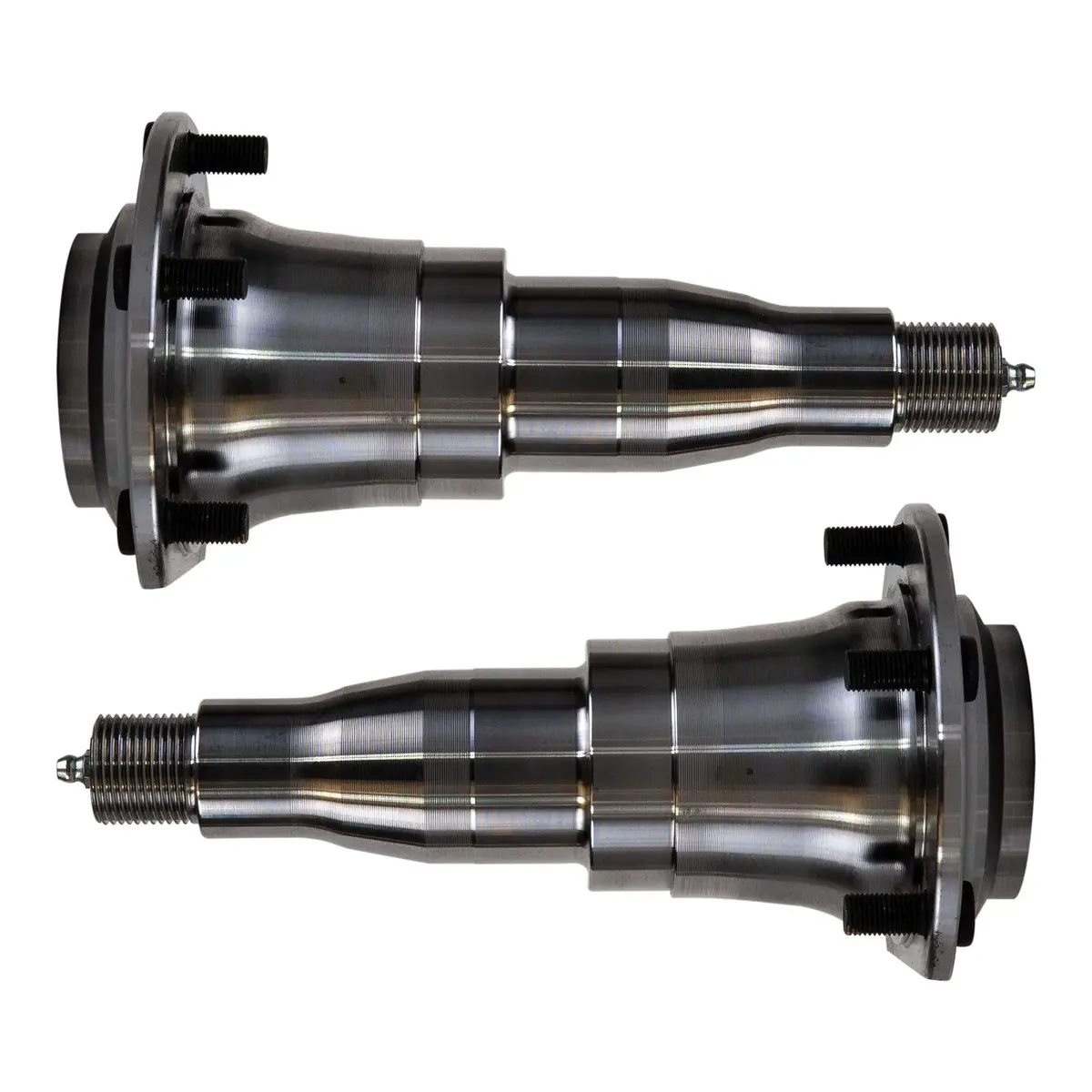

Spindle Pair Specs:

• 2 – 7,000 lb Weld-On Spindle
• Application: 7k trailer axles
• Spindle capacity: 3,500 lb
• Overall spindle length: 8.5″

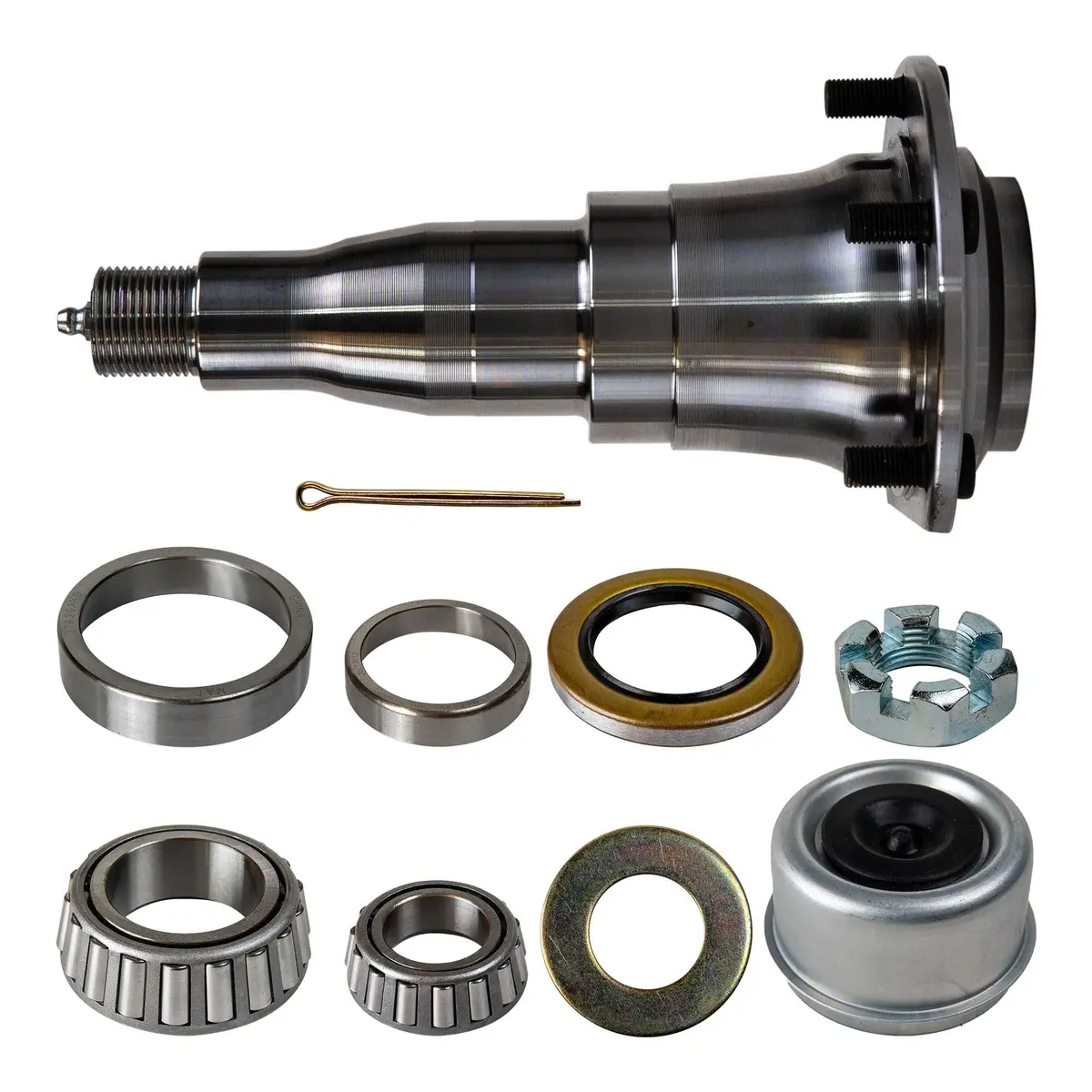

Spindle Kit Specs:

• 1 – 7,000 lb Weld-On Spindle
• 1 – 7K (7000 lb Capacity) Bearing Kit
  • 1 – 14276 Outer Race 2.717″ OD
  • 1 – 25520 Inner Race 3.265″ OD
  • 1 – 25580 Inner Bearing 1.750″ ID
  • 1 – 14125A Outer Bearing 1.25″ ID
  • 1 – 10-36 Grease Seal 3.376″ OD 2.250″ ID
  • 1 – 7,000 lb Grease Cap with Plug
  • 1 – Cotter Pin
• 1 – Spindle Washer
• 1 – Spindle Nut

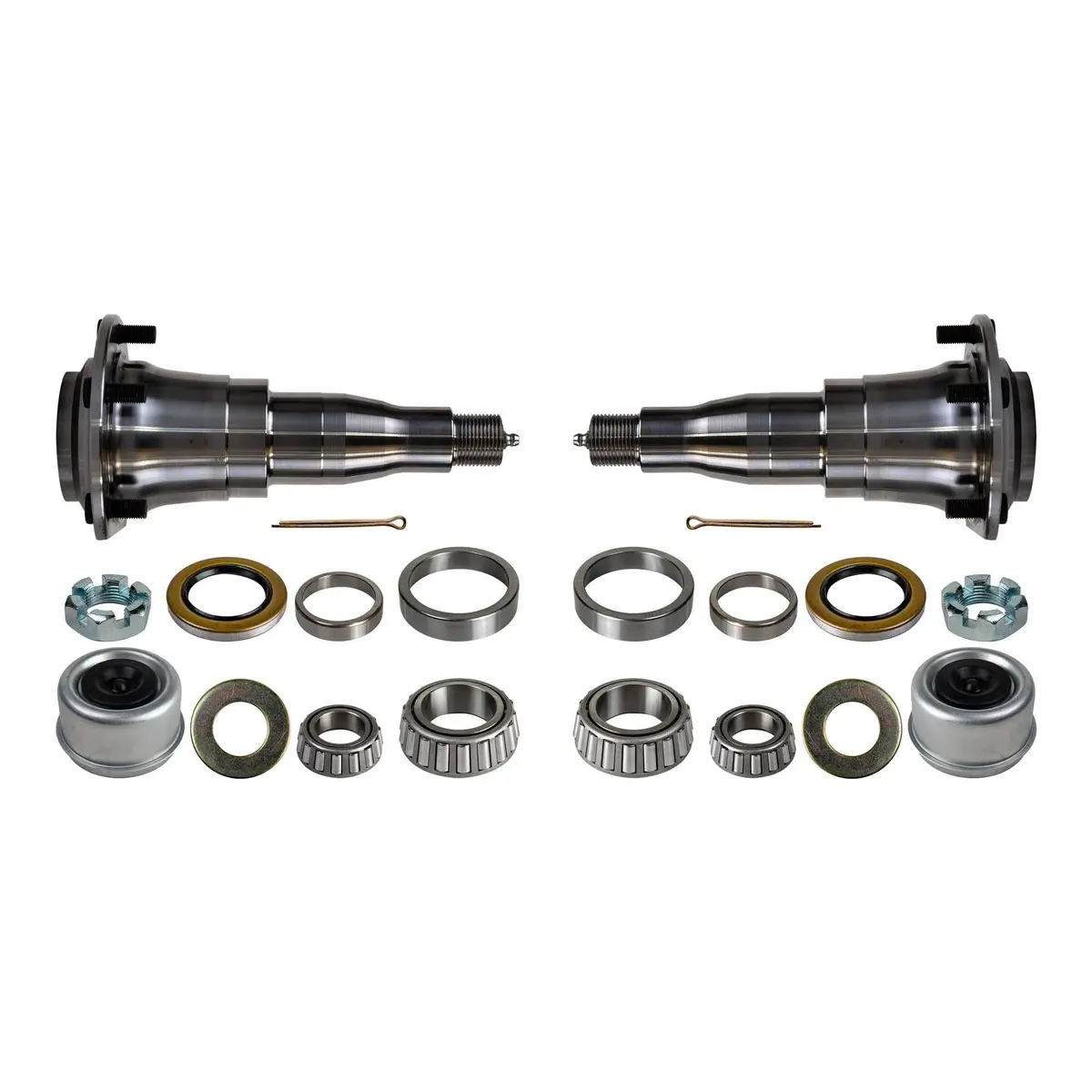

Spindle Kit Pair Specs:

• 2 – 7,000 lb Weld-On Spindle
• 2 – 7K (7000 lb Capacity) Bearing Kit
  • 2 – 14276 Outer Race 2.717″ OD
  • 2 – 25520 Inner Race 3.265″ OD
  • 2 – 25580 Inner Bearing 1.750″ ID
  • 2 – 14125A Outer Bearing 1.25″ ID
  • 2 – 10-36 Grease Seal 3.376″ OD 2.250″ ID
  • 2 – 7,000 lb Grease Cap with Plug
  • 2 – Cotter Pin
• 2 – Spindle Washer
• 2 – Spindle Nut

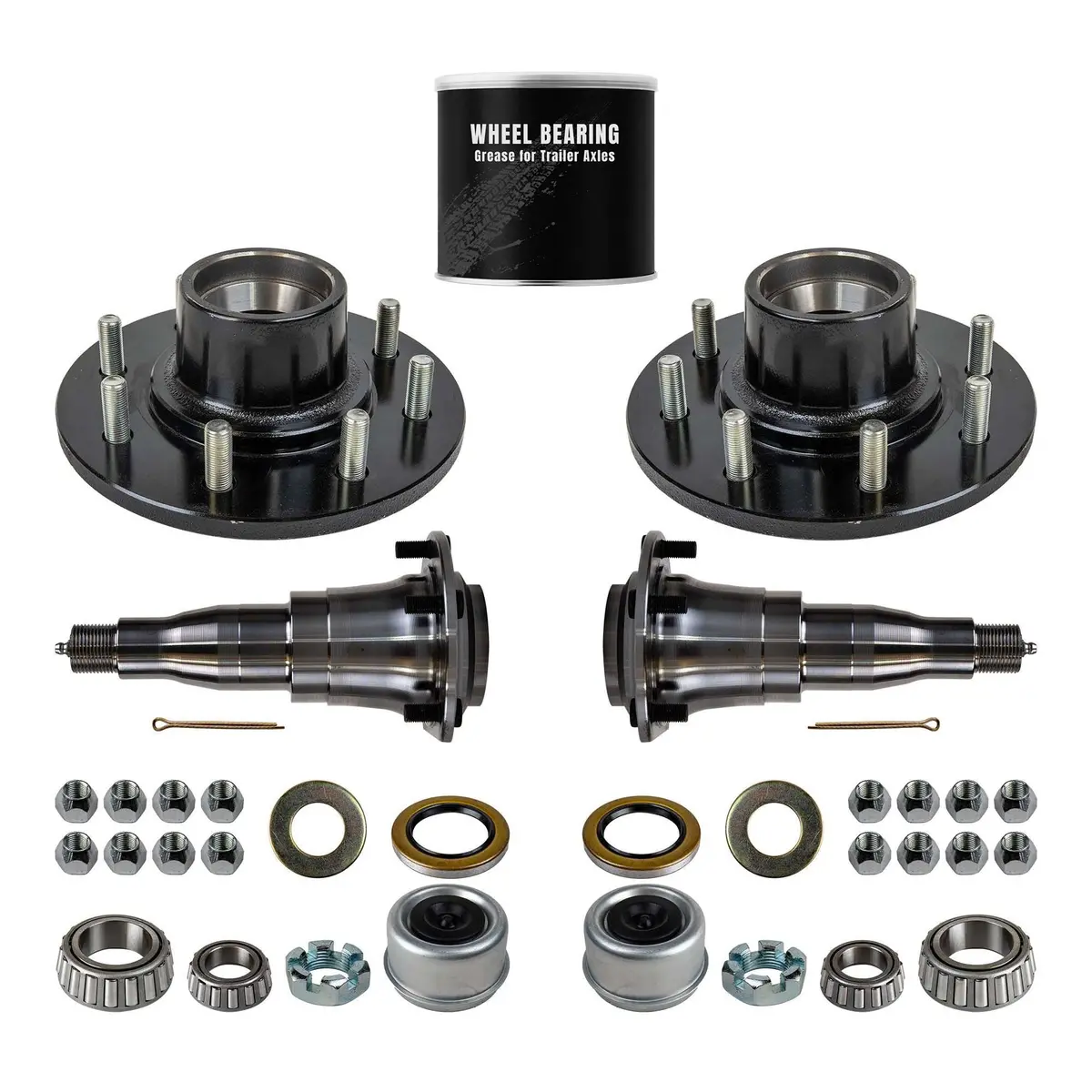

Weld Your Own Idler Axle Kit Specs:

• 2 – 7,000 lb Weld-On Spindle
• 2 – 7k Idler Hub 8×6.5 Bolt Pattern
• 2 – 7K (7000 lb Capacity) Bearing Kit
  • 2 – 14276 Outer Race 2.717″ OD (Pre-Pressed In Hub)
  • 2 – 25520 Inner Race 3.265″ OD (Pre-Pressed In Hub)
  • 2 – 25580 Inner Bearing 1.750″ ID
  • 2 – 14125A Outer Bearing 1.25″ ID
  • 2 – 10-36 Grease Seal 3.376″ OD 2.250″ ID
  • 2 – 7,000 lb Grease Cap with Plug
  • 2 – Cotter Pin
• 2 – Spindle Washer
• 2 – Spindle Nut
• 16 – Cone Wheel Lug Nuts
• 1 – Grease Tub (1 lb)

Weld Your Own Brake Axle Kit Specs:

• 2 – 7,000 lb Weld-On Spindle
• 2 – 7k Brake Drum 8×6.5 Bolt Pattern
• 1 – Left (Driver Side) 12″x2″ Brake Assembly
• 1 – Right (Passenger Side) 12″x2″ Brake Assembly
• 2 – 7K (7000 lb Capacity) Bearing Kit
  • 2 – 14276 Outer Race 2.717″ OD (Pre-Pressed In Drum)
  • 2 – 25520 Inner Race 3.265″ OD (Pre-Pressed In Drum)
  • 2 – 25580 Inner Bearing 1.750″ ID
  • 2 – 14125A Outer Bearing 1.25″ ID
  • 2 – 10-36 Grease Seal 3.376″ OD 2.250″ ID
  • 2 – 7,000 lb Grease Cap with Plug
  • 2 – Cotter Pin
• 2 – Spindle Washer
• 2 – Spindle Nut
• 16 – Cone Wheel Lug Nuts
• 10 – Brake Mounting Nuts
• 1 – Grease Tub (1 lb)

This 7K trailer axle spindle is designed for Dexter, TK, and Rockwell American axles. It can provide the fit that you need to get your trailer back on the road. It’s high-quality construction helps it stand up to daily wear and tear, so no matter where your next job takes you, you can feel confident that your spindle will keep your trailer rolling.

Features:

• Weld-on installation
• Sturdy steel construction
• Works with 7K bearing kit (sold separately)
  • 7K (7000 lb Capacity) Bearing Kit
