Description
Shogun designed the EB3 for recreational riders who are chasing a fitter version of themselves and commuters who want the ride into work to be a little more forgiving.
The EB3 is an entry-level hybrid electric bike, suitable for sealed bike paths, rail trails and urban environments.
The Bafang Motor is a rear hub drive, offering 45Nm of torque that kicks in when you pedal, helping you breeze up hills and push further on flats. You can control your assistance level from your handlebars with an LCD screen.
The Shogun EB3 sits at a very affordable price for quality and reliable components on an electric bike, including 7-speed Shimano gears and mechanical disc brakes.
HIGHLIGHTS
- Designed for recreational riders and commuters
- Entry-level hybrid e-bike, suitable for bike paths, rail trails, and urban environments, handling both smooth dirt and concrete paths
- Pedal-Assist: Bafang Rear Hub Drive System: provides 45Nm of torque, requires pedalling to activate
- Battery: Integrated Battery uses Samsung cells, 374 Watt-hours, and can be charged on or off the bike. The bike includes two spare keys for battery removal.
- Display: An LCD screen on the handlebar shows speed, battery level, distance, and assistance level.
- 7-speed gear system
- Mechanical Disc Brakes
- Tyres: 700C x 38C hybrid tyres roll over mixed terrain
- Extras included: centre mount kickstand, mudguards, standard wall charger.
A DEEP DIVE
In a world where a new electric bike can cost many thousands of dollars, the EB3 sits at the economical end of the scale.
Yes, you can get cheaper but build quality, battery and power reliability and the quality of mechanical components becomes (very) questionable. The Shogun EB3 sits at a very affordable price for quality and reliable components.
In this preview, we’ll go through some key things you should know about the new EB3 before making the investment.
WHO IS SHOGUN?
The Shogun brand has existed since 1984. They are designed in Melbourne too.
The guys that design these bikes don’t compromise on quality because they don’t want the headaches that come by cutting corners.
And as one of Australia’s largest retailers neither do we.
Because as the market for e-bikes continues to grow, there will be companies that emerge who are out there to make a fast dollar and who will cut corners.
WHAT IS THE EB3?
Shogun’s new EB3 is an entry-level electric bike that’s designed for recreational riders and commuters.
It’s intended for bike paths, rail trails, inner city or suburbia. It can handle both smooth dirt and gravel, plus concrete paths.
In short: it’s an electrified hybrid bike. Hybrid as in, it’s a cross between a road and mountain bike – a jack of all trades.
IT’S REAR HUB DRIVE
The EB3 uses a rear hub drive to deliver power. In this case that drive is the Bafang SWX02.
Bafang has been producing and designing complete e-bike systems since 2003 and is one of the leading manufacturers.
So a little about the drive:
There’s no throttle, so riders must be pedalling for the motor to start delivering assistance and power. As per Australian Standards, the cut-off speed is 25km/h.
The SWX02 has a 45Nm of torque.
It’s ideal for riders who are travelling on gently undulating bike paths and won’t see a lot of aggressive and steep climbing along their route.
For heavier riders (90kg and over) or those who are regularly riding up steep ascents, please consider a mid-drive electric bike. Some options are:
- Shogun EB5
- Giant Roam E+
BATTERY AND ELECTRONICS

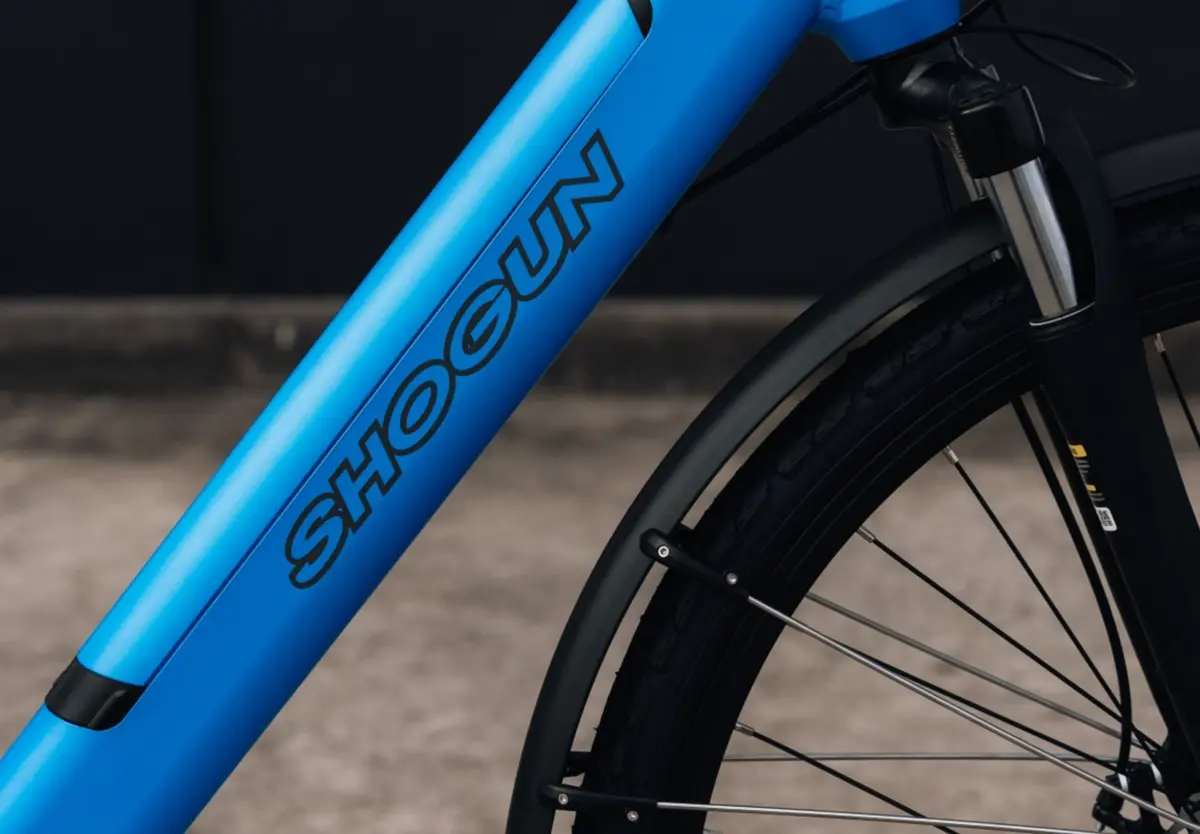

Shogun has used a cleaner integrated battery which looks like it is part of the frame.
The battery uses Samsung cells and it’s sized at 374 Watt-hours (Wh).
And it can either be charged on the bike or removed and charged off the bike.
The EB3 also comes with 2 spare keys; the only purpose of this key is to remove the battery for charging. Note the key hole just below the charge port (in the image below).
An LCD screen on the handlebar displays speed, battery level, distance and assistance level.
THE MECHANICAL STUFF
In this section we’ll cover the normal bike stuff.
There’s 7 gears on the back to control your pedalling speed.
And there’s a single front gear. This keeps the drive system clean and simple because there’s no front derailleur, shifter or cable – less moving parts.
A simple grip-shifter is used to change through the gears.
Next, the EB3 uses mechanical disc brakes to slow its rider down.
These are an improvement over calliper brakes because they have better dry and wet weather stopping power. Plus, it’s a lot easier to transport the bike and remove the wheel.
