Pontiac GTO Oil Cooler Adapter Plate

Description

Pontiac GTO Oil Cooler Thermostat

This is the only oil cooler adapter suitable for both rear sump and front sump vehicles such as the 2004-2006 Pontiac GTO. It is also ideal for rear sump applications where bottom exit lines are preferred, such as the C5 Corvette and 2010-2015 Camaro SS. The EGM-107 is machined from 6061-T6 billet aluminum and is anodized for durability with a custom edge-bonded Viton rubber gasket. This design is patented (US Pat. Number D863,360).

The adapter features an 1/8″ NPT port suitable for an oil pressure or temperature sensor, or for a turbo oil supply line. Features standard female -8AN O-ring boss threads for optional anodized adapter fittings in your choice of -8AN, -10AN or -12AN lines.
The optional bracket relocates the hard power steering line out of the way of the adapter in front sump applications such as the Pontiac GTO and Holden VT-VZ platforms. This is a 100% bolt-on solution; no fabrication, bending or line modification is required.
Features and Benefits

• 100% bolt-on in place of the factory oil bypass cover, just above the oil filter
• 1/8″ NPT port for a sensor or turbo oil feed line
• New edge-bonded aluminum and Viton gasket for maximum reliability
• Oil exiting the adapter is filtered oil
• 6061-T6 billet aluminum construction with black MIL-A-8625 Type II anodized finish
• Optional aluminum power steering line relocation bracket for front sump applications
• Includes all necessary hardware for front or rear sump LS oil pans
• Lifetime Warranty
• Made in the USA

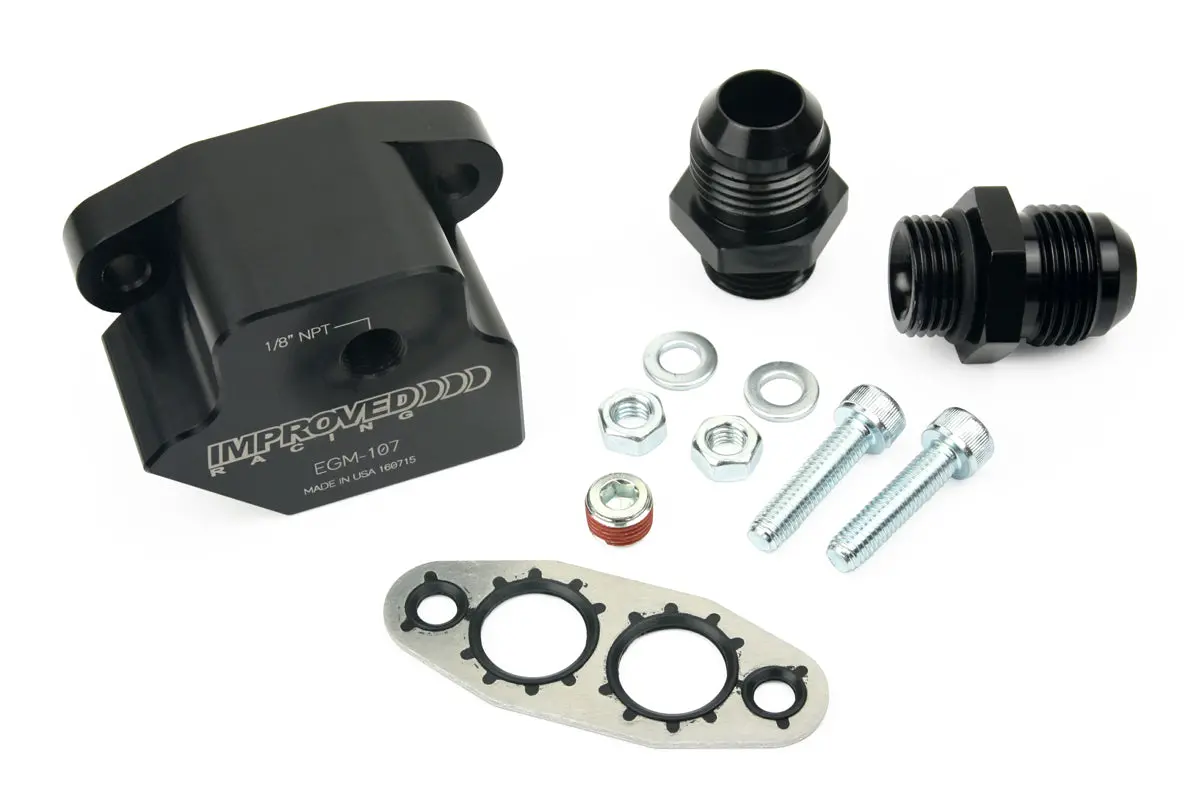

Includes

• 1x Oil cooler adapter block
• 2x Black anodized -8AN, -10AN, or -12AN adapter fittings with Viton O-rings (OPTIONAL)
• 1x aluminum power steering line relocation bracket (OPTIONAL)
• 1x Edge-bonded Viton and aluminum gasket
• 1x 1/8″ NPT plug with thread sealant
• All necessary mounting hardware for front sump and rear sump applications

Installation Notes

• We recommend using one 90-degree and one 45-degree AN fitting to connect the oil lines to this adapter

Applications

• All GM LS engine oil pans, both front and rear sumps
• Clears LSX block
• Fits front-sump applications such as:
  • 2004-2006 Pontiac GTO
  • 2001-2005 Holden Monaro (V2 VC8 & VZ)
  • 1999-2006 Holden Commodore (VT, VX, VY & VZ)
  • 1999-2006 Holden Commodore Ute
  • 1999-2006 Holden Statesman (WH, WK, WL)
  • 1999-2006 Holden Caprice (WH, WK, WL)
  • 2001-2006 Vauxhall Monaro
  • Other vehicles equipped with the GM front-sump oil pan part number 12599397, 12599398, 12581209, or 12581210.

Available in -8AN, -10AN, or -12AN
