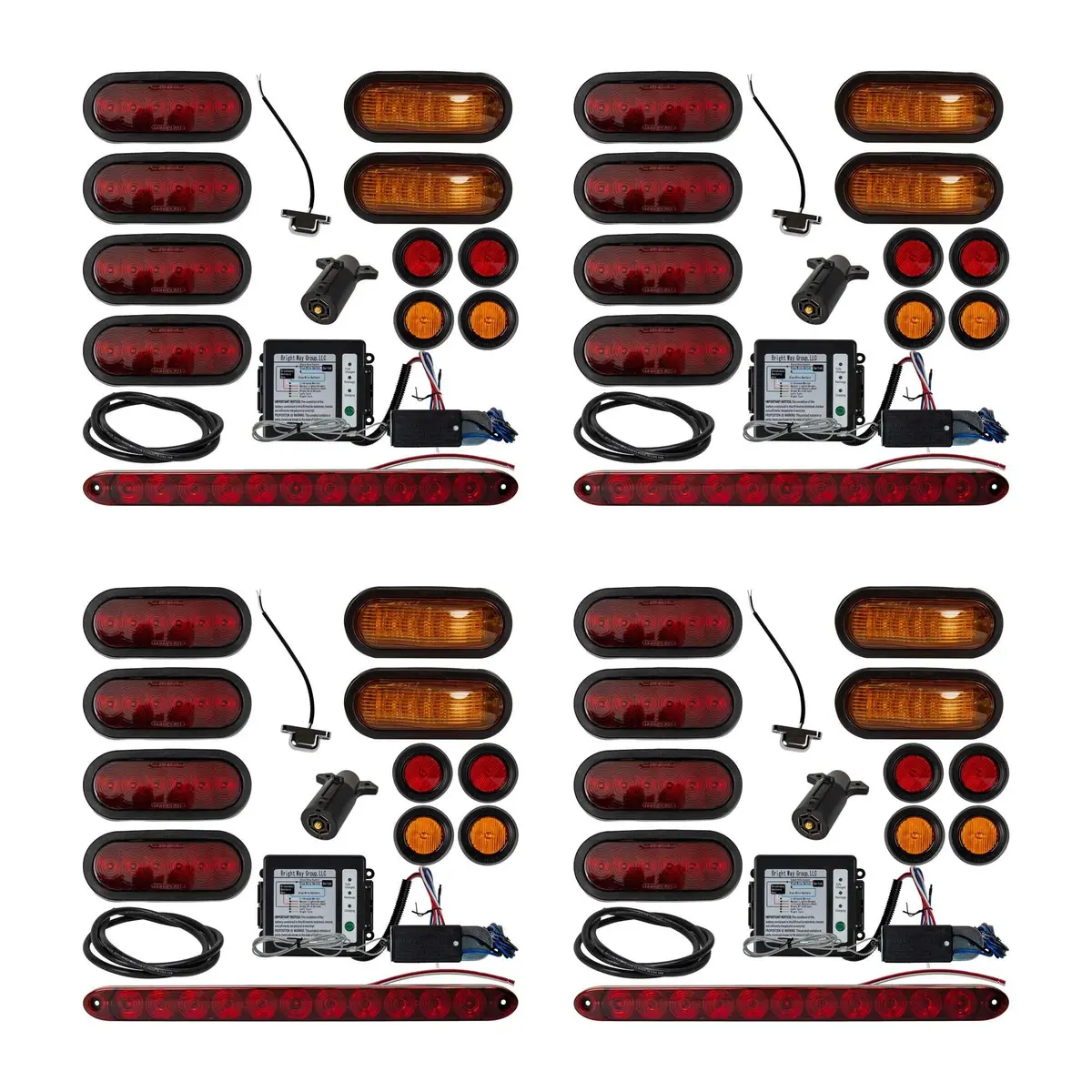

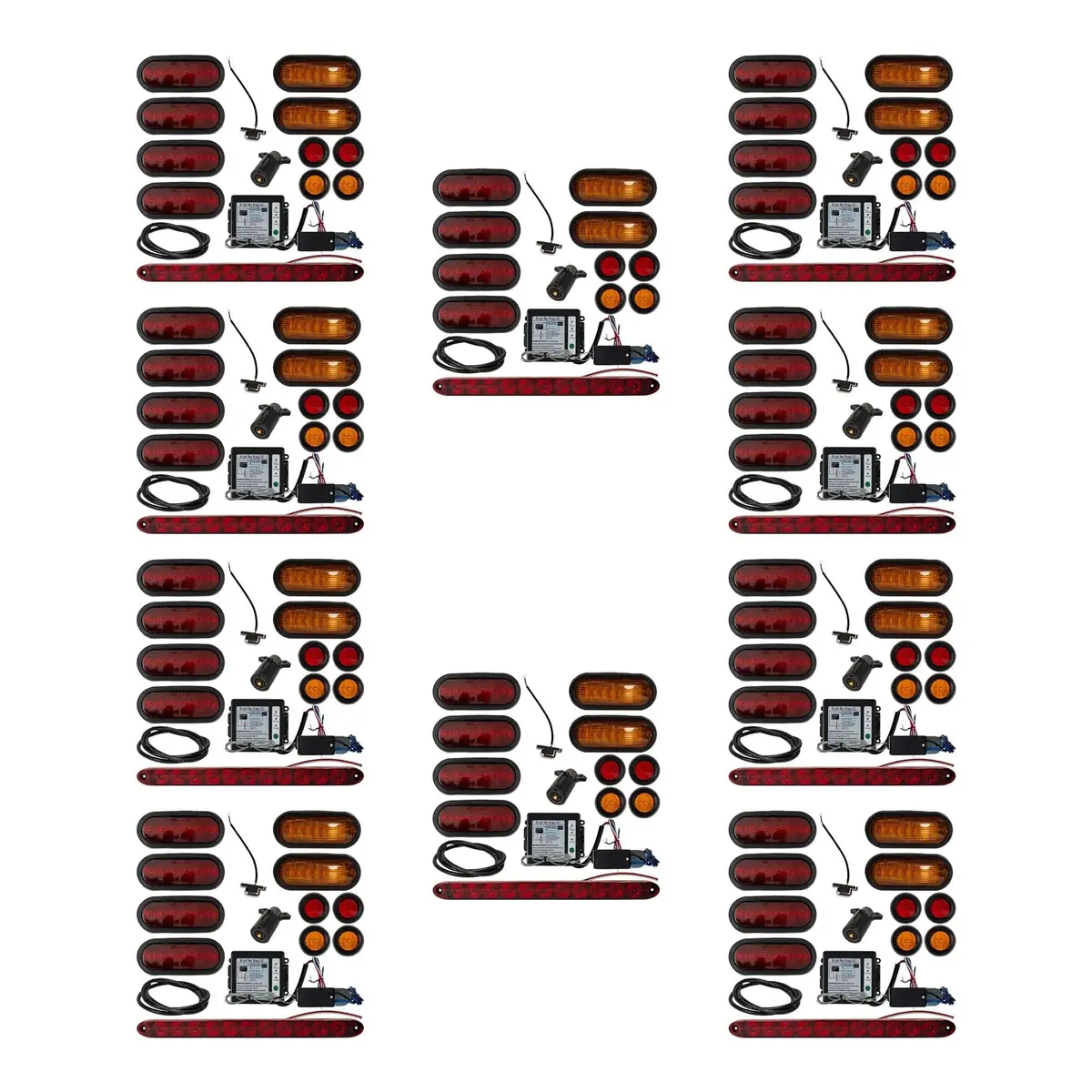

Oval LED Gooseneck Trailer Light Kit

Description

What’s Included:

• 4 – 6″ Oval 6 LED STT Grommet Mount Red Lens With Pigtail
• 2 – 6″ Oval 6 LED Turn Dual Intensity Grommet Mount Amber Lens With Pigtail
• 2 – 2″ Round Sealed LED Marker/Clearance Lights – Amber
• 2 – 2″ Round Sealed LED Marker/Clearance Lights – Red
• 1 – LED Sealed ID Light Bar Red Low Profile ID Bar Red Lens

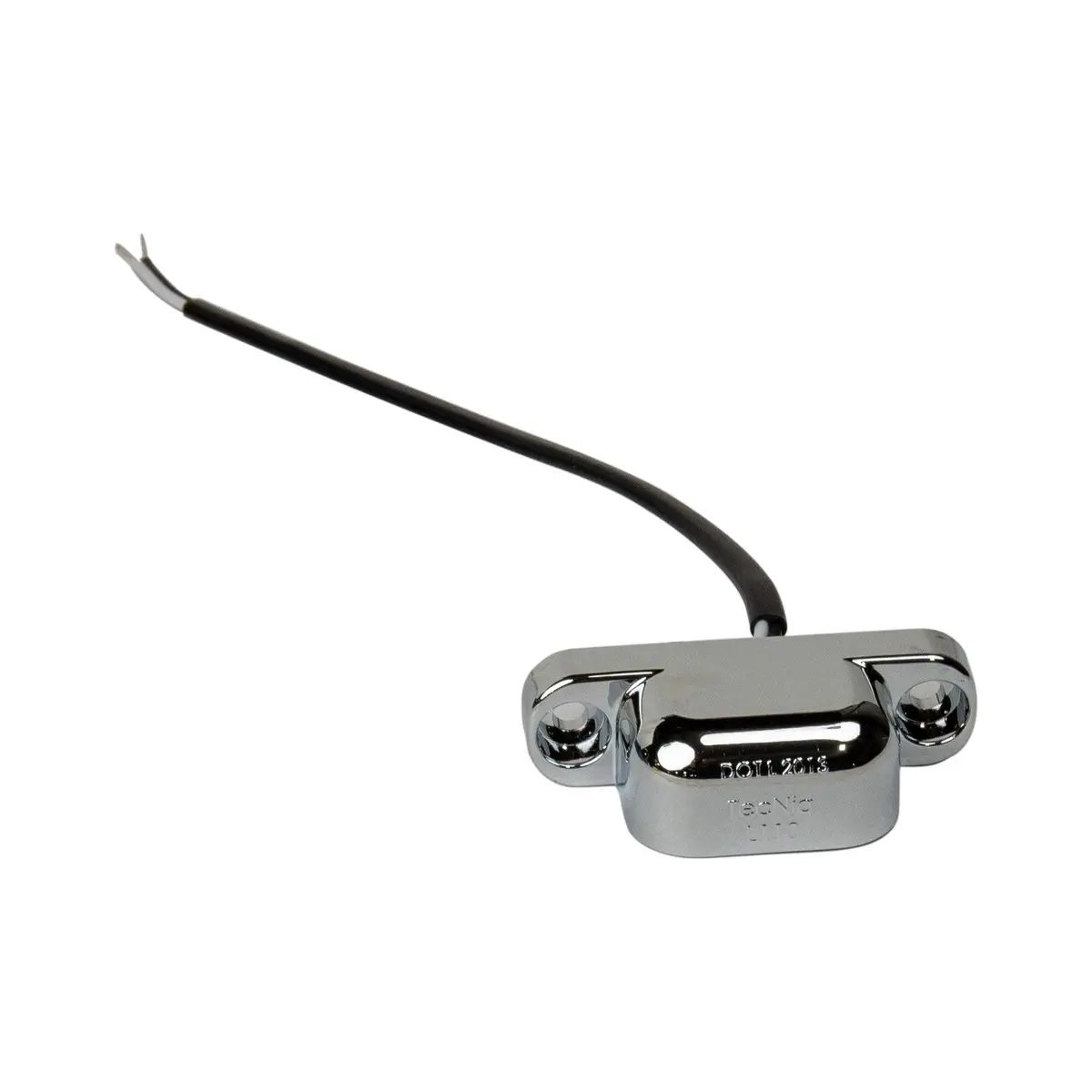

• 1 – License Plate Light
• 1 – 7 Way Plug
• 30′ (feet) – 6 Way Cable – 14 Gauge
• 1 – Breakaway Kit w/ switch
• Disclaimer: This wiring kit requires manual installation and is not a plug-and-play kit. Some components, such as the lights, may require cutting and splicing wires to ensure proper connections.

Features:

• Traditional style fits for gooseneck trailer applications
• TecSeal Urethane Potting – Guaranteed Circuit Board Protection
• IP68 Rated – Dust and water proof with hermetic seal
• Durable impact resistant lens
• Meets all FMVSS 108 requirements for narrow and wide vehicles
• Reliable performance over 100,000 hours
• Fits standard mounting as a direct replacement
• Oval Stop, Turn, Tail Lights:
• Smooth surface, great looking Stop/Tail/Turn Light
• Durable impact resistant lens
• Fit all industry standard 6″ oval applications
• Comes grommeted
• Can be mounted horizontal, vertical, or at any angle
• WIRE COLORS: White Ground, Red High/Turn, Black Low/Dim
• Side marker Lights:
• Standard non-polarized connector
• Energy efficient: Draws only 0.06A at 12VDC
• Wire Colors: Bidirectional positive and ground
• Light Bar:
• Reliable performance over 100,000 hours
• Can be mounted horizontal, vertical, or at any angle
• Wire colors: White Ground, Black Positive
• Breakaway Kit
• Built-in battery charger
• Weather-resistant battery box
• Sealed 12-volt rechargeable 5-amp-hour battery
• Charges at 1/2 volt below voltage supplied by towing vehicle
• Break-Away switch
• LED tester – shows if battery is good, bad or charging
• Mounting screws

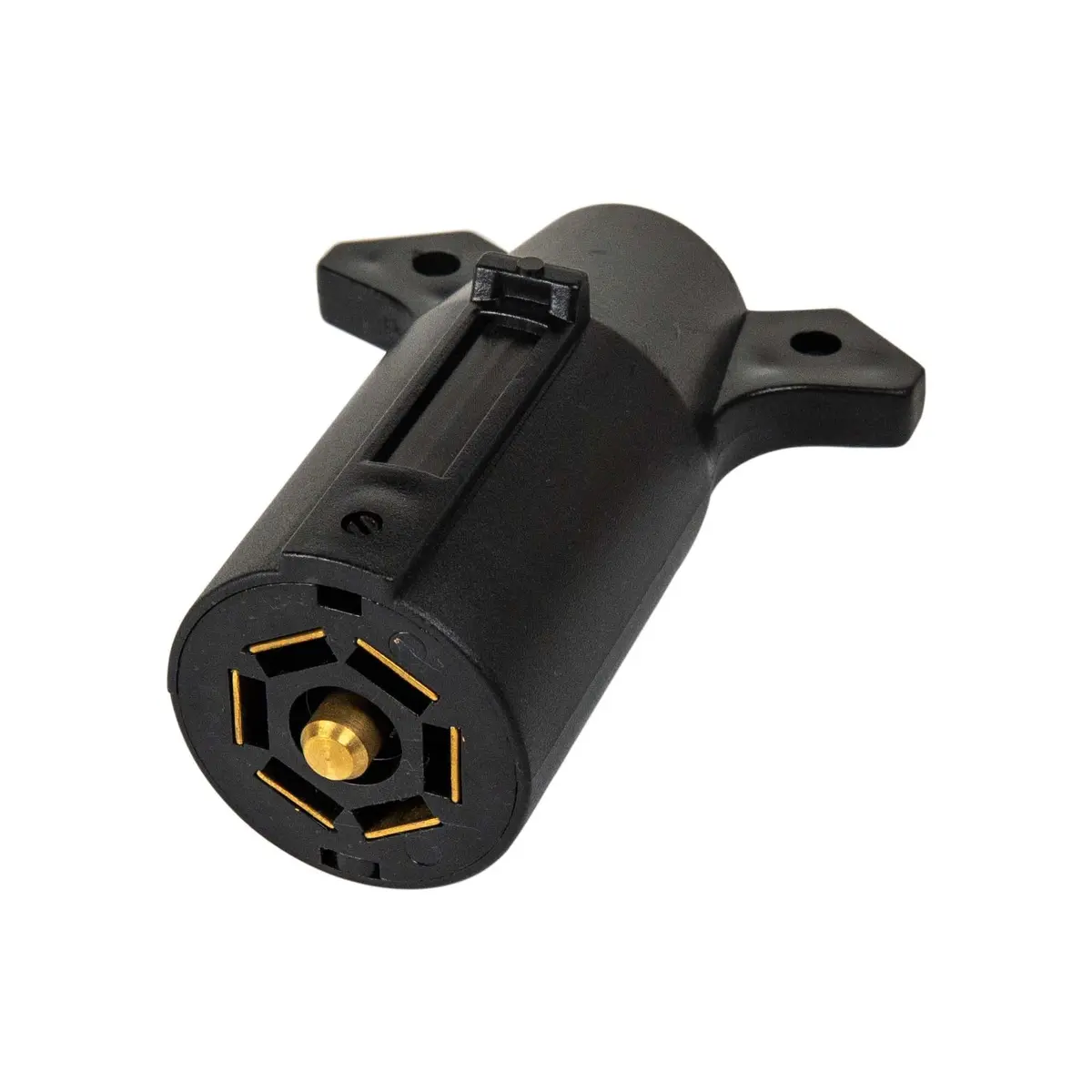

• 7 Way Plug Includes:
  • Male trailer end
  • 7 Way RV blade type
  • 12 volts, 30 amps
• 6 Way Cable – 14 Gauge Includes:
  • Black jacketed six strand cable
  • Six 14 gauge wires
  • Yellow, brown, red, black, blue, green
