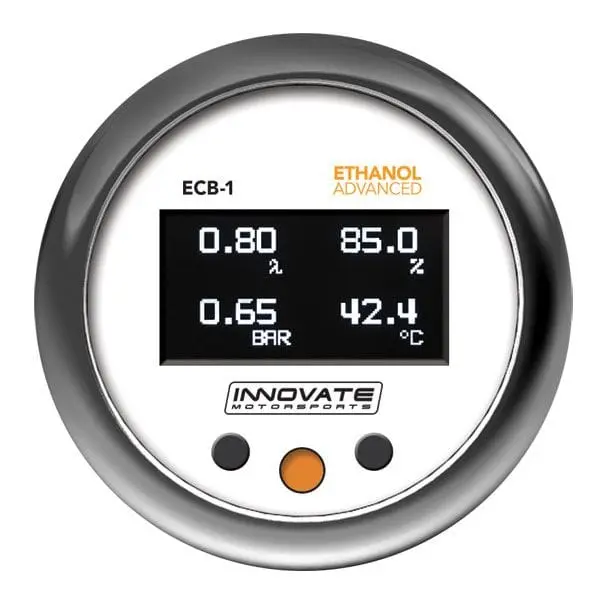

Ecb-1 Digital Instrument Gauge With Backlight – Im3906

Description

ECB-1 Digital Gauge

2-1/16″ Ethanol Content & Air Fuel Ratio

IM3906

3906

The Ethanol Advanced gauges combine our patented DirectDigital™ O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety and performance enthusiasts demand!Four-in-one , ethanol content percentage, fuel temperature, boost pressure, and wideband air/fuel ratio gaugeBoost Vision – a real-time calculated approximation of your ECU’s boost limit based on current ethanol content percentageOLED user configurable display (one, two, or four channel viewing modes)Ethanol %, Vacuum/Boost, Target Boost, Peak Boost, Fuel Temp, Air/Fuel ratio°F or °C, AFR or Lambda, inHG, PSI, kPa, or BAROn screen error reporting for ethanol content sensor and wideband O2Warning indicator LED when actual boost exceeds target boost (user programmable)Peak hold function4 BAR map sensor, pressure range -29 inHG to 43.5 PSI (-1 to 3 BAR)3-Configurable analog outputs for use with standalone and other programmable ECU’s as well as external data loggersEthanol Content: 0v = 0%, 5v = 100%Fuel Temp: 0v = -40 °F, 5v = 257 °F (-40-125°C)Wideba nd Air/Fuel Ratio: 0v = 7.35, 5v = 22.39 AFR (0.50-1.52 Lambda)Pressure readings can be adjusted for altitude differences52mm (2 1/6″) diameter gauge body with interchangeable faceplates and bezels: Black and silver bezel, black and white faceplates includedNo PC required for configurationBosch LSU 4.9 wideband O2 sensorPatented Direct Digital wideband sensor control, the only 100% digital wideband air/fuel ratio technology!Wideband O2 Compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)Ability to calibrate O2 sensor for maximum accuracyInnovate MTS serial in/out (for use with other Innovate & 3rd party MTS enabled devices to add additional logging channels)
