6-Leaf Slipper Spring Suspension & Hanger Kit for 4-Inch Axle Tubes – 9,000 lb Capacity

Description

When ordering raw materials, you can expect minor rust and oils that will need to be cleaned upon arrival to you.

Contents:

• (4) 6 Leaf 30″ x 2″ wide heavy duty slipper Spring for 9,000 lb Axles
• (8) 8″ Long U-bolts
• (4) U-bolt Tie Plates for 2″ Springs
• (16) 9/16″-18 Hex Nuts
• L=8″ A=4″ D=9/16″

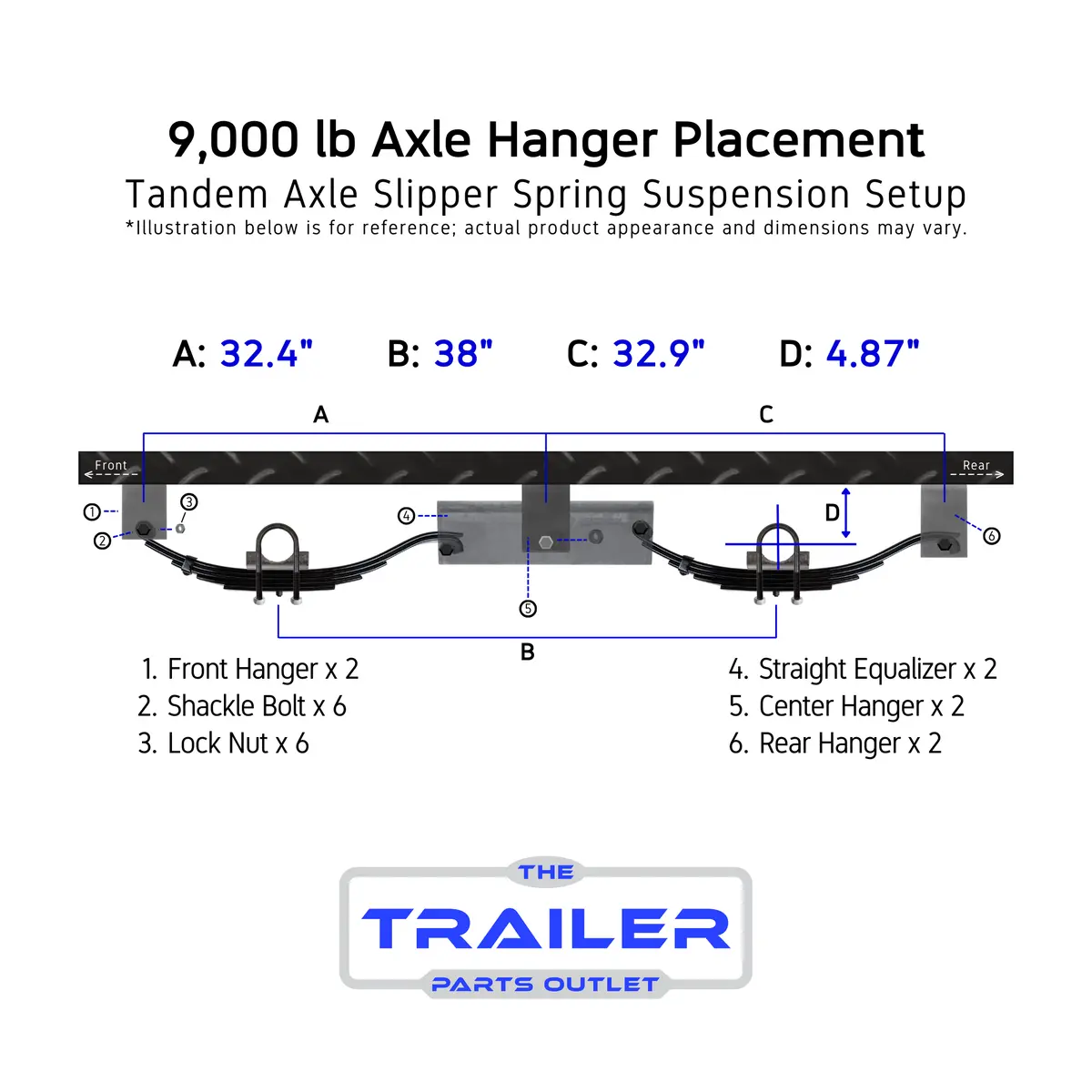

• 2) 6-1/2″ tall front hangers
• 2) 6-3/8″ tall center hangers
• 2) 7″ tall rear hangers
• 2) 14″ long straight equalizers
• 6) Shackle/Equalizer Bolts
• 6) Locknuts

Features:

• Spring Specs: Number of leaves: 6, 2″ Wide, 30″ Long (from center eye to end of hook), 5/8″ Eye Diameter, Nylon Bushing, 4500 lb capacity each, Axle capacity: 9000 lbs.
• This kit has everything you need to mount your trailer’s 4″ round axle.
• Spring seats required for mounting axle to leaf spring sold separately.
• This kit is for a Tandem axle 9K (18K total) setup
