3,500 lb Single-Axle Utility Trailer Plan: 6′ x 10′ Standard Build – 14-Step Construction Guide & Blueprint

Description

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Difficulty Level: Beginner (14 Easy How-to Steps)

Specs:

• Box Size: 6’x10′
• Gross Capacity: 3500 lbs
• Empty Weight: 1180 lbs
• Empty Tongue Weight: 85 Lbs
• Frame: Angle Steel
• Deck: Wood
• **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

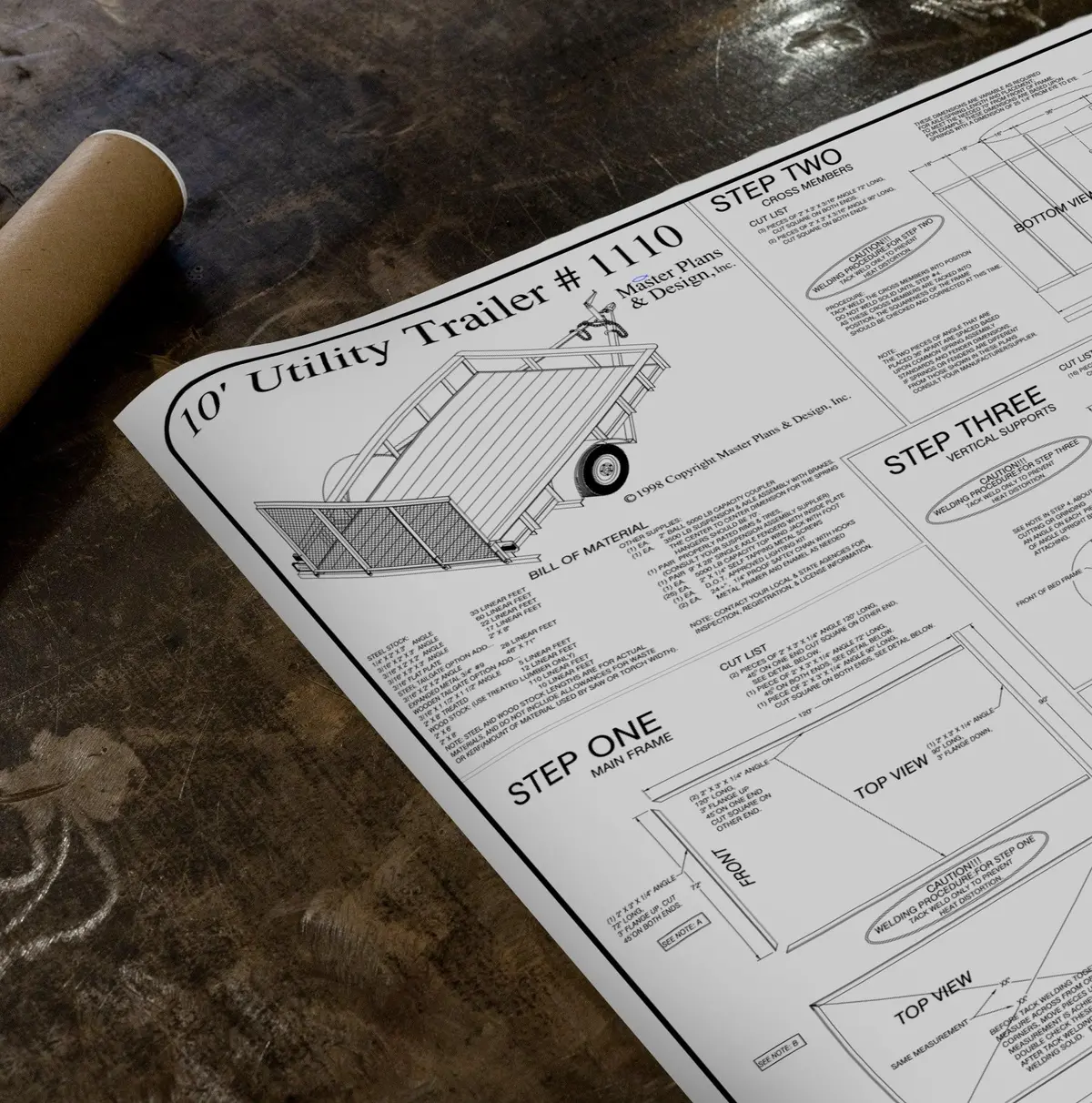

• Engineer Approved & Stamped Full Sized 24″ x 36″ Blueprints
• Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
• Detailed Cut List w/ Full Bill of Materials & Welding Tips
• Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

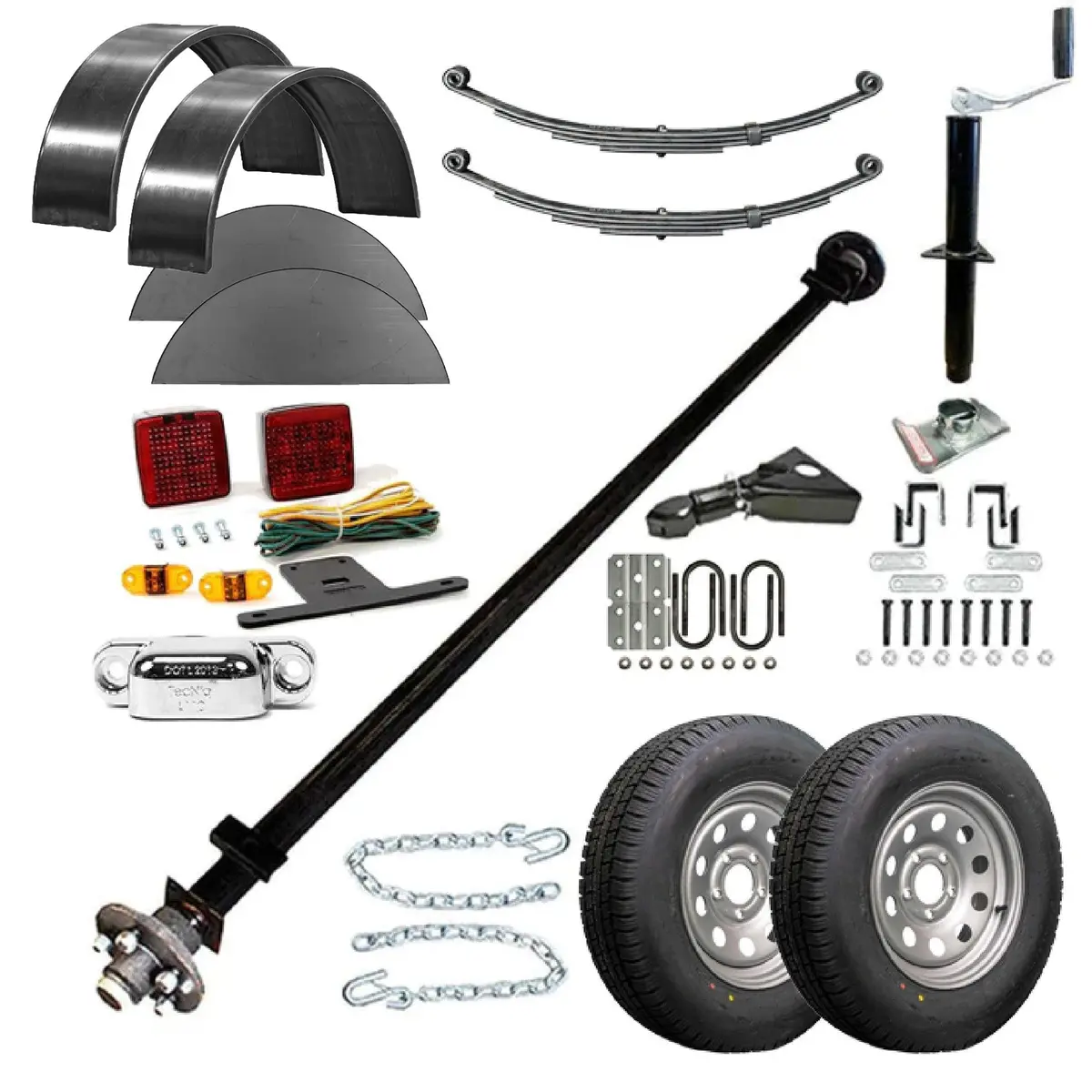

What’s Included with Trailer Kit:

• 1 – 3.5k Trailer Axle – 3500 lb Idler 5×4.5 lug (85/70)
• 1 – Trailer U-bolt kit for 3500 lb Axles
• 1 – Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
• 2 – 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
• 2 – 15″ 6 ply Bias TWA – ST 205/75 D15 5×4.5 TWA (Tire Wheel Assemblies) – Wheel Color: Silver/Gray Finish
• 2 – Single Axle 9×32 Smooth Steel Rolled Fender
• 2 – Single Axle 9×32 Smooth Steel Fender Back
• 1 – LED Light Kit
• 1 – License Plate Light-Rectangular
• 2 – Silver Trailer Safety Chain – 1/4×31″ (5k Capacity)
• 1 – 7K A-Frame Cast Trailer Coupler-7000 lb 2″ Bulldog Style
• 1 – A-Frame 5K Trailer Jack 5000 lb Top Wind
• 1 – Trailer Jack Footplate
• 1 – 1110 Utility Trailer Master Plan Blueprint

TK Trailer Kit – Master Plan 1110 – 6’x10 Single Axle 3.5K Utility Trailer (Original Series)
