3,500 lb Right-Hand Electric Brake Assembly – 10″×2.25″, Dexter-Compatible

Description

Specs:

• 10″ x 2.25″ Electric Brake Assembly
• 1 – Passenger Side Assembly
• 4 Bolt Brake Flange
• Rated at 3,500 lbs per pair

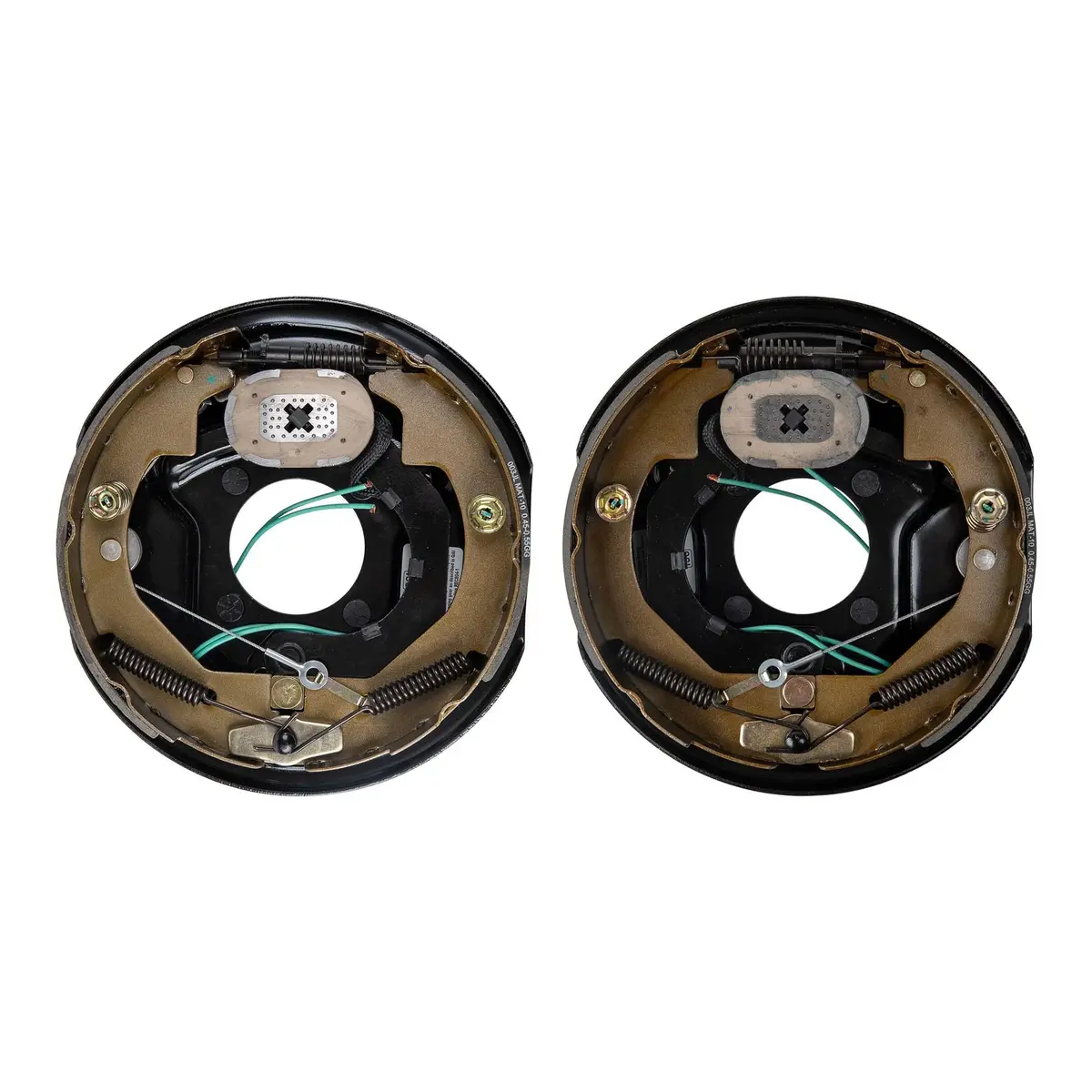

Pair Specs:

• 10″ x 2.25″ Electric Brake Assembly
• 1 – Driver Side Assembly
• 1 – Passenger Side Assembly
• 4 Bolt Brake Flange
• Rated at 3,500 lbs per pair

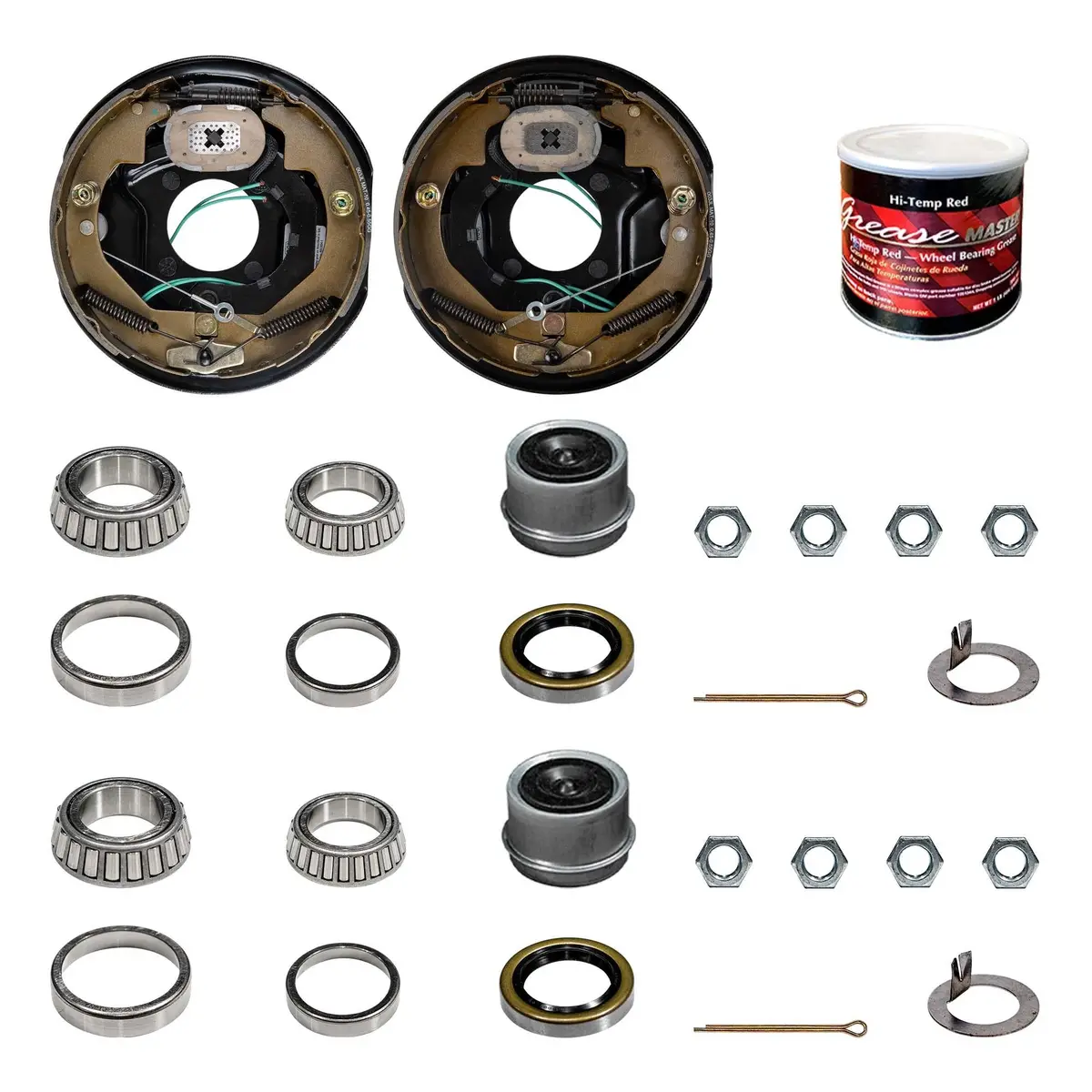

Kit Specs:

• 1 – Driver Side Assembly 10″ x 2.25″
• 1 – Passenger Side Assembly 10″ x 2.25″
• 1 – Grease Tub (1 lb)
• 2 – Cotter Pin
• 2 – Spindle Nut Retainer
• 2 – Grease Cap with Plug
• 2 – Grease Seal – 10-19 2.565″ O.D 1.719″ I.D
• 2 – L44649 Outer Bearing 1.063″ I.D
• 2 – L68149 Inner Bearing 1.378″ I.D
• 2 – L44610 Outer Race 1.98″ O.D
• 2 – L68111 Inner Race 2.362″ O.D
• 8 – Brake Mounting Nuts

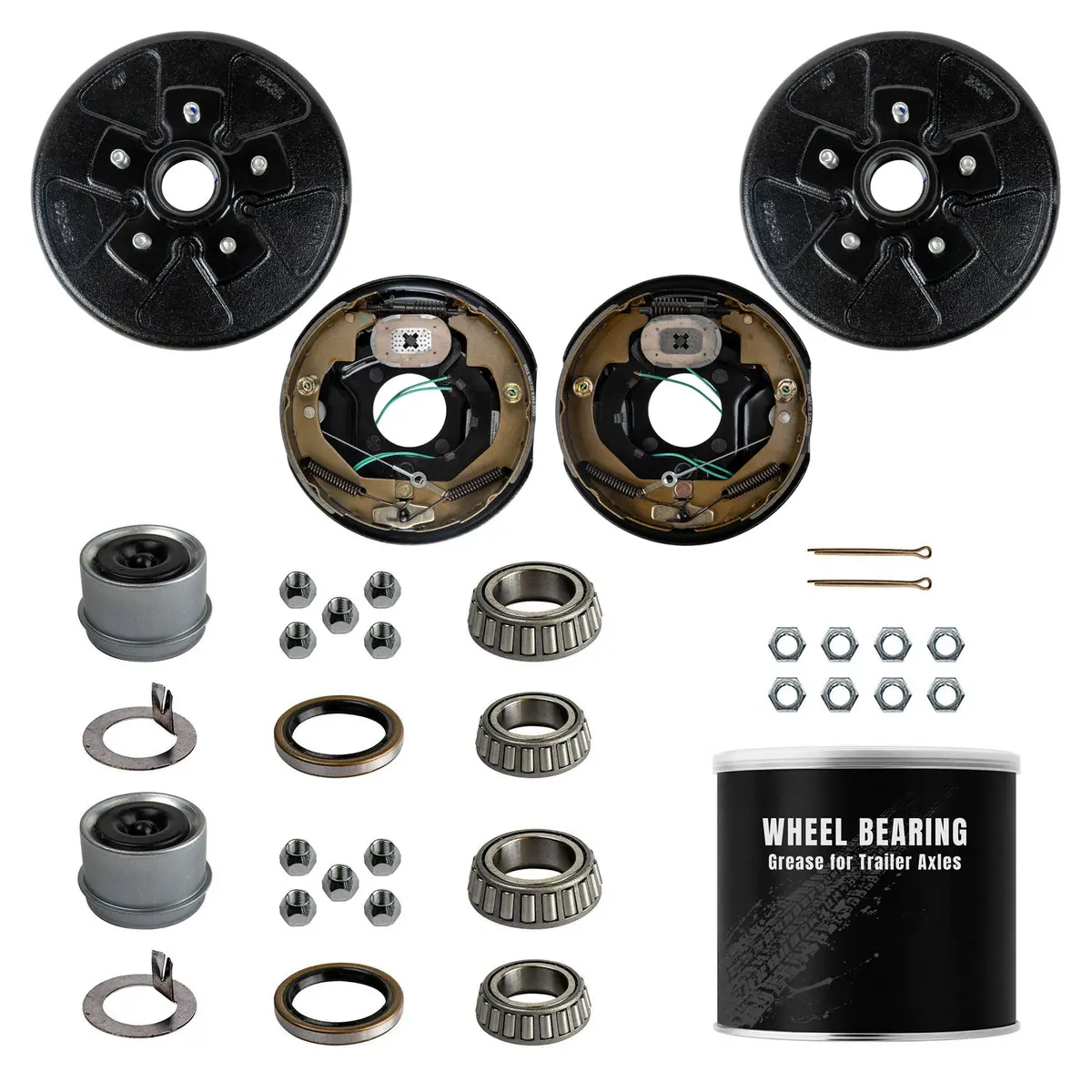

Package Specs:

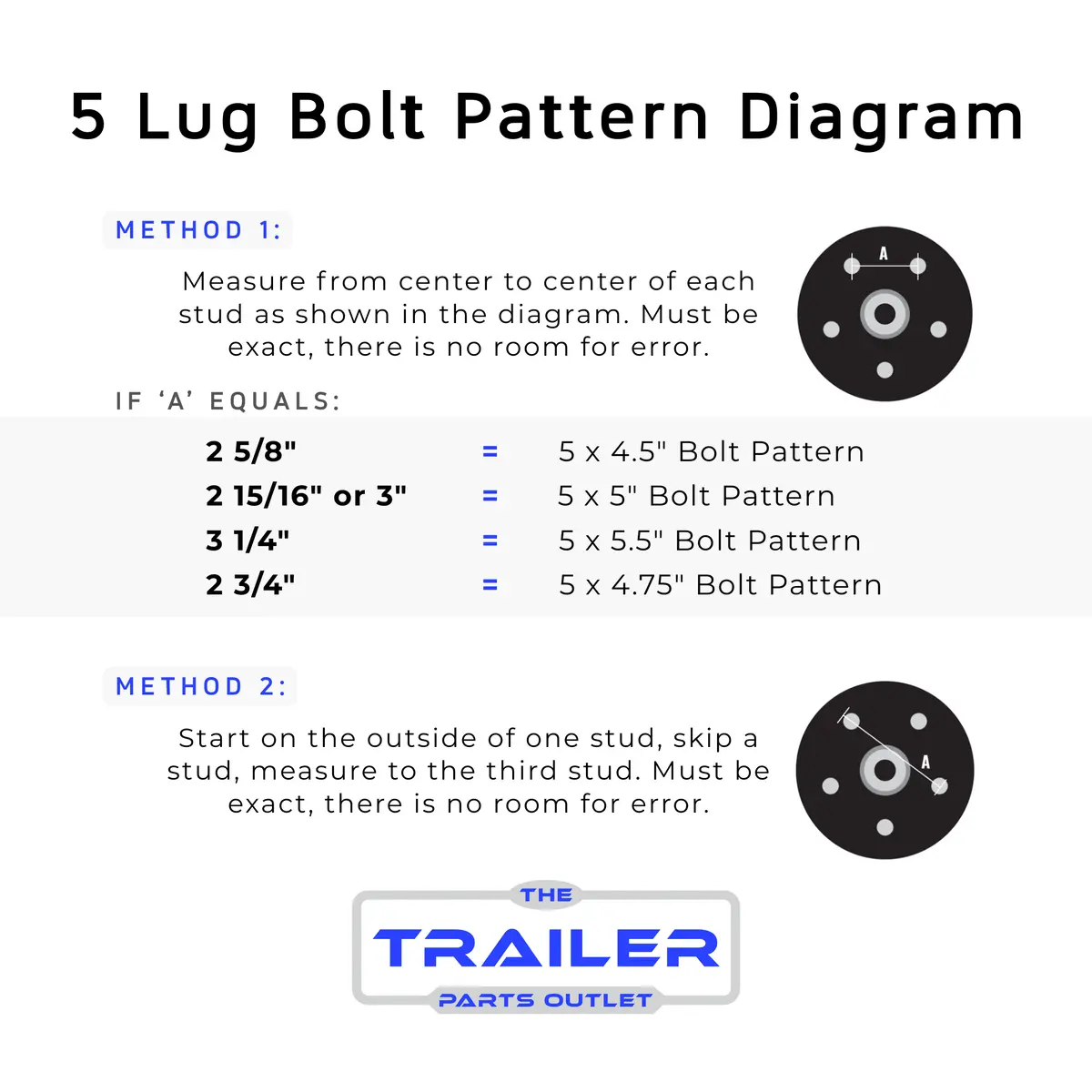

• 2 – 3.5k Hub and Drum 5×4.5 or 5×5 Bolt Pattern
• 2 – 3,500 lb Trailer Axle Bearing Kit
  • 2 – L68111 Inner Race 2.362″ OD (Pre-Pressed In Hub)
  • 2 – L44610 Outer Race 1.98″ OD (Pre-Pressed In Hub)
  • 2 – L44649 Outer Bearing 1.063″ ID
  • 2 – L68149 Inner Bearing 1.378″ ID
  • 2 – 10-19 3500 lb Grease Seal 1.719″ ID 2.565″ OD
  • 2 – 3,500 lb Grease Cap with Plug
  • 2 – Cotter Pin
  • 2 – Spindle Nut Retainer
• 1 – Left Hand (Driver Side) 10″ x 2.25″ Electric Brake Assembly – (Self-Adjusting)
• 1 – Right Hand (Passenger Side) 10″ x 2.25″ Electric Brake Assembly – (Self-Adjusting)
• 1 – Grease Tub (1 lb)
• 8 – Brake Mounting Nuts
• 10 – Cone Wheel Lug Nuts

Bulk Specs:

• 35 – Driver Side Assembly 10″ x 2.25″
• 35 – Passenger Side Assembly 10″ x 2.25″

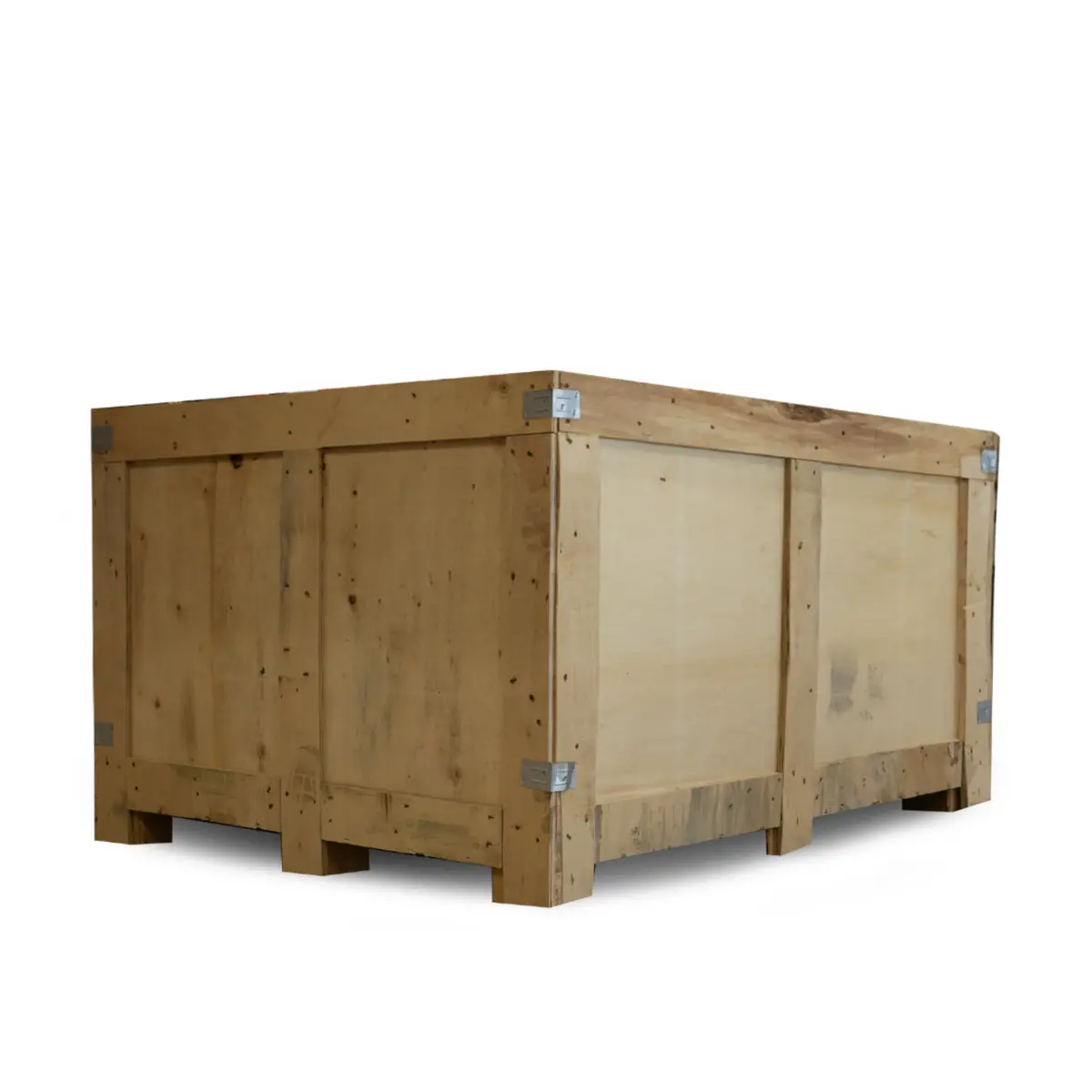

Crate Specs:

• 84 – Driver Side Assembly 10″ x 2.25″
• 84 – Passenger Side Assembly 10″ x 2.25″

Features:

• Adjustment ports in the rear of the assembly allow for easy adjustment.
• Whole brake assemblies make replacing brakes a breeze. Four bolts and two wires is all it takes for new brakes, sold separately.
• 1 Year Warranty

When you’re ready to replace the brakes on your trailer, it’s important to have access to quality parts. This 3.5K trailer axle brake assembly is designed for the passenger side of your trailer, and it’s compatible with your new or used Dexter axles. This assembly comes with a one-year warranty, and it’s extremely easy to install. With four bolts and two wires, you’ll have your new brakes in place, and your trailer will be ready to go. You’ll feel safer as you drive down the road, and you’ll be able to focus on making your business successful. Order your new 3.5K brake assembly today!

Fits Most 3.5K Axles (Dexter, Lippert, Rockwell American, TK, Texas Pride, Etc)
