20-Foot Tiny House Trailer Plan #20Thf – 10,400-Lb Capacity Design

Description

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

• Bed Size: 20′ Long x 96′ Wide
• Gross Capacity: 7,000 lb. or 10,400 lb. Capacity
• Empty Weight: 2078 lbs
• Empty Tongue Weight: 290 lbs
• Frame: Rectangular & Square Tubing & Angle
• Deck: Platform for Tiny House Construction
• **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

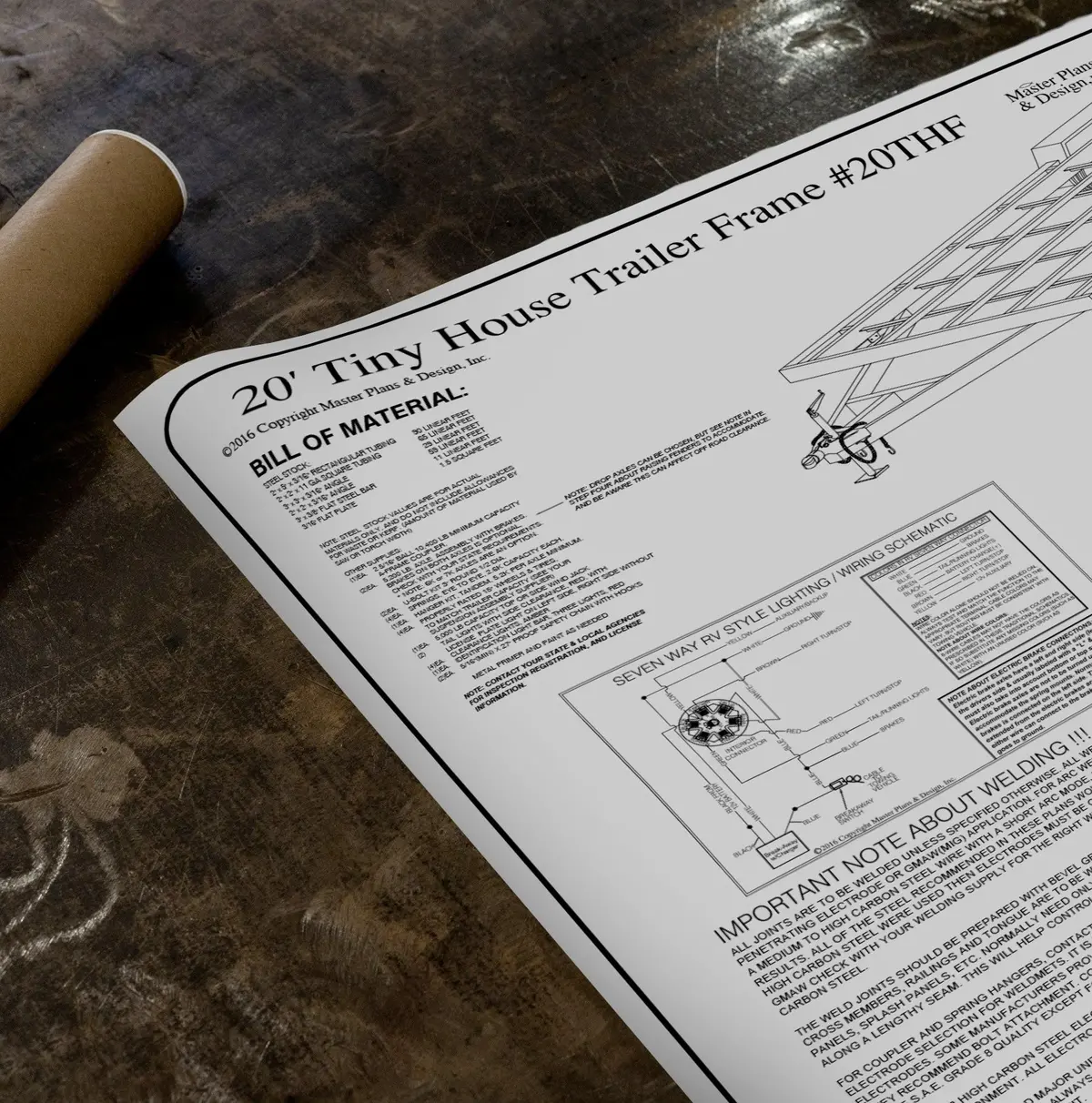

• Engineer Approved & Stamped Full Sized 24″ x 36″ Blueprints
• Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
• Detailed Cut List w/ Full Bill of Materials & Welding Tips
• Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

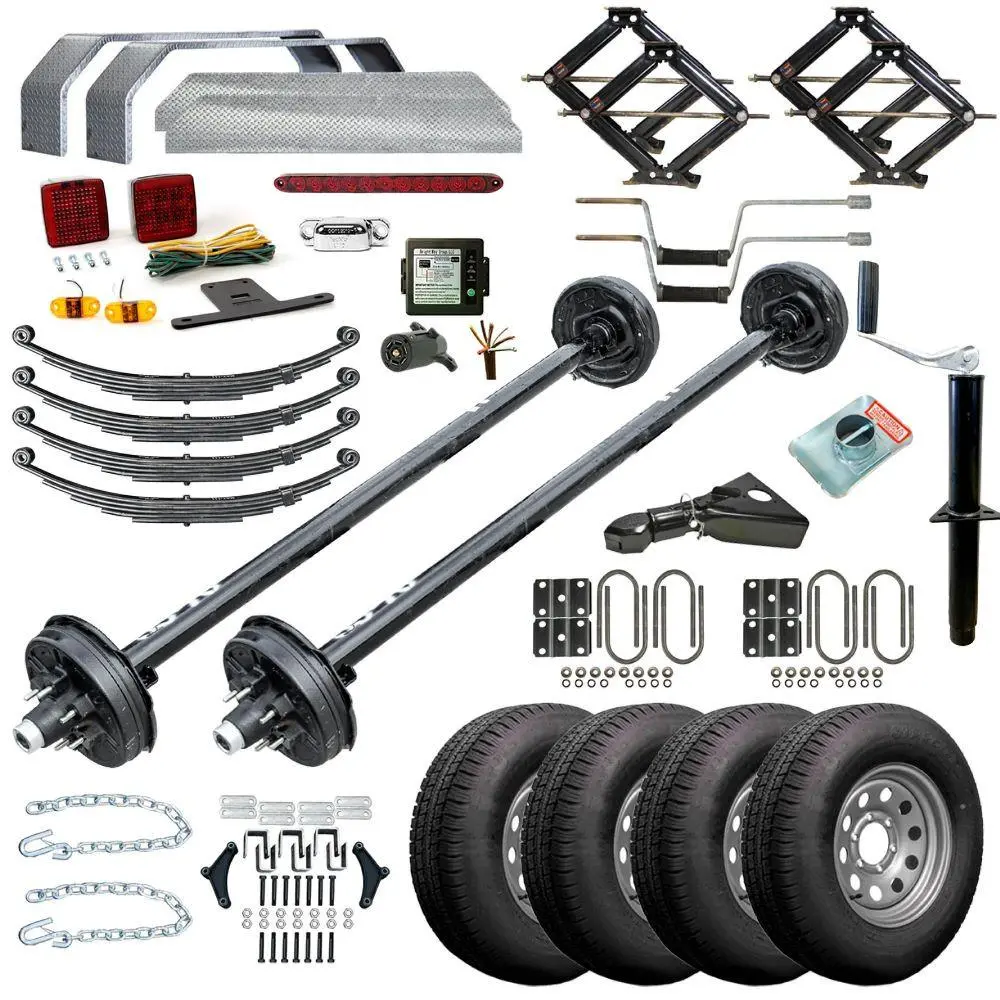

What’s Included with Trailer Kit:

• 2 – 5.2k Trailer Axle – 5000 5200 lb Electric Brake 6 lug (95/80)
• 4 – 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• 2 – Trailer U-bolt kit for 5200 – 7000 lb Axles (1/2″Diameter)
• 1 – Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
• 4 – 15″ 10 ply Radial TWA – ST 225/75R15 6×5.5 TWA (Tire Wheel Assemblies) – Wheel Color: Silver/Gray Finish
• 1 – Silver Safety Chain-5/16 x 30″-Forged (7.6k Capacity)
• 4 – Trailer Tough 5k Stabilizer Jack – 5000 lb
• 1 – LED Light Kit
• 1 – License Plate Light-Rectangular
• 1 – License Plate Bracket
• 1 – Sealed ID Light Bar – 3 Red Lights
• 1 – 7 Way Plug
• 3 – 6 way cable 14 gauge (per 10 foot)
• 1 – 12 Volt Trailer Breakaway Kit
• 1 – 12.5K A-Frame Cast Coupler-12.5k 2 5/16″ Bulldog Style
• 1 – A-Frame 5k Trailer Jack 5000 lb Top Wind
• 1 – Trailer Jack Footplate
• 2 – 10×72 Diamond Plate Double Broke Tandem Fenders
• 2 – 10×72 Double Broke Tread Plate Fender Backs
• 1 – 20THF Tiny House Trailer Master Plan Blueprint

TK Trailer Kit – Master Plan 20THF – Tiny House Trailer (Original Series)
