10,000 lb Trailer Axle Hub Assembly – 8-Lug, Modern New-Style Design

Description

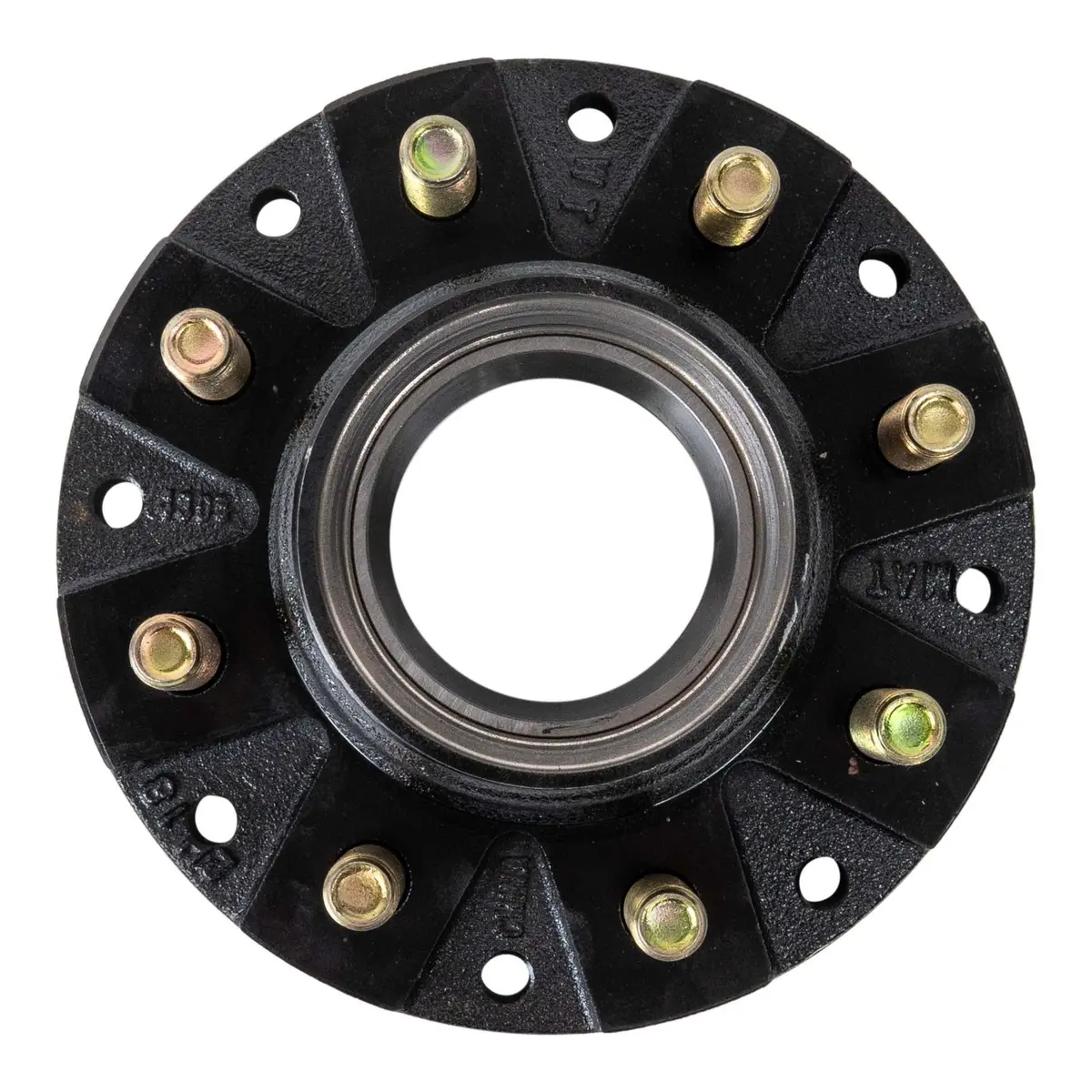

General Duty Hub Only Specs:

• General Duty Hub Only
• 8 on 6.5″ Bolt Pattern
• 1 – 25520 Outer Race (Already Pressed In) 3.265″ OD
• 1 – 382A Inner Race (Already Pressed In) 3.813″ OD
• Uses 25580 (1.75″ ID) and 387A (1.25″ OD) bearings (sold separately)
• 5,000lb Capacity Per Hub
• Drum sold separately
• 5/8 Wheel Studs
• This hub is NOT COMPATIBLE with Texas Pride or Rockwell Axles

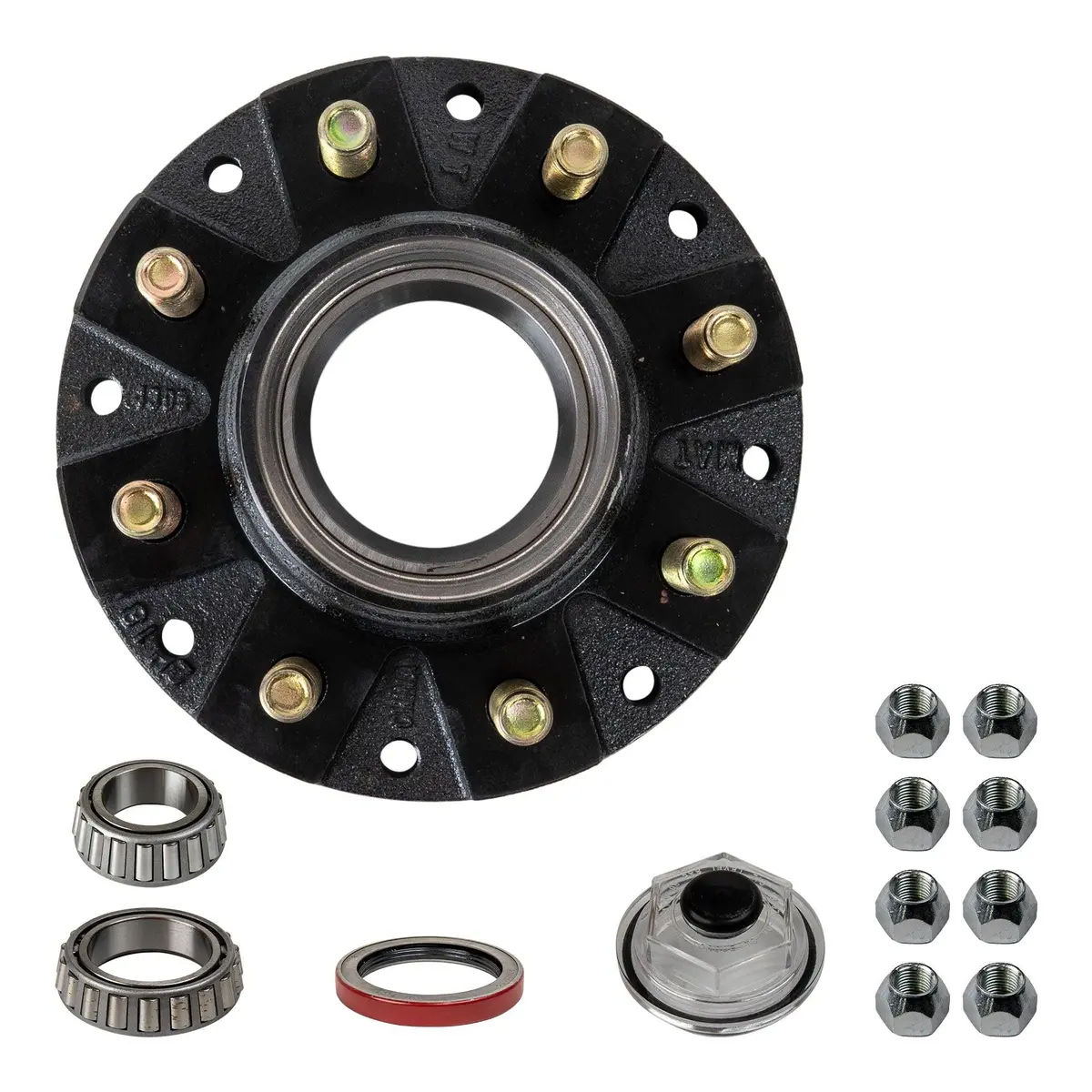

General Duty Hub Assembly Specs:

• General Duty Hub
• 8 on 6.5″ Bolt Pattern
• 1 – 25520 Outer Race (Already Pressed In) 3.265″ OD
• 1 – 382A Inner Race (Already Pressed In) 3.813″ OD
• 1 – 25580 Outer Bearing 1.75″ ID
• 1 – 387A Inner Bearing 2.250 OD
• 1 – 10-51 Oil Seal 2.875″ ID/3.880″ OD
• 1 – 21-88 Oil Cap
• 8 – Cone Wheel Lug Nuts
• 5/8″ Wheel Studs

Features:

• Hub kit with 8 on 6.5″ Bolt Pattern For 10,000 lb General Duty Axles Manufactured After 05/2013
• The races are pre-pressed for your convenience
• This hub is designed for use with 10K General Duty axle spindles
• Each hub has a capacity if 5,000lbs
• Spindle nut, washer and drum sold separately
• This hub is NOT COMPATIBLE with Texas Pride or Rockwell Axles
