10,000 lb Left-Hand Electric Brake Assembly – 12.25″ x 3.375″ General-Duty Trailer Axle Brake (Driver Side)

Description

Single Specs:

• 12.25″ x 3.375″ Electric Brake Assembly
• 1 – Driver Side Assembly
• 7 Bolt Brake Flange
• Rated at 10,000 lbs per pair
• This brake is NOT COMPATIBLE with Rockwell Axles

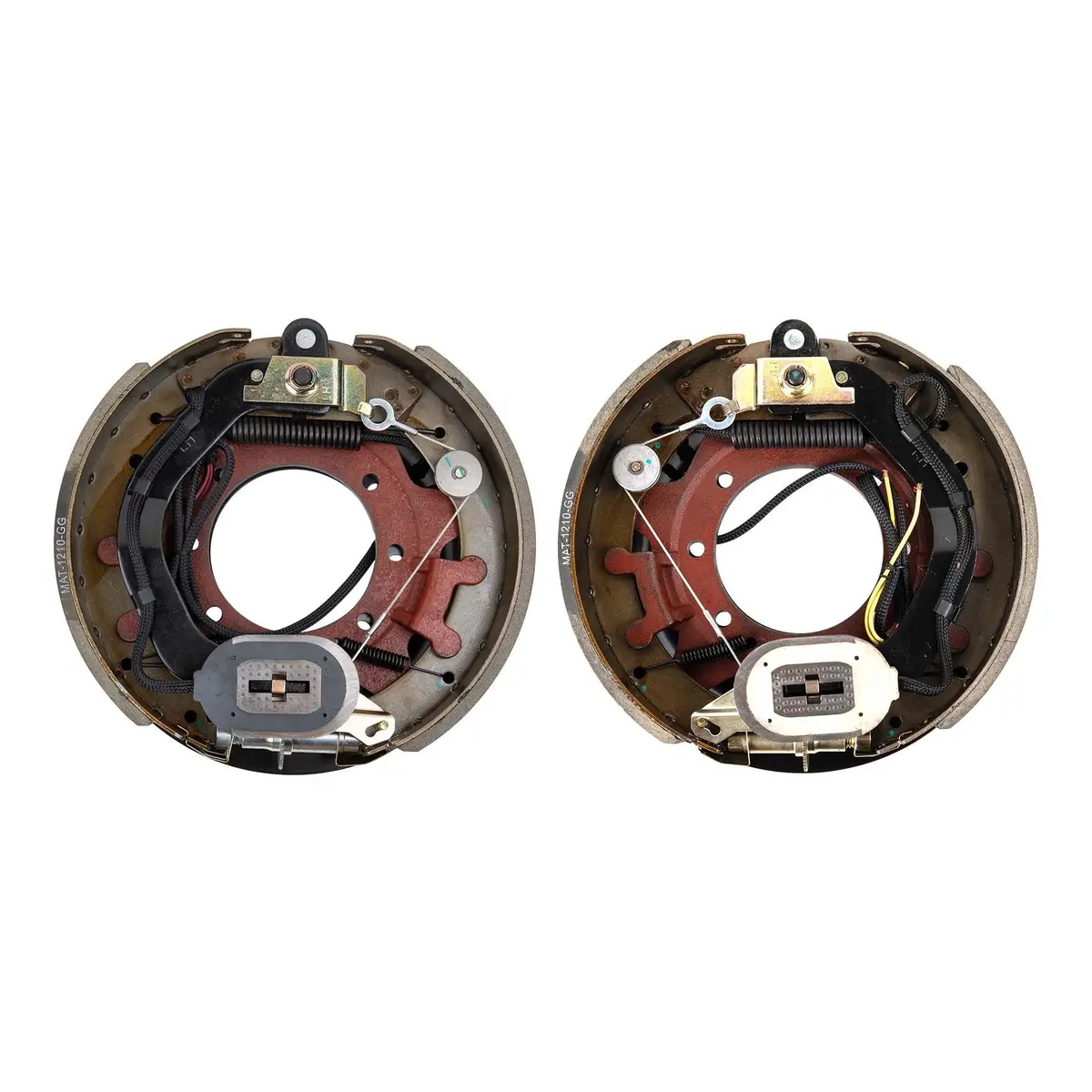

Pair Specs:

• 12.25″ x 3.375″ Electric Brake Assembly
• 1 – Driver Side Assembly
• 1 – Passenger Side Assembly
• 7 Bolt Brake Flange
• Rated at 10,000 lbs per pair

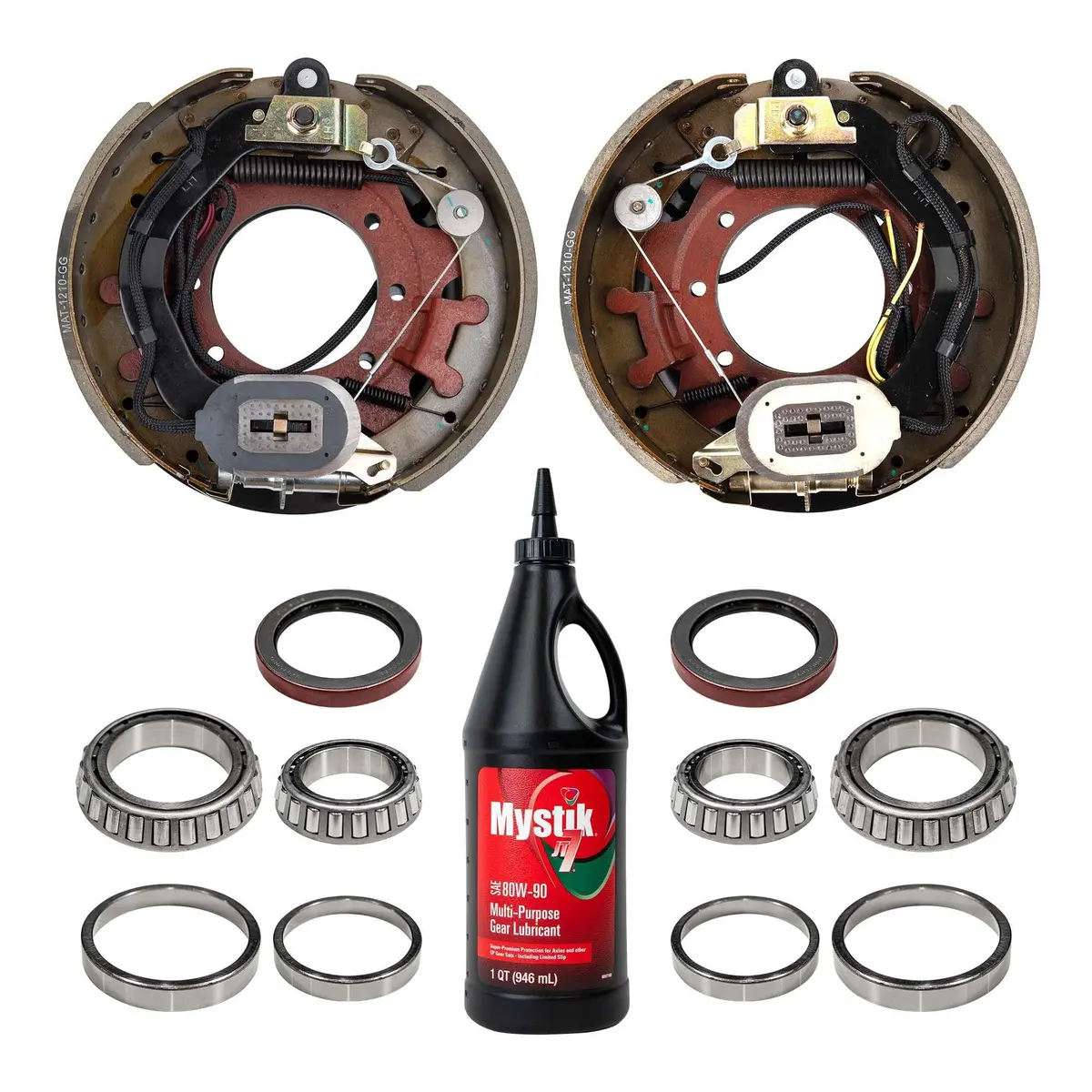

Kit Specs:

• 1 – Driver Side Assembly 12.25″ x 3.375″
• 1 – Passenger Side Assembly 12.25″ x 3.375″
• 1 – One Quart Jug of Axle Oil
• 2 – Unitized Oil Seal – 010-051-00 3.880″ O.D 2.875″ I.D
• 2 – 25580 Outer Bearing 1.750″ I.D
• 2 – 387A Inner Bearing 2.250″ I.D
• 2 – 25520 Outer Race 3.265″ O.D
• 2 – 382A Inner Race 3.813″ O.D

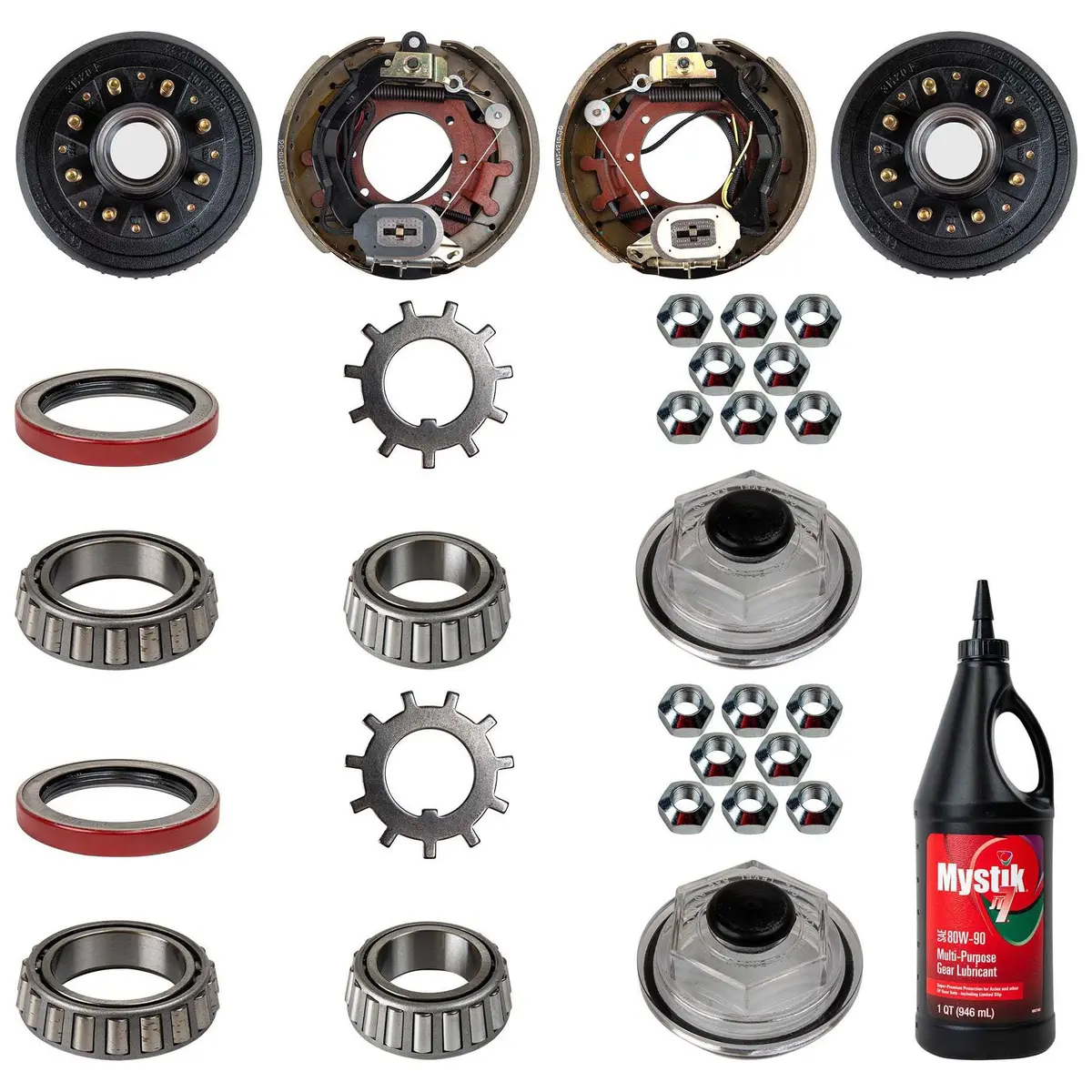

Package Specs: (New Style 10k)

• 2 – 9-10K Trailer Axle Hub/Drum 8×6.5 – Dexter General Duty (New Style)
• 2 – 10k (10,000 lb Capacity) Bearing Kit
  • 2 – 25580 Outer Bearing 1.750″ I.D
  • 2 – 387A Inner Bearing 2.250″ I.D
  • 2 – 25520 Outer Race 3.265″ O.D (Pre-Pressed In Hub)
  • 2 – 382A Inner Race 3.813″ O.D (Pre-Pressed In Hub)
  • 2 – Unitized Oil Seal-010-051-00 3.880″ O.D 2.875″ I.D
• 2 – Oil Bath Cap and Plug 21-88
• 16 – Cone Wheel Lug Nuts
• 2 – 9-10K GD Tang Washer – 1.50″ I.D. x 0.60″
• 1 – One Quart Jug of Axle Oil (Oil Brand May Vary)
• 1 – 9-10k General Duty Trailer Axle Brake – 12.25″ x 3.375″ – Left Hand (Driver Side)
• 1 – 9-10k General Duty Trailer Axle Brake – 12.25″ x 3.375″ – Right Hand (Passenger Side)
• This Hub/Drum replaces Dexter single piece 8-415 (axles built between 7/2009 and 5/2013)

Bulk Specs:

• 20 – Driver Side Assembly 12.25″ x 3.375″
• 20 – Passenger Side Assembly 12.25″ x 3.375″

Crate Specs:

• 40 – Driver Side Assembly 12.25″ x 3.375″
• 40 – Passenger Side Assembly 12.25″ x 3.375″

Features:

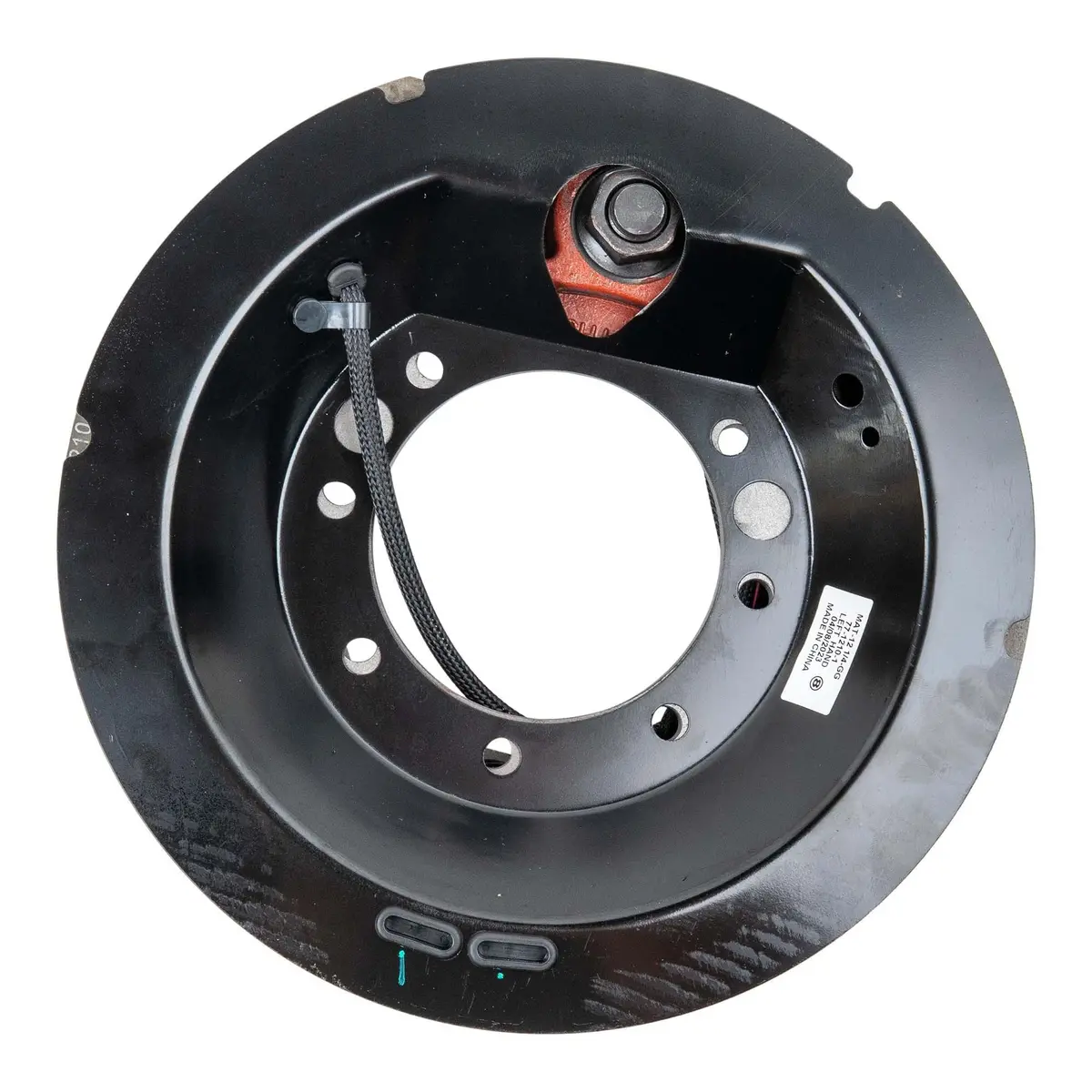

• Adjustment ports in the rear of the assembly allow for easy adjustment.
• Whole brake assemblies make replacing brakes a breeze. Seven bolts and two wires is all it takes for new brakes, sold separately.
• 1 Year Warranty
• This brake is NOT COMPATIBLE with Rockwell Axles

This 10K general duty trailer axle brake assembly is designed for the left-hand, or driver side, of your trailer. It will fit most 10K axles from Dexter, TK, Texas Pride, and other manufacturers, and it makes replacing your brake assemblies fast and easy. It will make towing your trailer easier than ever, and you won’t have to worry about your trailer not stopping when the lead vehicle does. If you need to repair a trailer in your fleet, then let The Trailer Parts Outlet help you find the right options. Order your new 10K trailer axle brake assembly from our online store today!

Note: New brakes need to be burnished by braking 20-30 times at an approximate speed of 40 mph slowing the vehicle to 20 mph. Allow brakes to cool in between brake applications.
