10,000 lb Electric Brake Trailer Axle – 8-Lug, Grease-Bath Assembly

Description

Check out our 10,000 lb Electric Brake Grease Bath Trailer Axle. The Trailer Parts Outlet offers Superior Service and Faster Solutions. We strive to get you back on the Road FAST with fast shipping and easy online ordering.

Trailer Axle Specs:

• 10,000 lb TK Trailer Axle (10K Capacity)
• 8 Lug
• Tube: 5″
• Weight: 435 lbs
• Grease Bath
• This axle is not ABS compatible

Trailer Axle Internal Components:

• 9k-10k (9000-10,000 lb Capacity) Bearing Kit (2 sets) – each set includes:
• Outer Bearing-25580 1.750 I.D
• Inner Bearing-387A 2.250 I.D
• Outer Race-25520 3.265 O.D
• Inner Race-382A 3.813 O.D
• Unitized Grease Seal-010-051-00 3.880 O.D 2.875 I.D
• Screw on Grease Cap

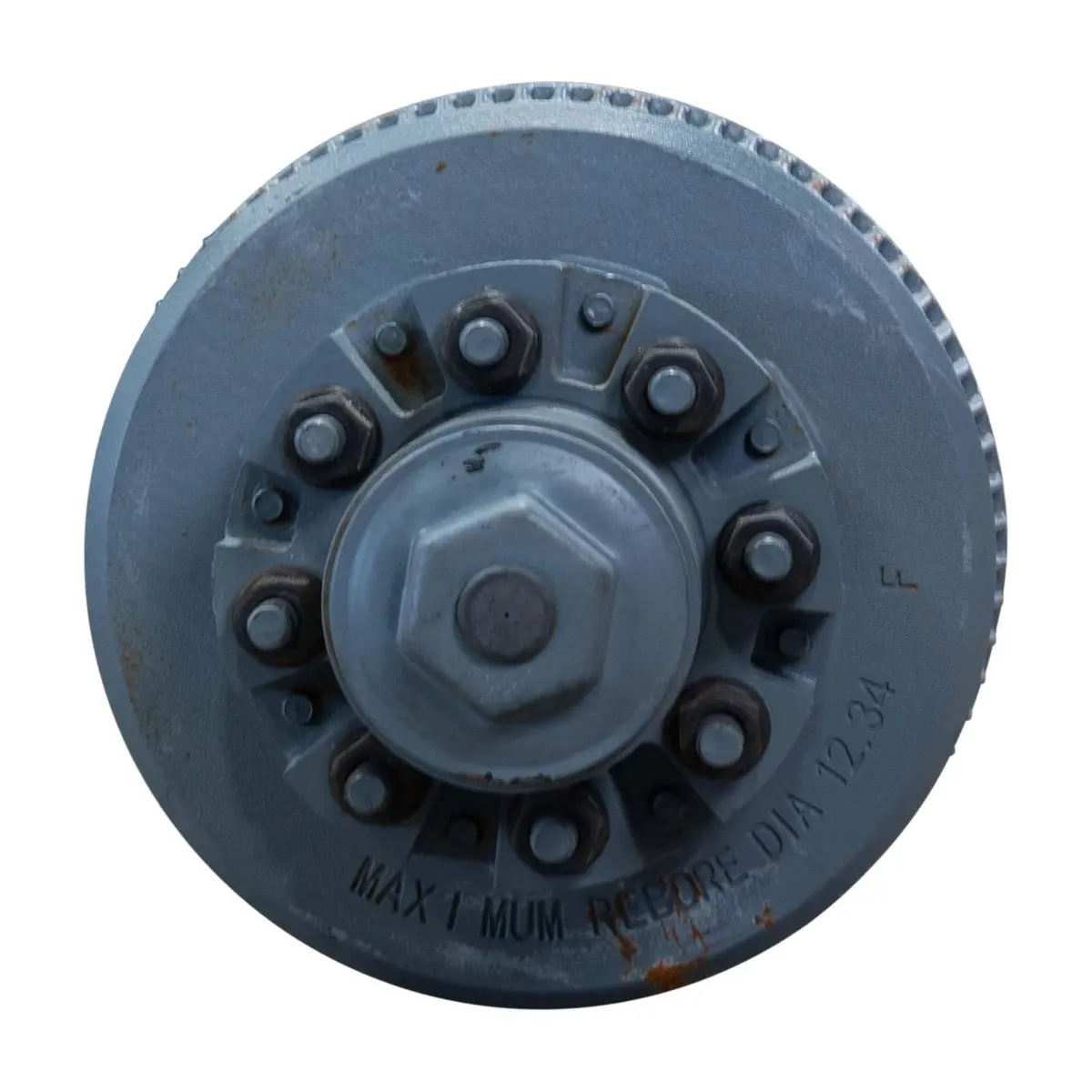

• 10k Trailer Axle Drum – Old Style
• 10k Trailer Axle Studs – 5/8″
• 10k Trailer Axle Brake – 12 1/4″ x 3 3/8″ Electric

Trailer Axle Features:

• Axles come fully assembled with high temp grease
• Underslung – Axle is welded with spring seats on the bottom
  • Allows for lower ride height
• Designed for replacement of Flatbed Trailer Axles, Car Hauler Trailer Axles, Gooseneck Trailer Axles, Lawn & Landscape Trailer Axles, Dump Trailer Axles & More
• High Strength Straight Steel 5″ Axle Tube Construction

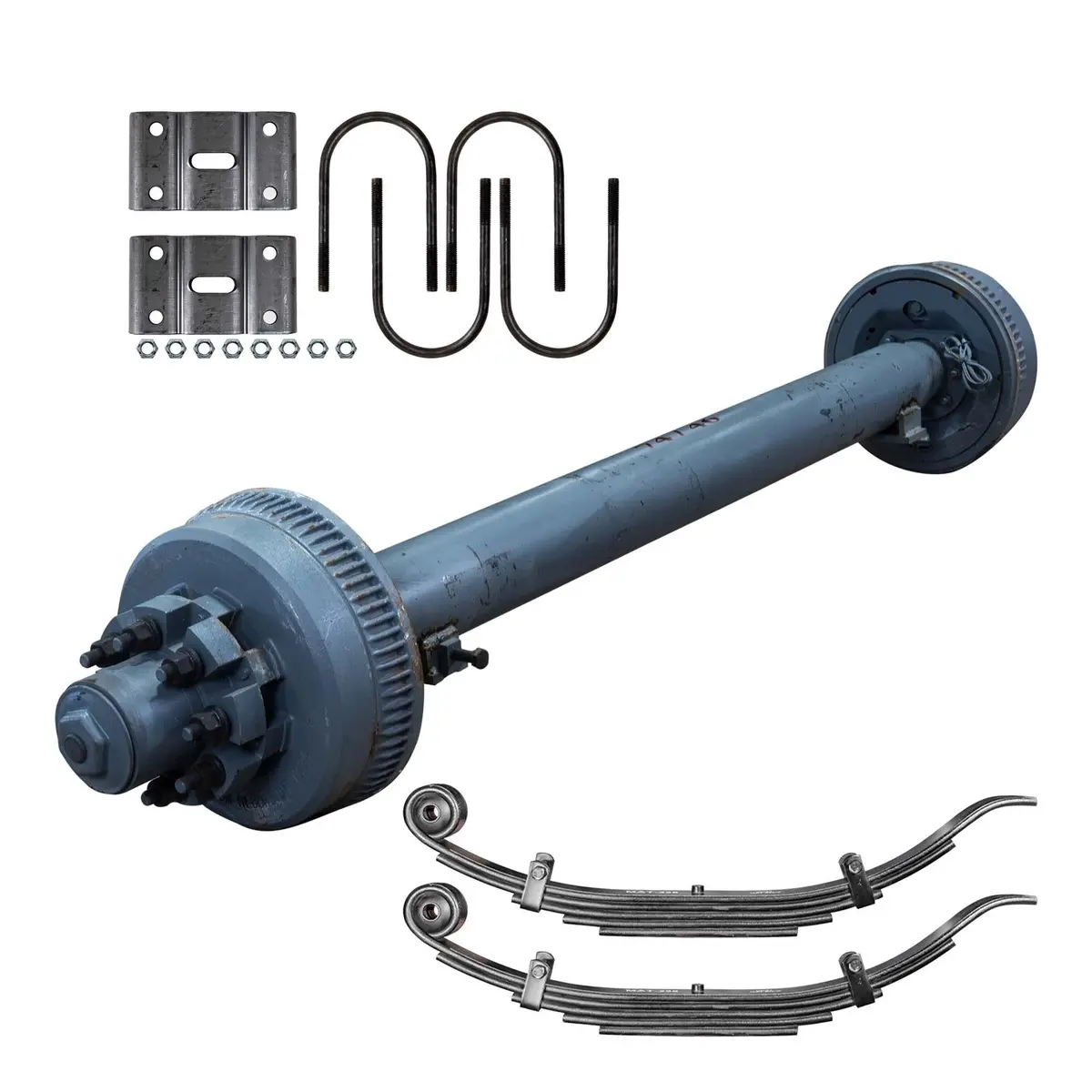

What’s Included in the 10,000 lb Axle Kit Option:

• 1 – TK 10,000 lb Electric Brake Trailer Axles Grease Bath
• 2 – 5 Leaf 30 1/2″ x 2.5″ Wide Trailer Axle Slipper Spring for 10,000 lb Trailer Axles
• 1- 10,000 lb Capacity U-Bolt Kit

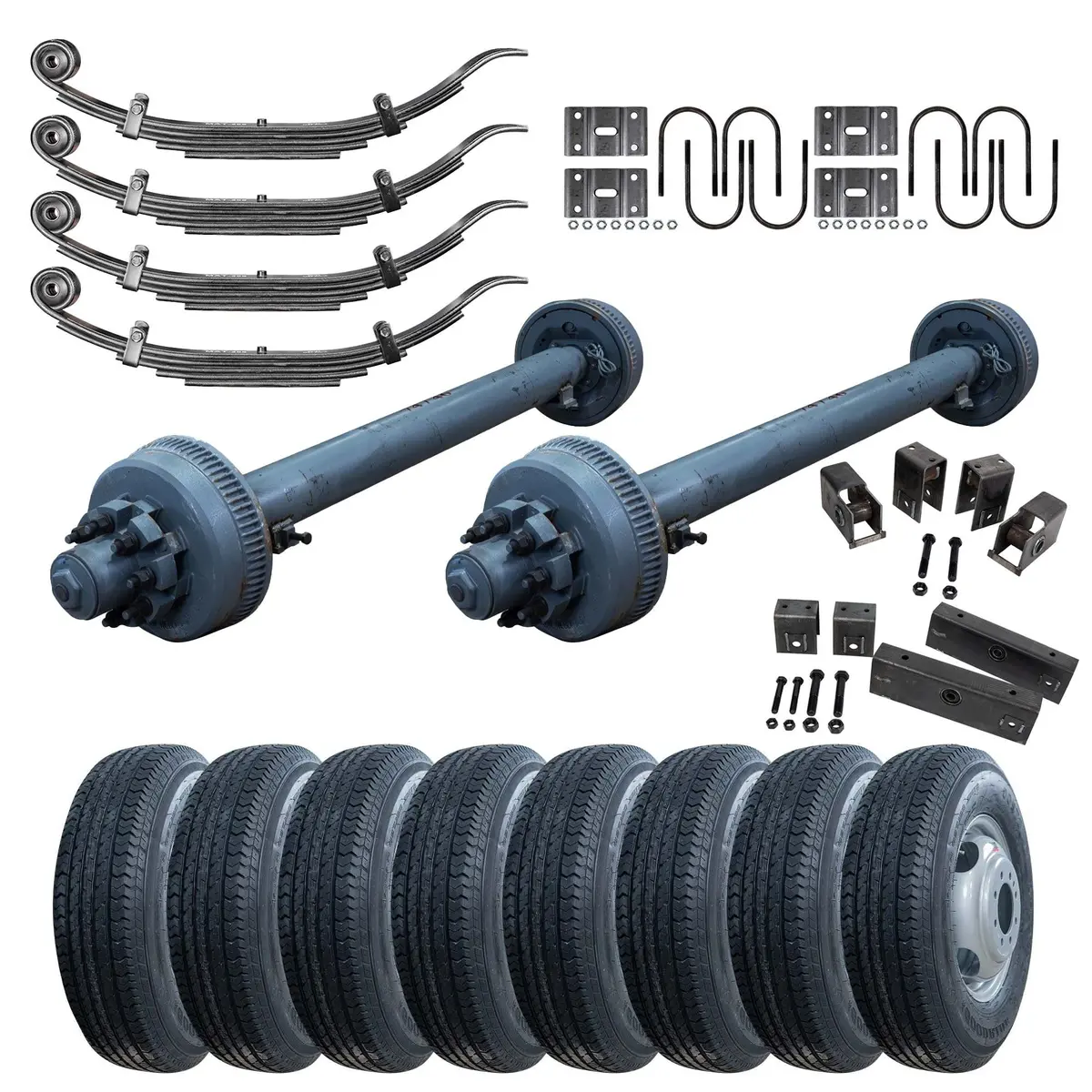

What’s Included in the 10,000 lb Trailer Kit Option:

• 2 – TK 10,000 lb Electric Brake Trailer Axles Grease Bath
• 4 – 5 Leaf 30 1/2″ x 2.5″ Wide Trailer Axle Slipper Spring for 10,000 lb Trailer Axles
• 2 – 10,000 lb Capacity U-Bolt Kit
• 1 – Slipper Tandem Hanger Kit
• 8 – 16″ 235/80 R16 10 ply Radial Dual Tire Wheel Assemblies – Wheel Color: Silver/Gray Finish

Benefits of a Grease Bath Trailer Axle

1. Simplicity: Grease bath axles are simpler in design compared to oil bath axles, which can result in easier maintenance and repair.
2. Cost-Effective: Grease is generally less expensive than oil, making grease bath axles more cost-effective in terms of lubrication.
3. Durability: Grease can provide adequate lubrication and protection against wear and tear, contributing to the durability of the axle components.
4. Sealed System: The sealed housing of a grease bath axle helps prevent contaminants from entering, reducing the risk of damage to the bearings and other components.
5. Low Maintenance: Grease bath axles typically require less frequent maintenance compared to oil bath axles, reducing downtime and maintenance costs.
6. Environmental Friendliness: Grease is less likely to leak and can be disposed of more easily and safely than oil, making it a more environmentally friendly option.

If you have any questions, please call (936) 289-3191 and our trailer parts experts will be more than happy to assist you.
